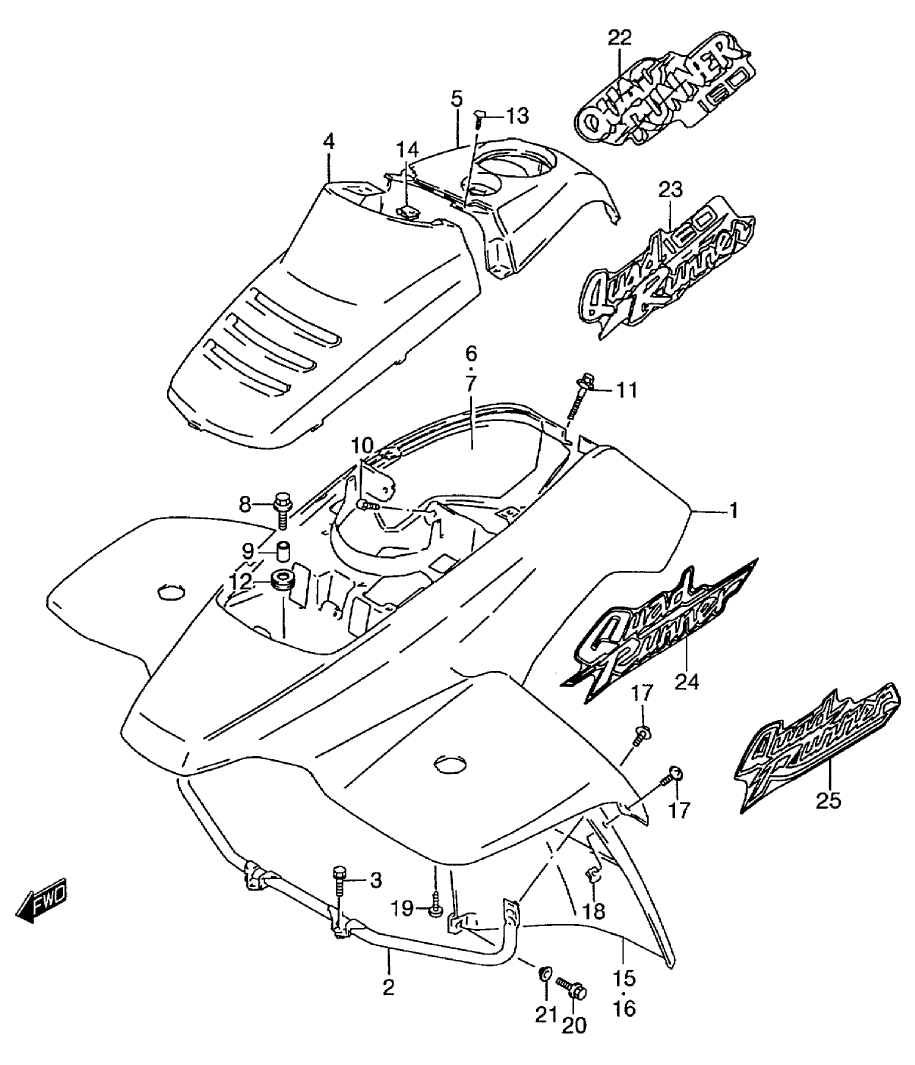

FENDER - FRONT для Suzuki LT-F160Y QUADRUNNER - 2000 года выпуска
-
№АртикулНазвание
-
153111-02C11-1LH FENDER, FRONT CENTER (BLUE)FENDER, FRONT CENTER (BLUE)
-
253210-02C00 BRACE, FRONT FENDERBRACE, FRONT FENDER
-
301570-06123 BOLT, BRACEBOLT, BRACE
-
453118-02C00-0LP FENDER, CENTER FRONT (CHARCOAL)FENDER, CENTER FRONT (CHARCOAL)
-
553119-02C00-0LP FENDER, CENTER REAR (CHARCOAL)FENDER, CENTER REAR (CHARCOAL)
-
653145-02C00 CUSHION, RHCUSHION, RH
-
753146-02C00 CUSHION, LHCUSHION, LH
-
809116-06025 BOLT, FENDER FRONTBOLT, FENDER FRONT
-
909180-061C0 SPACERSPACER
-
1009118-06020 BOLT, FENDER CENTERBOLT, FENDER CENTER
-
1109112-06008 BOLT, FENDER REARBOLT, FENDER REAR
-
1209320-11008 CUSHION, FRONTCUSHION, FRONT
-
1303241-15123 SCREW, CENTER FENDERSCREW, CENTER FENDER
-
1409148-05019 NUTNUT
-
1553311-02C00 MUD FLAP, RHMUD FLAP, RH
-
1653312-02C00 MUD FLAP, LHMUD FLAP, LH
-
1709136-06004 SCREWSCREW
-
1809146-06003 NUTNUT
-
1909136-05024 SCREW, UPPERSCREW, UPPER
-
2001570-06123 BOLT, SIDEBOLT, SIDE
-
2109169-06026 WASHERWASHER
-
2568151-02C80-N5V EMBLEM, FRONT FENDEREMBLEM, FRONT FENDER
