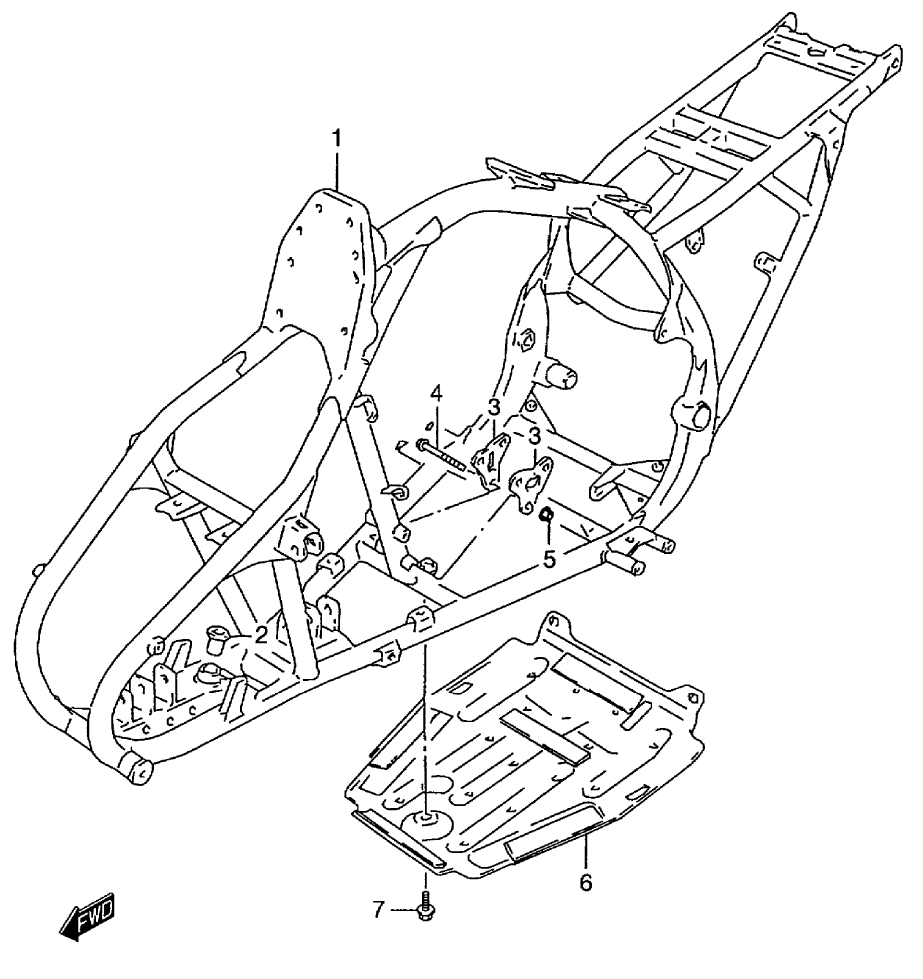

FRAME для Suzuki LT-F160Y QUADRUNNER - 2000 года выпуска
-
№АртикулНазвание
-
141100-02C03-019 FRAME (BLACK)FRAME (BLACK)
-
251661-40B00 BUSH, STEERING SHAFTBUSH, STEERING SHAFT
-
341911-18A00-019 PLATE, MOUNTING FRONT (BLACK)PLATE, MOUNTING FRONT (BLACK)
-
401550-08803 BOLTBOLT
-
508319-31085 NUTNUT
-
642510-02C01-019 PROTECTOR, ENGINE (BLACK)PROTECTOR, ENGINE (BLACK)
-
701550-08123 BOLTBOLT
Все узлы модели:
- AIR CLEANER
- BATTERY
- BRAKE - FRONT
- BRAKE - REAR PEDAL
- CAM CHAIN
- CAM SHAFT - W/ VALVES
- CARBUATOR (EXCEPT CALIF)
- CARBURATOR (CALIF ONLY)
- CARRIER - FRONT / REAR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- ELECTRICAL
- ELECTRICAL - WIRING HARNESS
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BUMBER
- • FRAME
- FUEL TANK
- GEAR SHIFTING
- HANDLEBAR - LEVERS / SWITCHES
- HANDLEBAR W/ CABLES
- HEADLAMP
- HEADLAMP HOUSING
- KNUCKLE W/ TIE RODS
- LABELS
- MAGNETO
- MODEL INFO - COLOR TABLE
- MUFFLER
- OIL PUMP - FUEL PUMP
- OPTIONAL
- SEAT
- STARTER - RECOIL (OPT)
- STARTER CLUTCH
- STARTING MOTOR
- STEERING SHAFT
- SUSPENSION - FRONT ARM W/ SHOCK
- SUSPENSION - REAR SWING ARM W/ SHOCK
- TAILLIGHT ASSY.
- TRANSMISSION
- WHEEL - FRONT
- WHEEL - REAR W/ AXLE - BRAKE
