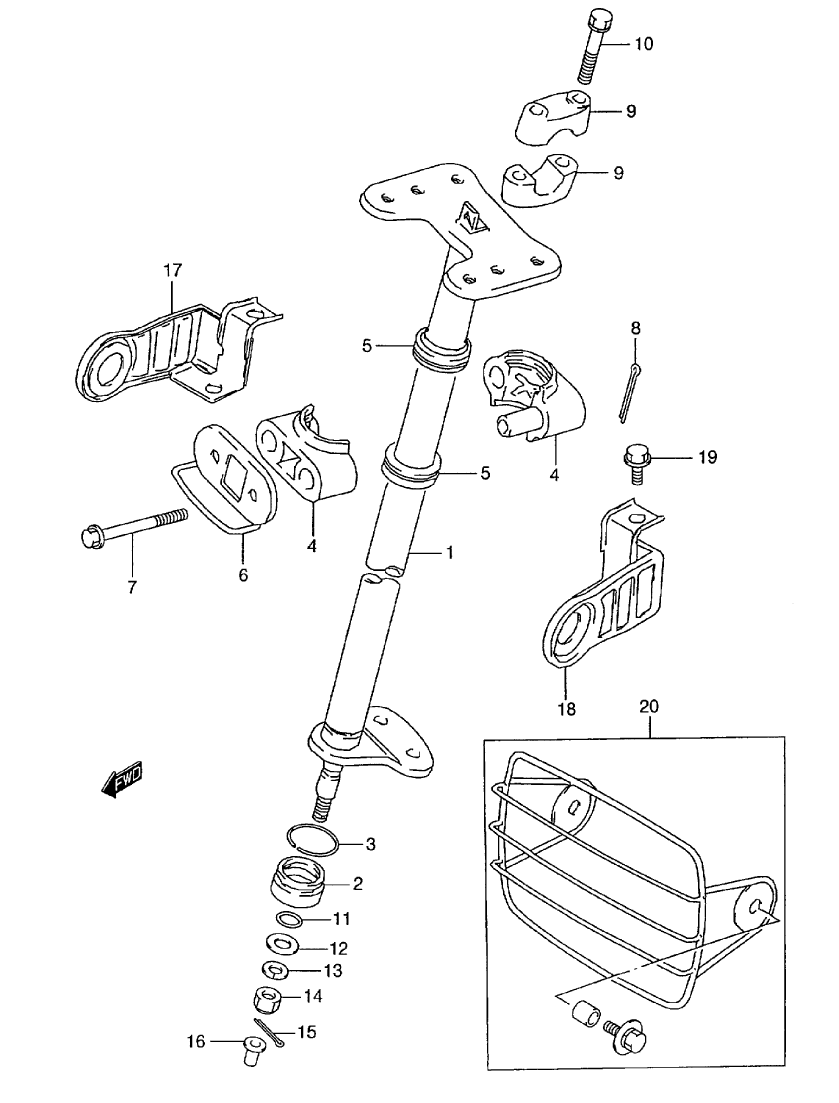

STEERING SHAFT для Suzuki LT-F160Y QUADRUNNER - 2000 года выпуска
-
№АртикулНазвание
-
151650-02C00 SHAFT, STEERINGSHAFT, STEERING
-
251662-18900 DUST SEAL. STEERING SHAFT (25.4X35X13)DUST SEAL. STEERING SHAFT (25.4X35X13)
-
309380-31002 CLIP, DUST SEALCLIP, DUST SEAL
-
451670-24500 HOLDER, STEERING SHAFTHOLDER, STEERING SHAFT
-
551678-24500 DUST SEAL, STEERING (27X38X8.5)DUST SEAL, STEERING (27X38X8.5)
-
651680-02C00 REINFORCEMENT, HOLDERREINFORCEMENT, HOLDER
-
709103-08116 BOLT (8X80)BOLT (8X80)
-
804111-20208 COTTER PINCOTTER PIN
-
956211-27200-291 CLAMP, HANDLEBAR (BLACK)CLAMP, HANDLEBAR (BLACK)
-
1001570-08553 BOLTBOLT
-
1109280-14011 O RING (INTER DIAMETER:13.8, DIAMETER:2.50)O RING (INTER DIAMETER:13.8, DIAMETER:2.50)
-
1209160-10128 WASHER, STEERING SHAFT LOWERWASHER, STEERING SHAFT LOWER
-
1309162-10008 LOCK WASHERLOCK WASHER
-
1408319-21103 NUTNUT
-
1504111-20208 COTTER PINCOTTER PIN
-
1651661-40B00 BUSH, SHAFT LOWERBUSH, SHAFT LOWER
-
1751530-02C00 BRACKET, HEAD LAMP RHBRACKET, HEAD LAMP RH
-
1851540-02C00 BRACKET, HEAD LAMP LHBRACKET, HEAD LAMP LH
-
1901580-08163 BOLTBOLT
-
2048500-02C00 GUARD SET, HEAD LAMP (OPT)GUARD SET, HEAD LAMP (OPT)
