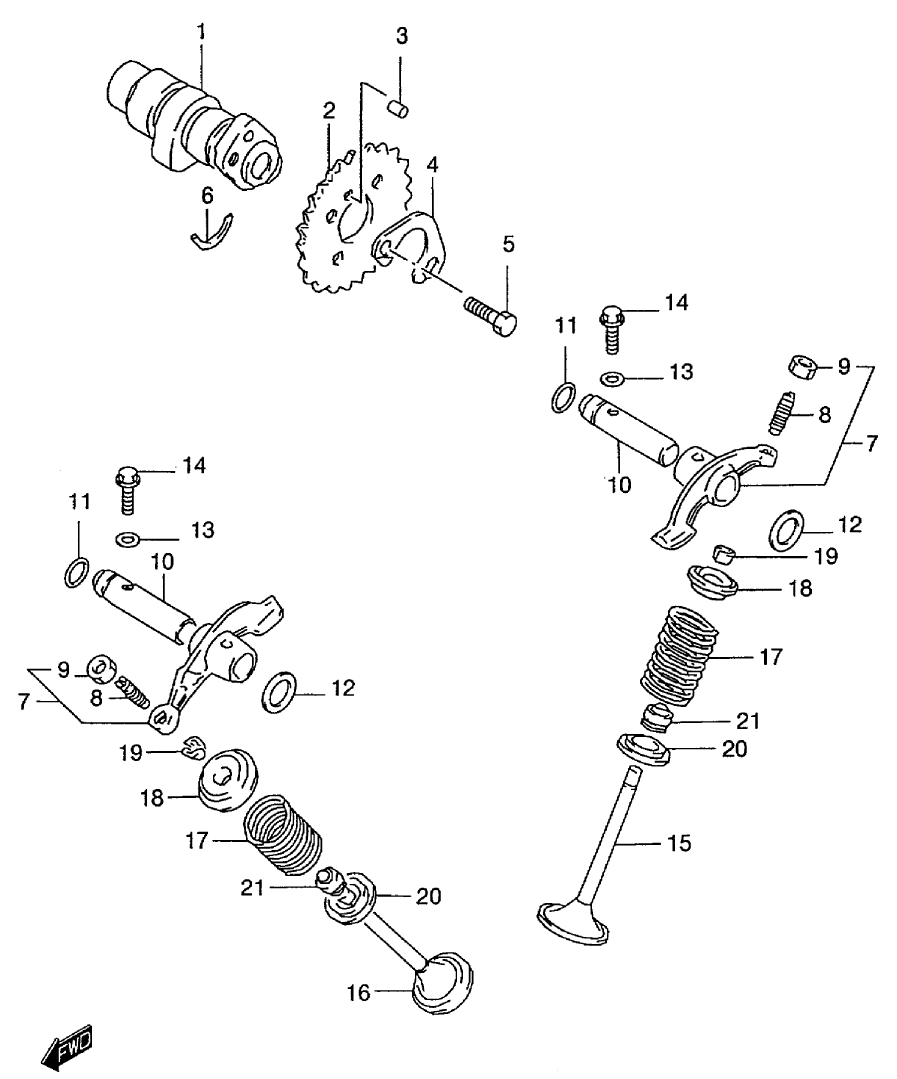

CAM SHAFT - W/ VALVES для Suzuki LT-F160Y QUADRUNNER - 2000 года выпуска
-
№АртикулНазвание
-
112711-02C10 CAM SHAFTCAM SHAFT
-
212741-05201 SPROCKET (NUMBER OF TEETH:32)SPROCKET (NUMBER OF TEETH:32)
-
309261-05005 PINPIN
-
412747-05201 WASHERWASHER
-
509111-06032 BOLT (6X10.5)BOLT (6X10.5)
-
609390-22002 C RINGC RING
-
712850-25C00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
812842-32411 ...SCREW...SCREW
-
912843-32400 ...NUT...NUT
-
1012861-05201 SHAFT, ROCKER ARMSHAFT, ROCKER ARM
-
1109280-09005 O RING (DIAMETER:1.9, INTER DIAMETER:8.6)O RING (DIAMETER:1.9, INTER DIAMETER:8.6)
-
1209164-12021 WASHERWASHER
-
1309168-06023 GASKETGASKET
-
1402162-06253 BOLTBOLT
-
1512911-02C00 VALVE, INTAKEVALVE, INTAKE
-
1612912-02C00 VALVE, EXHAUSTVALVE, EXHAUST
-
1712921-02C00 SPRING, VALVESPRING, VALVE
-
1812931-19B00 RETAINER, SPRINGRETAINER, SPRING
-
1912932-24400 COTTER, VALVECOTTER, VALVE
-
2012933-19B00 SEAT, SPRINGSEAT, SPRING
-
2109289-05015 OIL SEAL (5.5X11X8.2)OIL SEAL (5.5X11X8.2)
