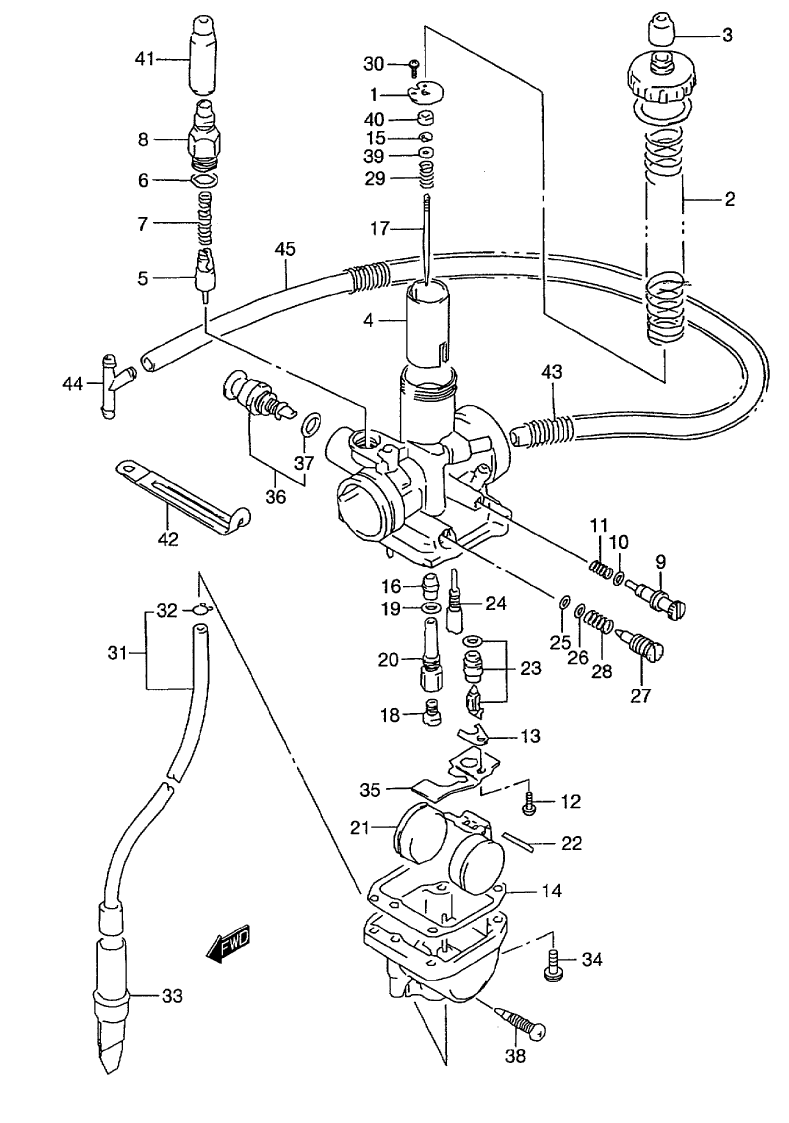

CARBUATOR (EXCEPT CALIF) для Suzuki LT-F160Y QUADRUNNER - 2000 года выпуска
-
№АртикулНазвание
-
-13200-02C03 CARBURETOR ASSYCARBURETOR ASSY
-
113373-05230 ...SEAT, SPRING...SEAT, SPRING
-
213573-18901 ...SPRING...SPRING
-
313681-04010 ...CAP...CAP
-
413551-02C00 ...VALVE. PISTON (CA:2.5)...VALVE. PISTON (CA:2.5)
-
513411-18910 ...PLUNGER...PLUNGER
-
613278-02330 ...O RING...O RING
-
713417-01010 ...SPRING...SPRING
-
813418-02330 ...CAP, PLUNGER...CAP, PLUNGER
-
913267-24500 ...SCREW...SCREW
-
1013295-33010 ...O RING...O RING
-
1113268-35010 ...SPRING...SPRING
-
1202112-03063 ...SCREW...SCREW
-
1313373-46710 ...PLATE...PLATE
-
1413251-05320 ...GASKET...GASKET
-
1513394-10010 ...E RING...E RING
-
1609494-00540 ...JET, NEEDLE (0-1)...JET, NEEDLE (0-1)
-
1713383-02C01 ...NEEDLE, JET (5FU96-3)...NEEDLE, JET (5FU96-3)
-
1809491-87005 ...JET, MAIN (87.5)...JET, MAIN (87.5)
-
1913246-43010 ...O RING...O RING
-
2013385-41B00 ...PIPE, BLEEDER...PIPE, BLEEDER
-
2113250-05230 ...FLOAT...FLOAT
-
2213254-01010 ...PIN...PIN
-
2313370-02C00 ...VALVE ASSY, NEEDLE...VALVE ASSY, NEEDLE
-
2409492-22008 ...JET, PIOLT (22.5)...JET, PIOLT (22.5)
-
2513295-29900 ...O RING...O RING
-
2613291-29900 ...GASKET...GASKET
-
2713279-47080 ...SCREW, PILOT (1 5/8)...SCREW, PILOT (1 5/8)
-
2813268-47070 ...SPRING...SPRING
-
2913388-47010 ...SPRING...SPRING
-
3013601-05230 ...SCREW...SCREW
-
3113520-02C01 ...VALVE ASSY, CHECK...VALVE ASSY, CHECK
-
3213671-05A40 ......CLIP......CLIP
-
3313680-19B01 ...CAP...CAP
-
3413601-04148 ...SCREW...SCREW
-
3513259-18900 ...PLATE...PLATE
-
3613439-18911 ...PLUNGER ASSY, STARTER...PLUNGER ASSY, STARTER
-
3713278-02330 ......O RING......O RING
-
3813247-13A00 ...SCREW...SCREW
-
3913382-47010 ...WASHER...WASHER
-
4013387-47010 ...RING...RING
-
4113681-33010 ...CAP...CAP
-
4209404-06432 CLAMP, CARB OVER FLOW HOSECLAMP, CARB OVER FLOW HOSE
-
4309440-13051 SPRING, AIR VENT HOSESPRING, AIR VENT HOSE
-
4409367-08004 UNION, 3 WAYUNION, 3 WAY
-
4509359-50823-600 HOSE, AIR VENT (5X8X600) (LENGTH:600-500)HOSE, AIR VENT (5X8X600) (LENGTH:600-500)
