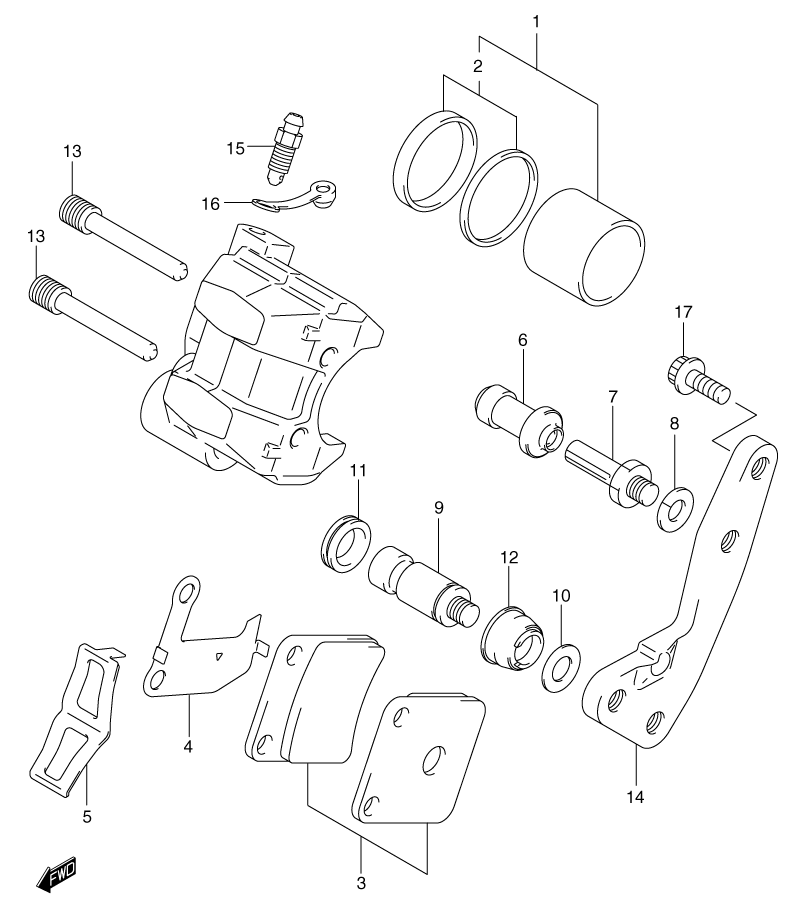

BRAKE - FRONT CALIPER для Suzuki LT-A400K EIGER 2WD AUTOMATIC - 2002 года выпуска
-
№АртикулНазвание
-
1A59100-38F00 CALIPER ASSY., FRONT (RIGHT)CALIPER ASSY., FRONT (RIGHT)
-
1A59300-38F00 CALIPER ASSY., FRONT (LEFT)CALIPER ASSY., FRONT (LEFT)
-
159100-38850 ...PISTON SET...PISTON SET
-
259100-38860 ......SEAL SET, PISTON......SEAL SET, PISTON
-
359100-38870 ...PAD SET...PAD SET
-
4-159371-13A00 ...SHIM, RH...SHIM, RH
-
4-269372-00B20 ...SHIM, LH...SHIM, LH
-
559315-13A00 ...SPRING, PAD...SPRING, PAD
-
659386-13A00 ...BOOT...BOOT
-
759382-13A00 ...PIN...PIN
-
859314-13A00 ...WASHER...WASHER
-
959105-38F00 ...PIN, SLIDE...PIN, SLIDE
-
1059306-13A00 ...SPRING...SPRING
-
1159384-13A00 ...SEAL, DUST...SEAL, DUST
-
1259303-13A00 ...BOOT...BOOT
-
1359345-00B20 ...PIN...PIN
-
14-159151-38F00 ...BRACKET (RIGHT)...BRACKET (RIGHT)
-
14-259351-38F00 ...BRACKET (LEFT)...BRACKET (LEFT)
-
1559121-01A00 ...BLEEDER...BLEEDER
-
1659122-01A00 ...CAP...CAP
-
1707120-08163 BOLT (8X16)BOLT (8X16)
