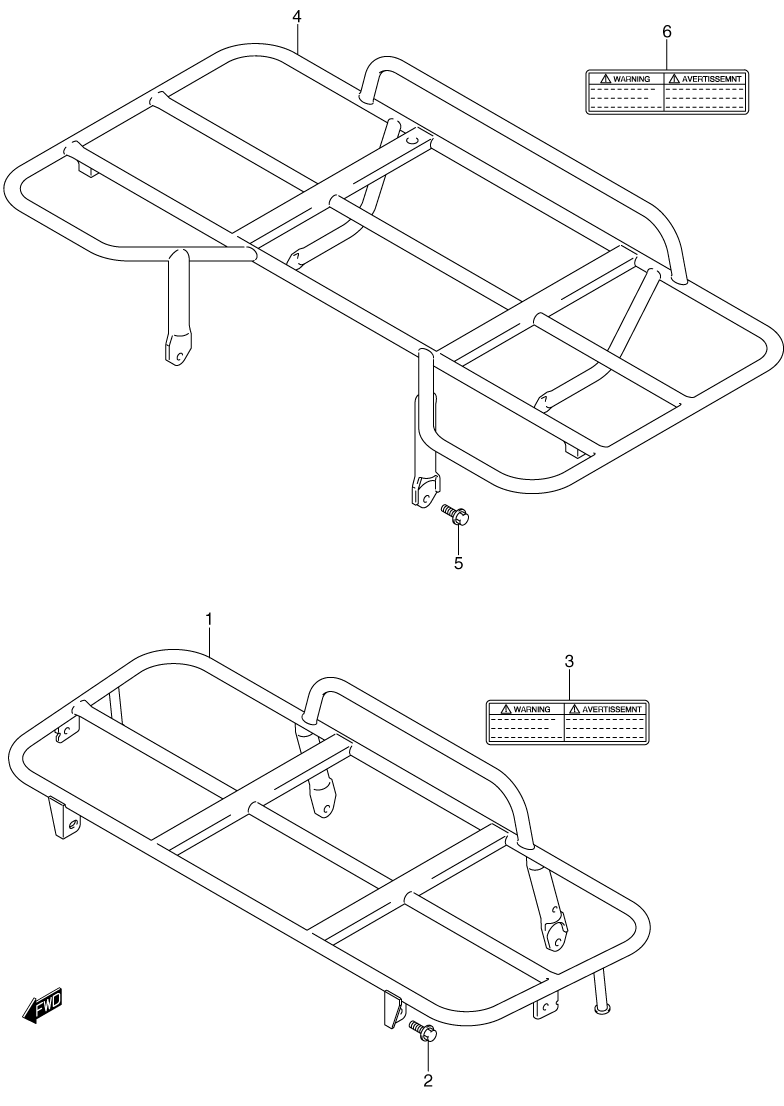

CARRIER - FRONT / REAR для Suzuki LT-A400K EIGER 2WD AUTOMATIC - 2002 года выпуска
-
№АртикулНазвание
-
1-146410-38F00 CARRIER, FRONTCARRIER, FRONT
-
1-246410-38F10 CARRIER, FRONT (CANADA)CARRIER, FRONT (CANADA)
-
201550-08203 BOLTBOLT
-
3-168381-19B00 LABEL, FRONT CARRIERLABEL, FRONT CARRIER
-
3-268381-19B20 LABEL, FRONT CARRIER (FRENCH) (CANADA)LABEL, FRONT CARRIER (FRENCH) (CANADA)
-
4-146310-38F00 CARRIER, REARCARRIER, REAR
-
4-246310-38F10 CARRIER, REAR (CANADA)CARRIER, REAR (CANADA)
-
501550-08203 BOLTBOLT
-
6-168391-19B00 LABEL, REAR CARRIERLABEL, REAR CARRIER
-
6-268391-19B20 LABEL, REAR CARRIER (FRENCH) (CANADA)LABEL, REAR CARRIER (FRENCH) (CANADA)
