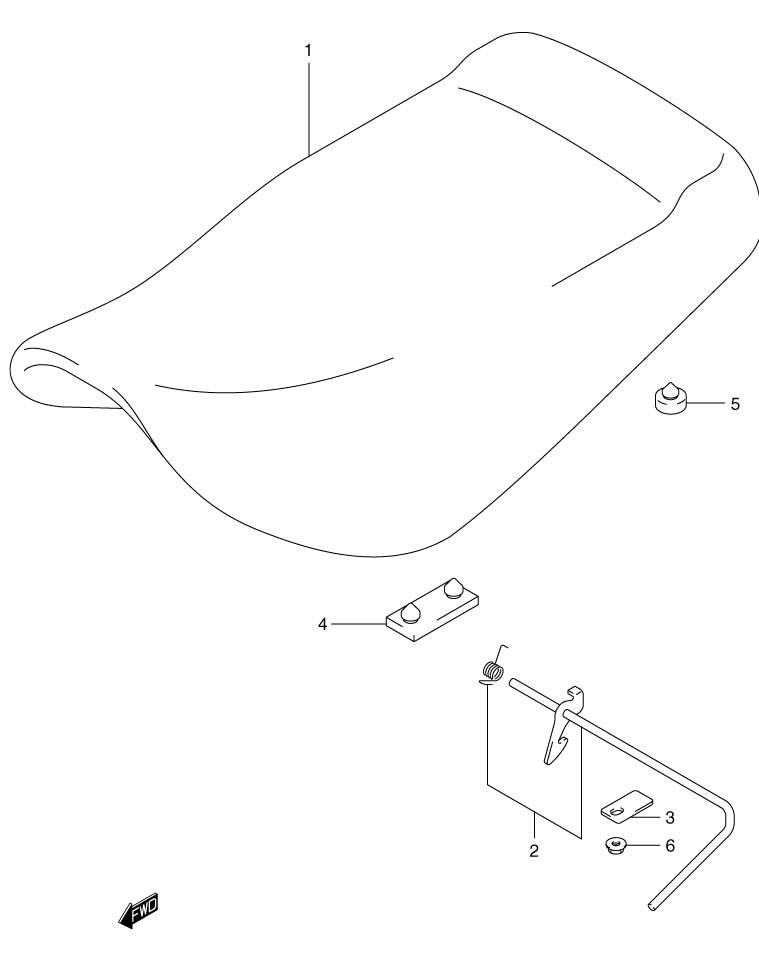

SEAT для Suzuki LT-A400K EIGER 2WD AUTOMATIC - 2002 года выпуска
-
№АртикулНазвание
-
S45100-38F00-P21 SEAT ASSY.SEAT ASSY.
-
245210-38F00 ...CLAMP, SEAT LOCK...CLAMP, SEAT LOCK
-
345222-38F00 ...PLATE, SEAT LOCK, L...PLATE, SEAT LOCK, L
-
409321-08009 ...CUSHION...CUSHION
-
509321-10002 ...CUSHION...CUSHION
-
608316-10063 ...NUT...NUT
Все узлы модели:
- AIR CLEANER
- BATTERY
- BOX - REAR
- BRAKE - FRONT CALIPER
- BRAKE - FRONT HOSE
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR PEDAL
- CAM CHAIN
- CAM SHAFT - W/ VALVES
- CARBURETOR
- CARRIER - FRONT / REAR
- COOLING DUCTS
- COOLING FAN
- CRANK BALANCER
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- DIFFERENTIAL - REAR
- DRIVESHAFT - REAR
- ELECTRICAL
- ELECTRICAL - WIRING HARNESS
- FAN SWITCH
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BUMBER
- FRAME
- FUEL TANK
- GASKET SET
- GEAR SHIFTING
- HANDLEBAR - KNUCKLE COVER (OPTIONAL)
- HANDLEBAR - LEVERS / SWITCHES
- HANDLEBAR W/ CABLES
- HEADLAMP
- LABELS
- MAGNETO
- MUFFLER
- OIL COOLER
- OIL PUMP
- OPTIONAL
- • SEAT
- SHIFT LEVER
- SPEEDOMETER
- STARTER - RECOIL
- STARTER CLUTCH
- STARTING MOTOR
- STEERING KNUCKLE W/ TIE RODS
- STEERING SHAFT
- SUSPENSION - FRONT ARM W/ SHOCK
- SUSPENSION - REAR SWING ARM
- TAILLIGHT ASSY.
- TRANSMISSION (1)
- TRANSMISSION (2)
- WHEEL - FRONT
- WHEEL - LEFT REAR - AXLE
- WHEEL - RIGHT REAR W/ AXLE- BRAKE
