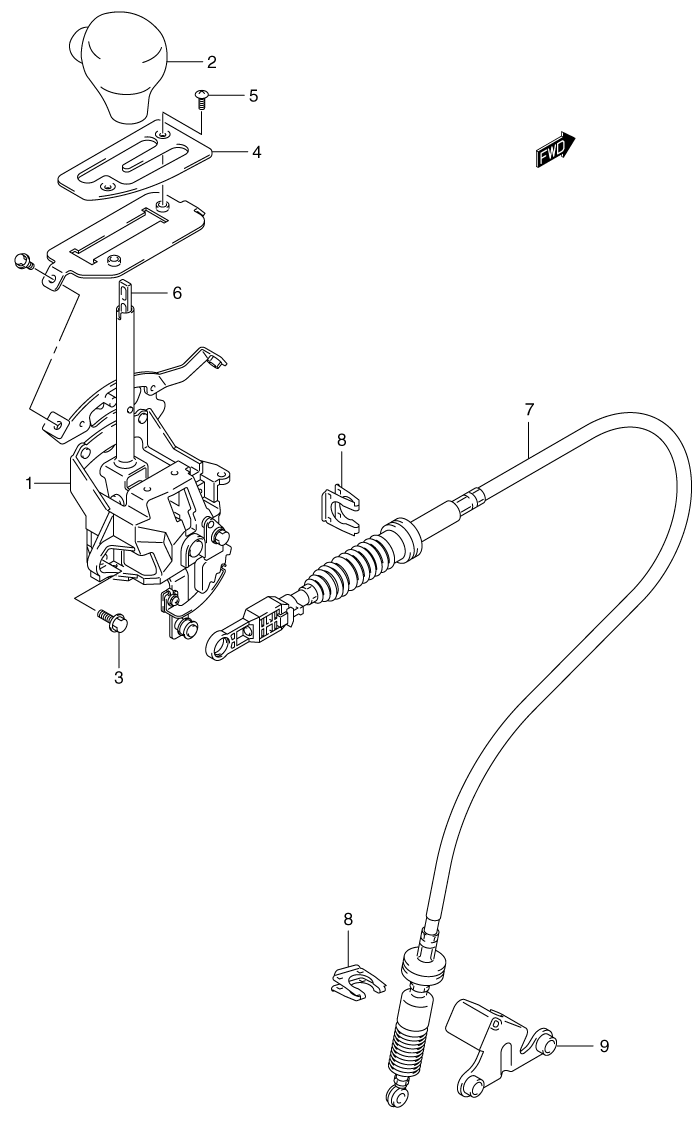

SHIFT LEVER для Suzuki LT-A400K EIGER 2WD AUTOMATIC - 2002 года выпуска
-
№АртикулНазвание
-
157800-38F00 LEVER ASSY., TRANSMISSIONLEVER ASSY., TRANSMISSION
-
257830-38F10 KNOB, T/M LEVERKNOB, T/M LEVER
-
301550-06163 BOLTBOLT
-
457961-38F00 PLATE, T/M INDICATORPLATE, T/M INDICATOR
-
509139-05032 SCREWSCREW
-
657863-38F00 ROD, DETENTROD, DETENT
-
758680-38F00 CABLE, T/M GEAR SHIFT (SEE NOTE)CABLE, T/M GEAR SHIFT (SEE NOTE)
-
828375-78A00 CLIPCLIP
-
958620-38F00 BRACKET, T/M CABLEBRACKET, T/M CABLE
-
N158821-03G00 BUSHING, T/M CABBUSHING, T/M CAB
-
N258620-38F40 PLATE, T/M CABLEPLATE, T/M CABLE
-
N341990-38F10 PLATE COMP, ENGIPLATE COMP, ENGI
