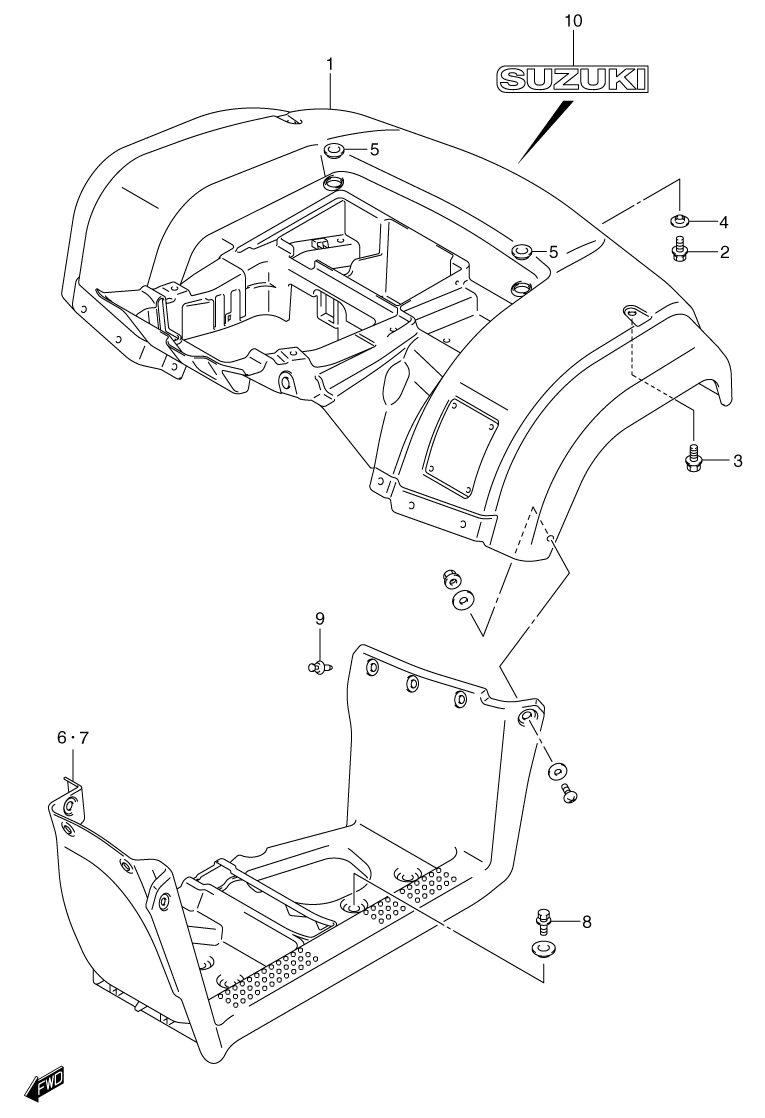

FENDER - REAR для Suzuki LT-A400K EIGER 2WD AUTOMATIC - 2002 года выпуска
-
№АртикулНазвание
-
1-163111-38F00-YT8 FENDER, REAR (GREEN) (FOR YT8)FENDER, REAR (GREEN) (FOR YT8)
-
1-263111-38F00-YT9 FENDER, REAR (RED) (FOR YT9)FENDER, REAR (RED) (FOR YT9)
-
209116-06168 BOLT, FRONTBOLT, FRONT
-
309116-06147 BOLT, SIDEBOLT, SIDE
-
409180-06290 SPACERSPACER
-
509320-11008 CUSHIONCUSHION
-
663331-38F00-291 MUDGUARD, FRONT (RIGHT) (BLACK)MUDGUARD, FRONT (RIGHT) (BLACK)
-
763341-38F00-291 MUDGUARD, FRONT (LEFT) (BLACK)MUDGUARD, FRONT (LEFT) (BLACK)
-
809111-06061 BOLT, GUARDBOLT, GUARD
-
909409-08335 CLIPCLIP
-
10-168171-44B00-HV6 EMBLEM, REAR (GREEN) (FOR YT8)EMBLEM, REAR (GREEN) (FOR YT8)
-
10-268171-44B00-HV5 EMBLEM, REAR (RED) (FOR YT9)EMBLEM, REAR (RED) (FOR YT9)
