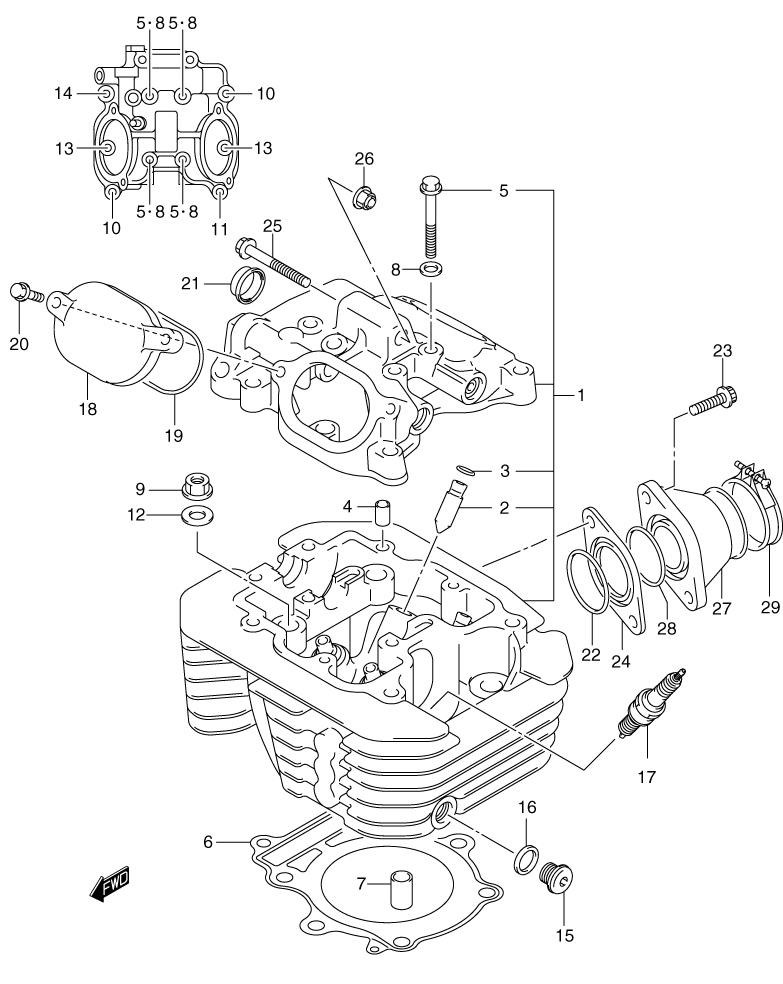

CYLINDER HEAD для Suzuki LT-A400K EIGER 2WD AUTOMATIC - 2002 года выпуска
-
№АртикулНазвание
-
111100-38F00 HEAD ASSY., CYLINDERHEAD ASSY., CYLINDER
-
211115-14D71 ...GUIDE, VALVE (OS:0.3)...GUIDE, VALVE (OS:0.3)
-
309381-10004 ...RING, VALVE GUIDE...RING, VALVE GUIDE
-
409206-08001 ...PIN...PIN
-
509103-06102 ...BOLT (6X55)...BOLT (6X55)
-
611141-38F00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
709206-13004 PINPIN
-
809168-06023 GASKETGASKET
-
908316-10083 NUTNUT
-
1009103-06108 BOLT, HEAD COVER (L:35)BOLT, HEAD COVER (L:35)
-
1109103-06504 BOLT, HEAD COVER (L:40)BOLT, HEAD COVER (L:40)
-
1209160-10060 WASHER, CYLINDER HEAD NUTWASHER, CYLINDER HEAD NUT
-
1301550-06253 BOLT, HEAD COVER (L:25)BOLT, HEAD COVER (L:25)
-
1401550-06303 BOLT, HEAD COVER (L:30)BOLT, HEAD COVER (L:30)
-
1509248-12004 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
1609168-12002 GASKET, OIL GALLERY PLUGGASKET, OIL GALLERY PLUG
-
17-109482-00516 SPARK PLUG (NGK,CR7E)SPARK PLUG (NGK,CR7E)
-
17-209482-00515 SPARK PLUG (DENSO,U22ESR-N)SPARK PLUG (DENSO,U22ESR-N)
-
17-309482-00528 SPARK PLUG (NGK,CR6E) (OPT)SPARK PLUG (NGK,CR6E) (OPT)
-
17-409482-00529 SPARK PLUG (DENSO U20ESR-N) (OPT)SPARK PLUG (DENSO U20ESR-N) (OPT)
-
17-509482-00456 SPARK PLUG (NGK,CR8E) (OPT)SPARK PLUG (NGK,CR8E) (OPT)
-
17-609482-00457 SPARK PLUG (DENSO U24ESR-N) (OPT)SPARK PLUG (DENSO U24ESR-N) (OPT)
-
1811175-47D00 CAP, INSPECTIONCAP, INSPECTION
-
1911177-14D01 O-RING, INSPECTION CAPO-RING, INSPECTION CAP
-
2001550-06203 BOLT, INSPECTION CAPBOLT, INSPECTION CAP
-
2109241-25007 PLUG, HEADPLUG, HEAD
-
2209280-40010 O-RING (D:2.4,ID:39.7)O-RING (D:2.4,ID:39.7)
-
2307120-06253 SCREWSCREW
-
2413117-38F00 INSULATOR, INTAKE PIPEINSULATOR, INTAKE PIPE
-
2509103-08345 BOLT (L:60)BOLT (L:60)
-
2608319-31087 NUTNUT
-
2713101-38F00 PIPE ASSY., INTAKEPIPE ASSY., INTAKE
-
2809280-40010 ...O-RING (D:2.4,ID:39.7)...O-RING (D:2.4,ID:39.7)
-
2909402-48208 CLAMPCLAMP
