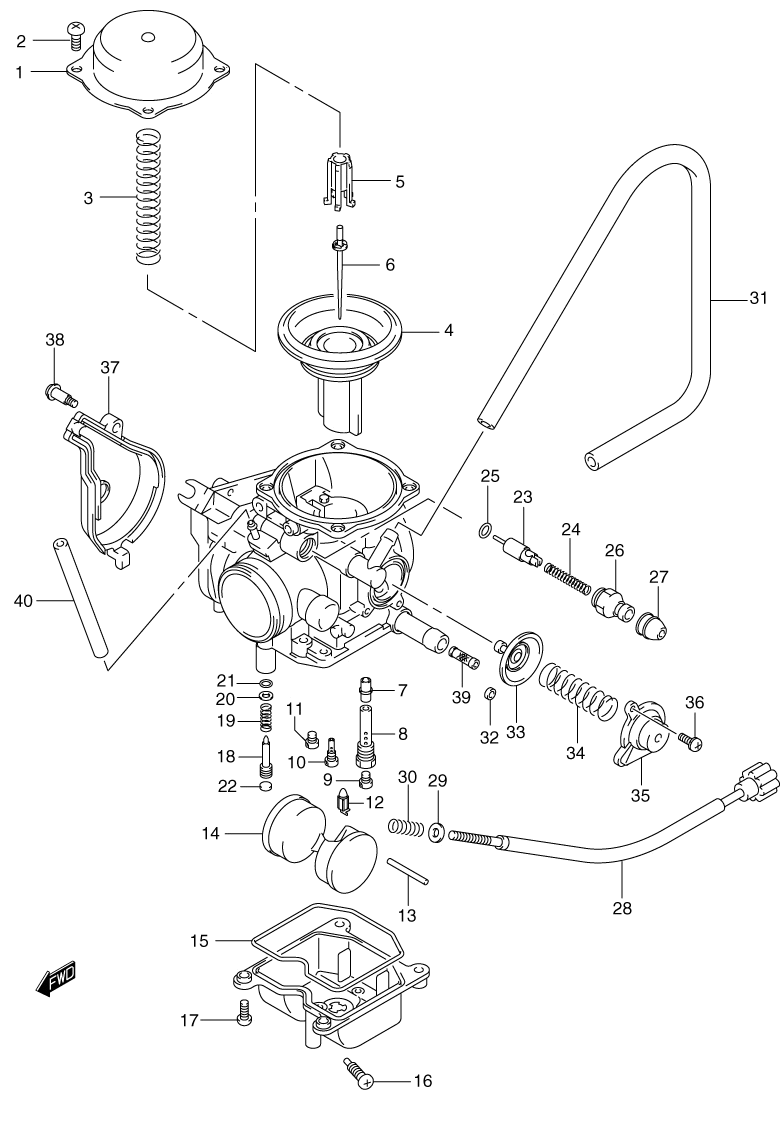

CARBURETOR для Suzuki LT-A400K EIGER 2WD AUTOMATIC - 2002 года выпуска
-
№АртикулНазвание
-
1A13200-38F00 CARBURETOR ASSY. (US/CANADA)CARBURETOR ASSY. (US/CANADA)
-
1A13200-38F10 CARBURETOR ASSY. (CALIFORNIA ONLY)CARBURETOR ASSY. (CALIFORNIA ONLY)
-
113502-38F00 ...DIAPHRAGM COVER...DIAPHRAGM COVER
-
213602-43E00 ...SCREW...SCREW
-
313503-38F00 ...SPRING...SPRING
-
413501-38F00 ...DIAPHRAGM...DIAPHRAGM
-
513382-26E00 ...SEAT, SPRING...SEAT, SPRING
-
613383-38F00 ...NEEDLE, JET (N425-BZA00)...NEEDLE, JET (N425-BZA00)
-
709494-00869 ...JET, NEEDLE...JET, NEEDLE
-
813342-38F00 ...HOLDER, NEEDLE JET...HOLDER, NEEDLE JET
-
909491-24032 ...JET, MAIN (#122)...JET, MAIN (#122)
-
1009492-38005 ...JET, PILOT (#38)...JET, PILOT (#38)
-
1109491-55009 ...JET, MAIN (#55)...JET, MAIN (#55)
-
1213370-38F00 ...VALVE ASSY., NEEDLE...VALVE ASSY., NEEDLE
-
1313254-26E00 ...FLOAT PIN...FLOAT PIN
-
1413250-26E00 ...FLOAT ASSY....FLOAT ASSY.
-
1513258-26E00 ...O-RING...O-RING
-
1613247-43E00 ...DRAIN SCREW...DRAIN SCREW
-
1713602-26E10 ...SCREW...SCREW
-
1813279-03FA0 ...SCREW, ADJUST...SCREW, ADJUST
-
1913268-26E00 ...SPRING...SPRING
-
2013291-26E00 ...WASHER...WASHER
-
2113295-26E00 ...O-RING...O-RING
-
2213281-26E00 ...CAP (CALIFORNIA ONLY)...CAP (CALIFORNIA ONLY)
-
2313410-38F00 ...VALVE ASSY., STARTER...VALVE ASSY., STARTER
-
2413417-03G00 ...SPRING...SPRING
-
2513686-03G00 ...O-RING...O-RING
-
2613418-03G00 ...HOLDER...HOLDER
-
2713681-28E00 ...CAP...CAP
-
2813270-24F00 ...SCREW, STOP...SCREW, STOP
-
2913273-03G00 ...WASHER...WASHER
-
3013268-35F00 ...SPRING...SPRING
-
3109352-70113 ...HOSE...HOSE
-
3213486-15F00 ...U-RING...U-RING
-
3313480-38F00 ...DIAPHRAGM...DIAPHRAGM
-
3413481-15F00 ...SPRING...SPRING
-
3513484-15F00 ...COVER...COVER
-
3613601-15F10 ...SCREW...SCREW
-
3713578-03G00 ...STRAINER, FUEL...STRAINER, FUEL
-
3813601-11F00 ...SCREW...SCREW
-
3913314-03G00 ...STRAINER, FUEL...STRAINER, FUEL
-
4009355-50105-600 HOSE, FUEL COOK VACUUM (L:600 -> 240)HOSE, FUEL COOK VACUUM (L:600 -> 240)
