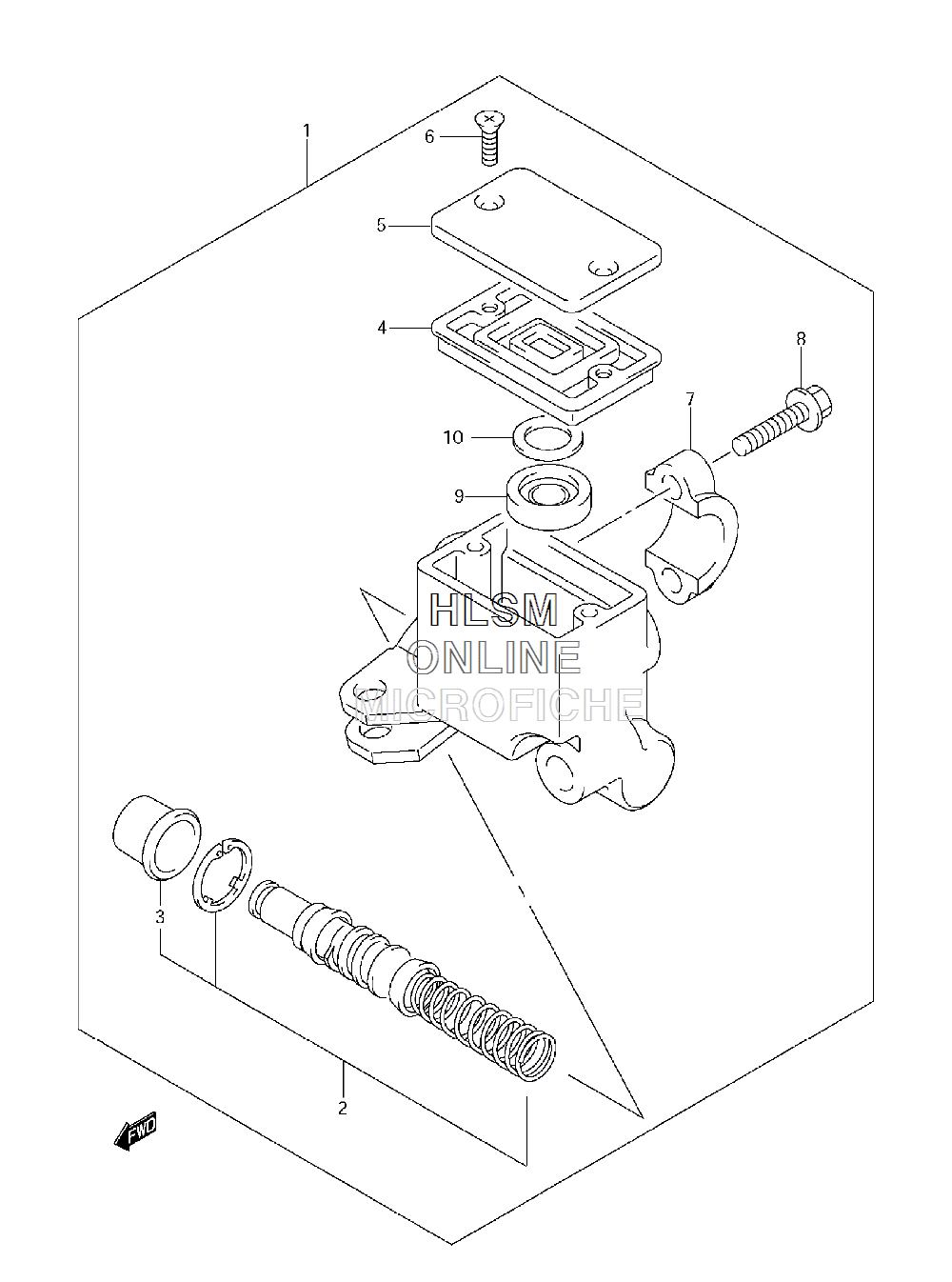

BRAKE - FRONT MASTER CYLINDER для Suzuki LT-A750XPZ KingQuad 750AXi Power Steering Limited - 2009 года выпуска
-
№АртикулНазвание
-
159600-31D01 CYLINDER ASSY, FRONT MASTER (INC 2-10)CYLINDER ASSY, FRONT MASTER (INC 2-10)
-
259600-04810 PISTON/CUP SETPISTON/CUP SET
-
359666-44300 BOOTBOOT
-
459667-44B00 DIAPHRAGMDIAPHRAGM
-
569669-24A01 CAPCAP
-
669689-49300 SCREW, CAPSCREW, CAP
-
759671-36500 HOLDERHOLDER
-
859675-02FA0 BOLTBOLT
-
959748-15400 SEPARATORSEPARATOR
-
1059749-15400 PLATEPLATE
