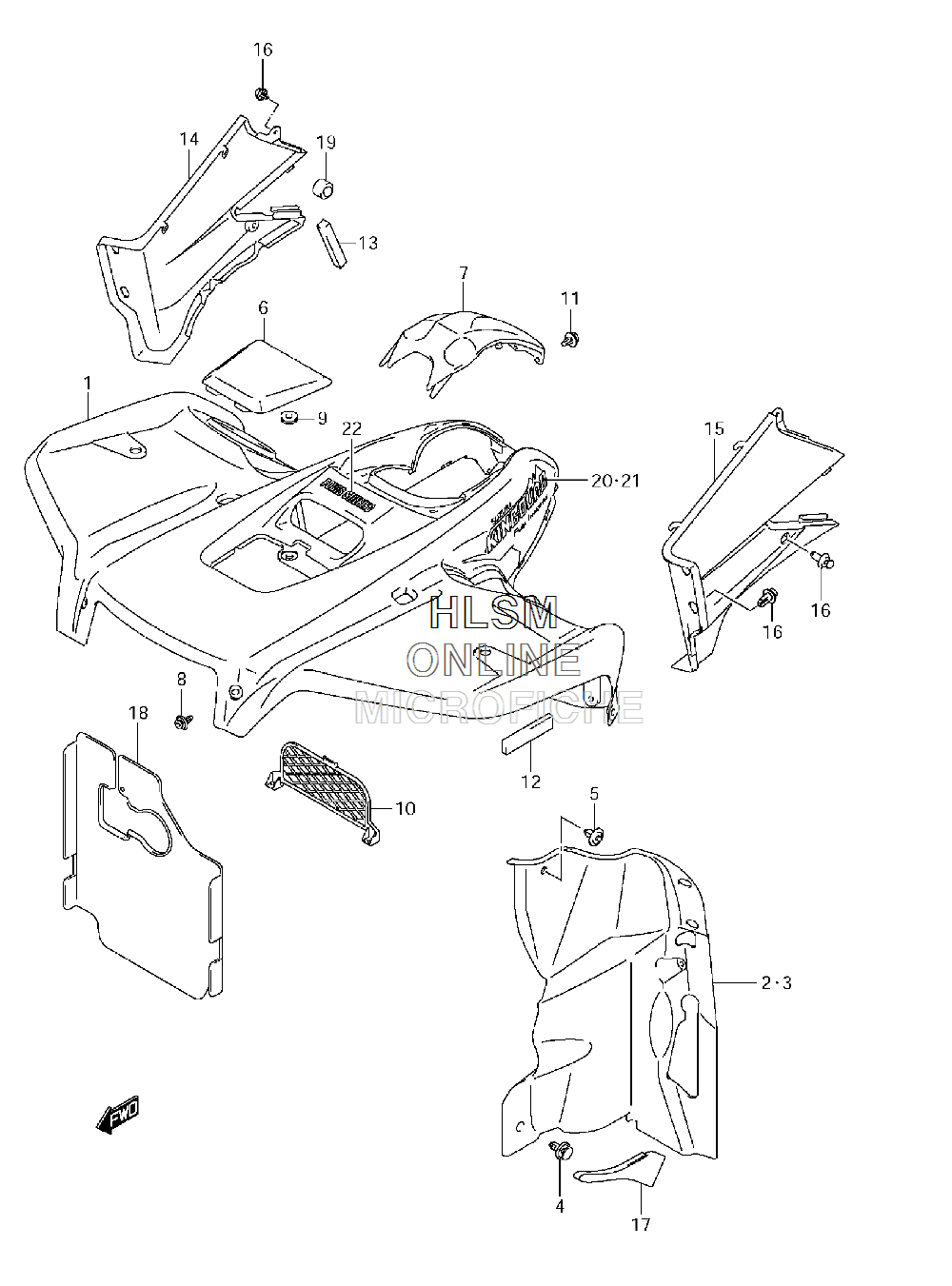

FENDER - FRONT для Suzuki LT-A750XPZ KingQuad 750AXi Power Steering Limited - 2009 года выпуска
-
№АртикулНазвание
-
153111-31G21-YUW FENDER, FRONT (BLACK)FENDER, FRONT (BLACK)
-
253411-31G02 MUDFLAP, INNER RIGHT HANDMUDFLAP, INNER RIGHT HAND
-
353421-31G01 MUDFLAP, INNER LEFT HANDMUDFLAP, INNER LEFT HAND
-
409409-08335 CLIP, LOWERCLIP, LOWER
-
509409-07333 CLIP, UPPERCLIP, UPPER
-
653341-31G10-YUW LID (BLACK)LID (BLACK)
-
753119-31G11-YUW FENDER, CENTER (BLACK)FENDER, CENTER (BLACK)
-
809409-08335 CLIPCLIP
-
909320-08018 CUSHIONCUSHION
-
1053212-31G00 COVER, INNERCOVER, INNER
-
1109409-08335 CLIPCLIP
-
1253145-07G01 CUSHION, FENDER SIDECUSHION, FENDER SIDE
-
1353113-31H00 CUSHION, COVER SIDECUSHION, COVER SIDE
-
1453110-31G10-291 COVER, SIDE RIGHT HAND (BLACK)COVER, SIDE RIGHT HAND (BLACK)
-
1553110-31G20-291 COVER, SIDE LEFT HAND (BLACK)COVER, SIDE LEFT HAND (BLACK)
-
1609409-08335 CLIPCLIP
-
1753116-31G00 MUDGUARD, SIDE RIGHT HANDMUDGUARD, SIDE RIGHT HAND
-
1853117-31G00 COVER, CENTERCOVER, CENTER
-
1909321-10019 CUSHIONCUSHION
-
2068151-31G50-ETA EMBLEM, RIGHT HANDEMBLEM, RIGHT HAND
-
2168152-31G50-ETA EMBLEM, LEFT HANDEMBLEM, LEFT HAND
-
2268151-31G20-FVT EMBLEM, ''POWER-STEERING''EMBLEM, ''POWER-STEERING''
