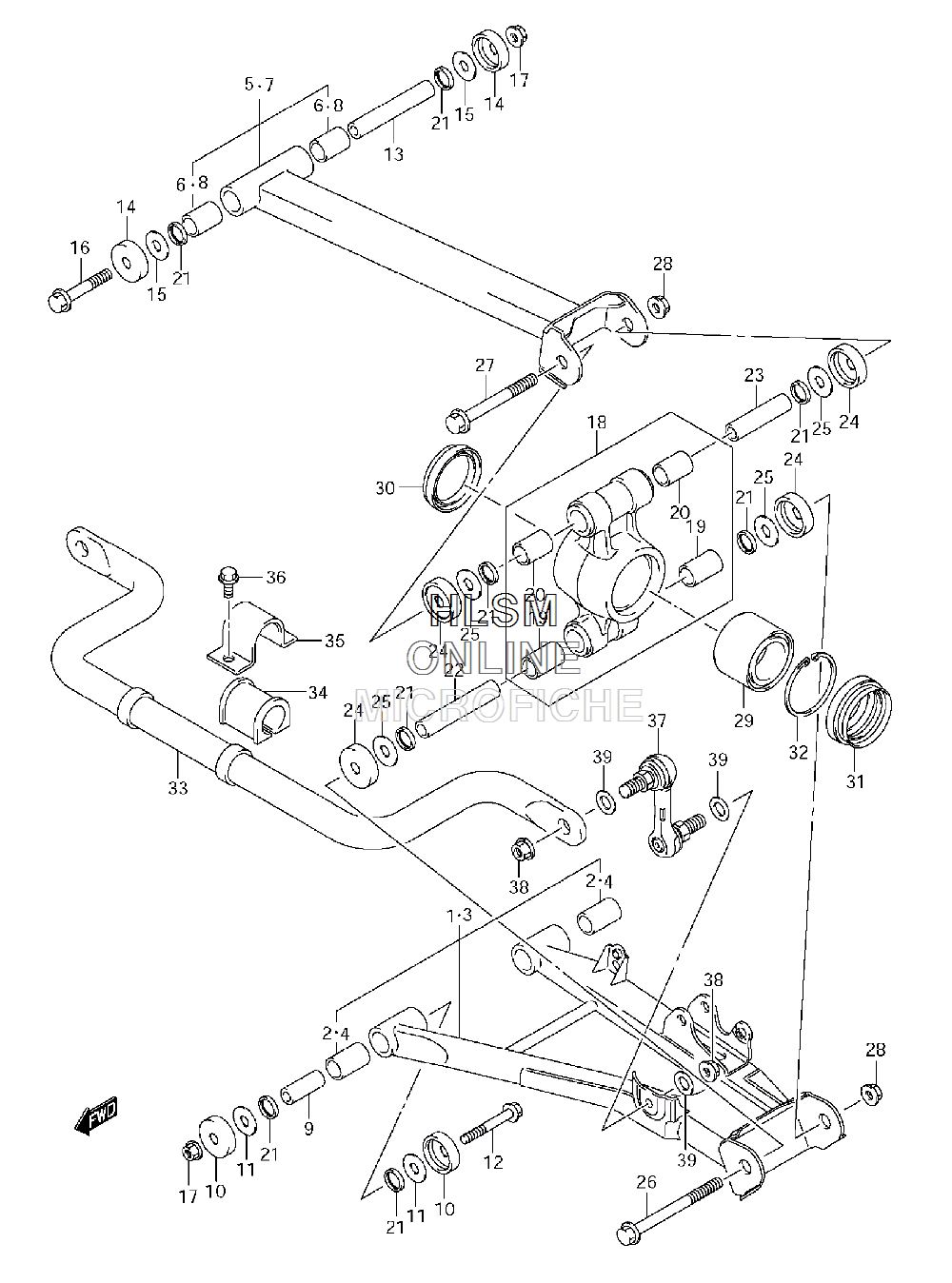

SUSPENSION - REAR ARM для Suzuki LT-A750XPZ KingQuad 750AXi Power Steering Limited - 2009 года выпуска
-
№АртикулНазвание
-
161510-31830 ARM SET, RR SUSPENSION LOWER, R (INC 2)ARM SET, RR SUSPENSION LOWER, R (INC 2)
-
251236-31G00 BUSH, RR SPNSN ARM LOWERBUSH, RR SPNSN ARM LOWER
-
361520-31830 ARM SET, RR SUSPENSION LOWER, L (INC 4)ARM SET, RR SUSPENSION LOWER, L (INC 4)
-
451236-31G00 BUSH, RR SPNSN ARM LOWERBUSH, RR SPNSN ARM LOWER
-
561530-31830 ARM SET, RR SUSPENSION UPPER, R (INC 6)ARM SET, RR SUSPENSION UPPER, R (INC 6)
-
651236-31G00 BUSH, RR SPNSN ARM UPPERBUSH, RR SPNSN ARM UPPER
-
761540-31830 ARM SET, RR SUSPENSION (INC 8)ARM SET, RR SUSPENSION (INC 8)
-
851236-31G00 BUSH, RR SPNSN ARM UPPERBUSH, RR SPNSN ARM UPPER
-
961552-31G10 SPACER, RR SPNSN ARM LOWERSPACER, RR SPNSN ARM LOWER
-
1051255-31G10 SEAL, RR SPNSN ARM LOWERSEAL, RR SPNSN ARM LOWER
-
1108211-10281 WASHER, RR SPNSN ARM LOWERWASHER, RR SPNSN ARM LOWER
-
1209103-10392 BOLT, RR SPNSN ARM LOWERBOLT, RR SPNSN ARM LOWER
-
1361554-31G10 SPACER, RR SPNSN ARM UPPERSPACER, RR SPNSN ARM UPPER
-
1451255-31G00 SEAL, RR SPNSN ARM UPPERSEAL, RR SPNSN ARM UPPER
-
1508211-10281 WASHER, RR SPNSN ARM UPPERWASHER, RR SPNSN ARM UPPER
-
1609103-10388 BOLT, RR SPNSN ARM UPPERBOLT, RR SPNSN ARM UPPER
-
1709159-10115 NUT, RR SPNSN ARM PIVOTNUT, RR SPNSN ARM PIVOT
-
1861600-31830 KNUCKLE SET, RR SUSPENSION (INC 19-20)KNUCKLE SET, RR SUSPENSION (INC 19-20)
-
1951236-31G00 BUSH, RR KNUCKLEBUSH, RR KNUCKLE
-
2061551-31G10 BUSH, RR KNUCKLE UPPERBUSH, RR KNUCKLE UPPER
-
2152454-45G00 SEAL, RR KNUCKLE INNERSEAL, RR KNUCKLE INNER
-
2261554-31G10 SPACER, RR KNUCKLE LOWERSPACER, RR KNUCKLE LOWER
-
2361553-31G20 SPACER, RR KNUCKLE UPPERSPACER, RR KNUCKLE UPPER
-
2451255-18900 SEAL, RR KNUCKLE DUSTSEAL, RR KNUCKLE DUST
-
2508211-10281 WASHER, RR KNUCKLEWASHER, RR KNUCKLE
-
2609103-10388 BOLT, RR KNUCKLE LOWERBOLT, RR KNUCKLE LOWER
-
2709103-10387 BOLT, RR KNUCKLE UPPERBOLT, RR KNUCKLE UPPER
-
2809159-10115 NUT, RR KNUCKLENUT, RR KNUCKLE
-
2943440-84F00 BEARING, RR HUBBEARING, RR HUB
-
3061615-31G00 SEAL, REAR HUB INNER DUSTSEAL, REAR HUB INNER DUST
-
3161616-31G00 SEAL, REAR HUB OUTER DUSTSEAL, REAR HUB OUTER DUST
-
3208331-4162A CLIP, HUB BEARINGCLIP, HUB BEARING
-
3361651-31G30 BAR, RR STABILIZERBAR, RR STABILIZER
-
3461652-31G20 BUSH, RR STABILIZERBUSH, RR STABILIZER
-
3561650-31G00 PLATE, RR STABILIZERPLATE, RR STABILIZER
-
3609103-08283 BOLT, RR STABILIZER PLATEBOLT, RR STABILIZER PLATE
-
3761660-31G20 JOINT, RR STABILIZERJOINT, RR STABILIZER
-
3809159-10223 NUT, RR STABILIZER JOINTNUT, RR STABILIZER JOINT
-
3909160-10039 WASHER, RR STABILIZERWASHER, RR STABILIZER
