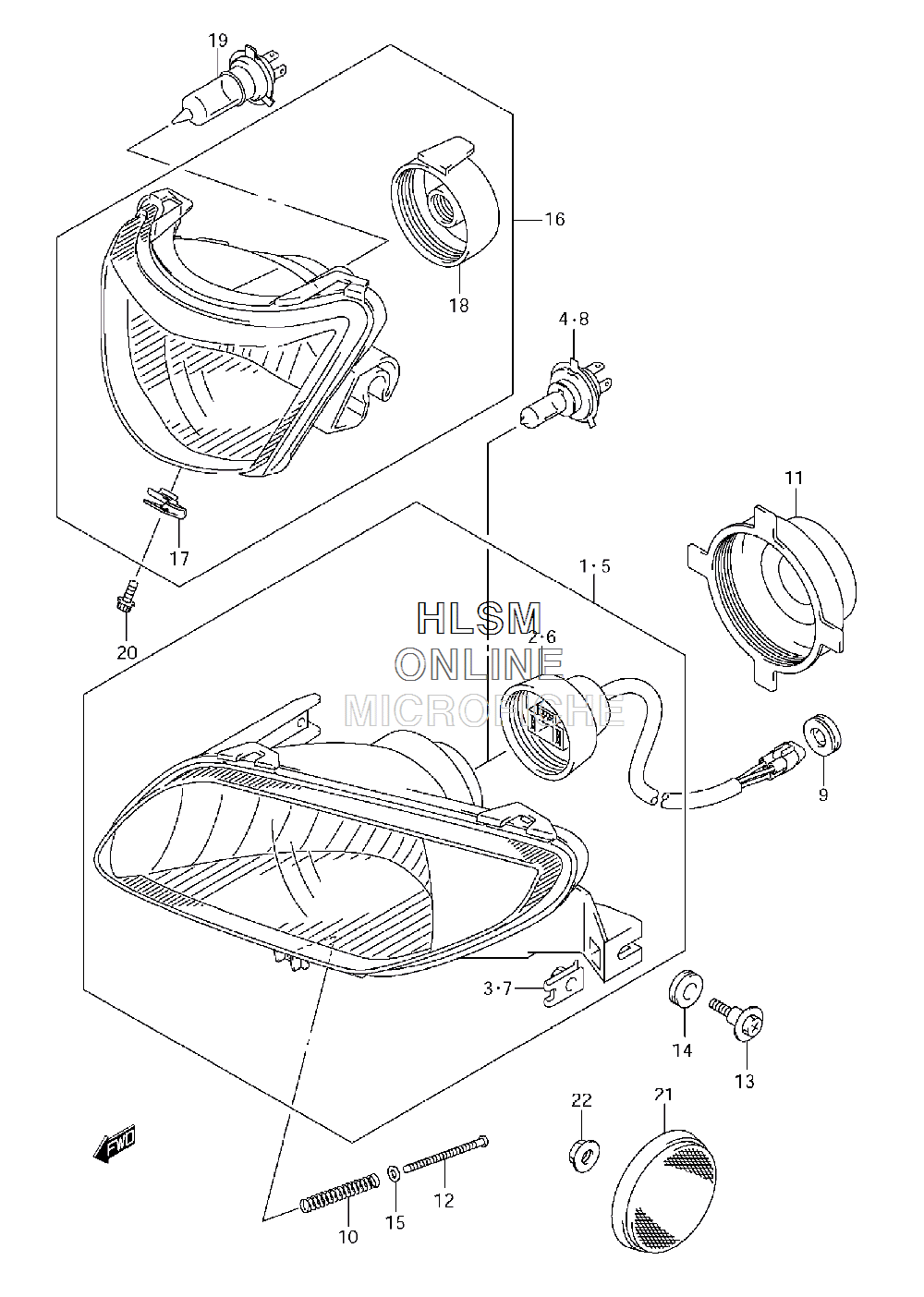

HEADLAMP для Suzuki LT-A750XPZ KingQuad 750AXi Power Steering Limited - 2009 года выпуска
-
№АртикулНазвание
-
135100-31G90-999 HEADLAMP ASSY, R (INC 2-3)HEADLAMP ASSY, R (INC 2-3)
-
235171-31GM1 CORD ASSY, RCORD ASSY, R
-
335157-31G90 NUTNUT
-
409471-12101 BULB (12V35/35W)BULB (12V35/35W)
-
535300-31G90-999 HEADLAMP ASSY, L (INC 6-7)HEADLAMP ASSY, L (INC 6-7)
-
635171-31GH1 CORD ASSY, LCORD ASSY, L
-
735157-31G90 NUTNUT
-
809471-12101 BULB (12V35/35W)BULB (12V35/35W)
-
909308-07011 GROMMET, HEADLAMP HOUSINGGROMMET, HEADLAMP HOUSING
-
1035154-31300 SPRING, HEADLAMP ADJUSTSPRING, HEADLAMP ADJUST
-
1135174-31G00 COVER, HEADLAMP HOUSINGCOVER, HEADLAMP HOUSING
-
1209125-04031 SCREW, HEADLAMP ADJUSTSCREW, HEADLAMP ADJUST
-
1309139-06118 SCREW, HEADLAMPSCREW, HEADLAMP
-
1409320-10501 CUSHION, HEADLAMPCUSHION, HEADLAMP
-
1508322-0104A WASHER, HEADLAMPWASHER, HEADLAMP
-
1635100-31GB0-999 HEADLAMP ASSY, AUX (INC 17-18)HEADLAMP ASSY, AUX (INC 17-18)
-
1735157-31GB0 CLIPCLIP
-
1835174-31GB0 COVERCOVER
-
1909471-12101 BULB (12V,35/35W)BULB (12V,35/35W)
-
2007120-0512B BOLT, HEADLAMP ADJUSTBOLT, HEADLAMP ADJUST
-
2135950-14A10 REFLEX REFLECTOR ASSY (CANADA ONLY)REFLEX REFLECTOR ASSY (CANADA ONLY)
-
2208316-1005B NUT, FRONT SIDE RRNUT, FRONT SIDE RR
