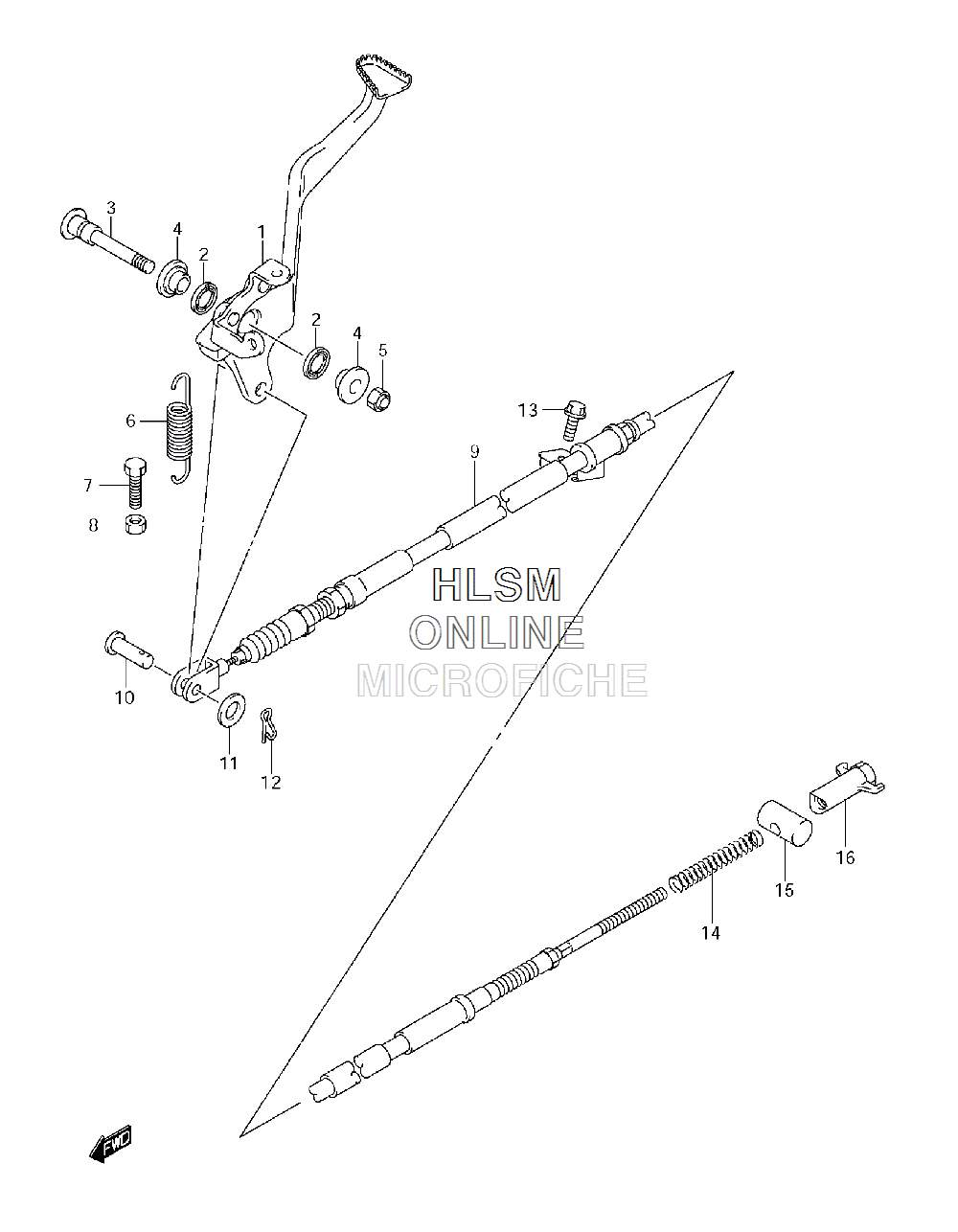

BRAKE - REAR PEDAL для Suzuki LT-A750XPZ KingQuad 750AXi Power Steering Limited - 2009 года выпуска
-
№АртикулНазвание
-
143100-31GB0 PEDAL, BRAKE (INC 2)PEDAL, BRAKE (INC 2)
-
209284-15006 DUST SEALDUST SEAL
-
343142-31GB0 SHAFT, PEDALSHAFT, PEDAL
-
443212-31GB0 WASHERWASHER
-
509159-10115 NUTNUT
-
609443-11036 SPRING, RETURNSPRING, RETURN
-
701500-0620A BOLT, ADJUSTERBOLT, ADJUSTER
-
808310-0006A NUTNUT
-
958510-31G00 CABLE, REAR BRAKECABLE, REAR BRAKE
-
1009200-05001 PIN, FRONTPIN, FRONT
-
1108322-0106B WASHERWASHER
-
1209385-06012 COTTER PINCOTTER PIN
-
1301547-0616A BOLT, CABLEBOLT, CABLE
-
1409440-08042 SPRINGSPRING
-
1509209-13006 PINPIN
-
1609150-06015 NUTNUT
