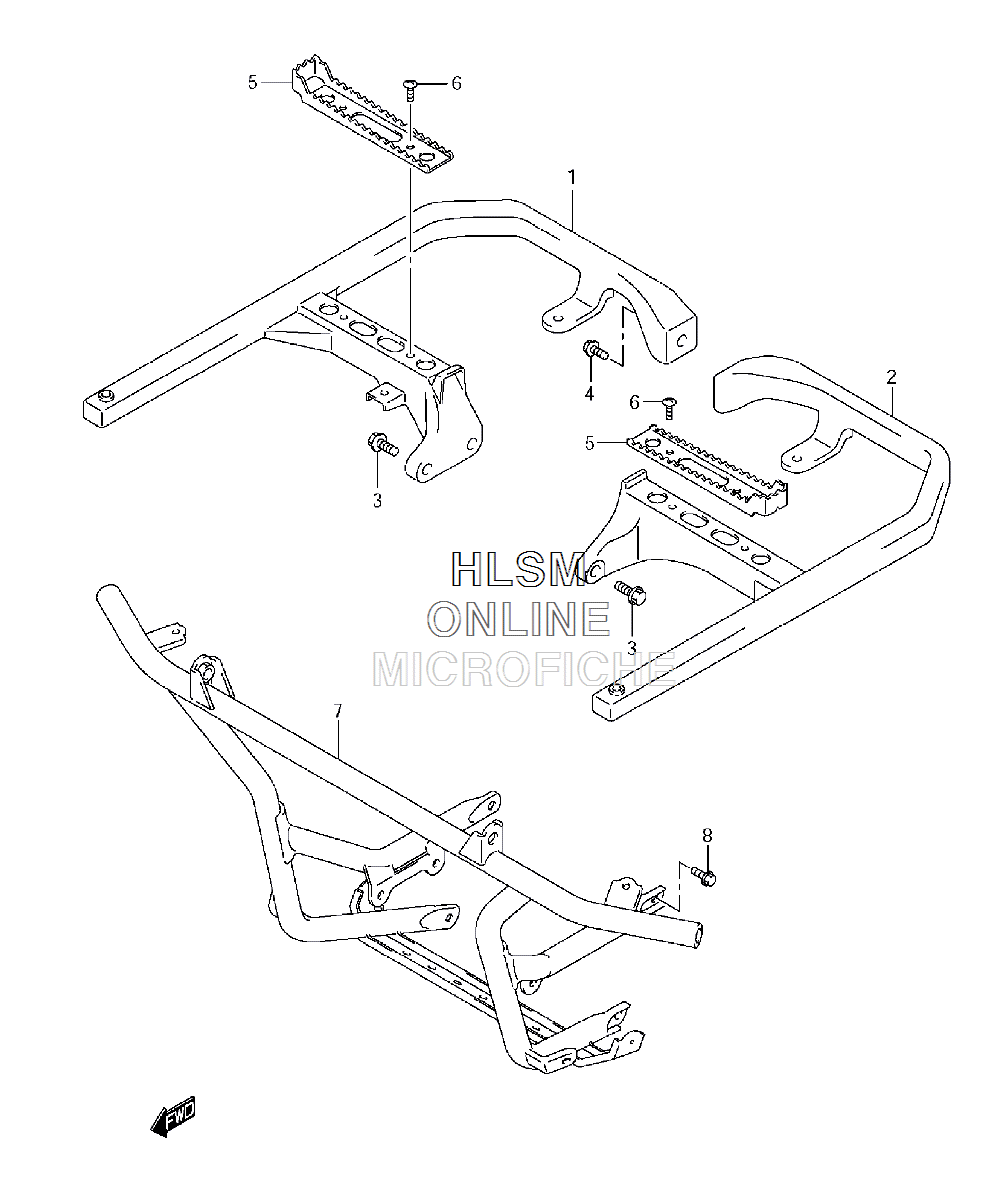

FOOTREST W/ BUMBER для Suzuki LT-A750XPZ KingQuad 750AXi Power Steering Limited - 2009 года выпуска
-
№АртикулНазвание
-
143511-31G20 FOOTREST, FRONT RIGHT HANDFOOTREST, FRONT RIGHT HAND
-
243521-31G20 FOOTREST, FRONT LEFT HANDFOOTREST, FRONT LEFT HAND
-
309103-10378 BOLT, FRONTBOLT, FRONT
-
409103-08286 BOLT, REARBOLT, REAR
-
543511-31G01 PLATE, FOOTRESTPLATE, FOOTREST
-
602142-0612B SCREWSCREW
-
743990-31GB0 GRIP, FRONTGRIP, FRONT
-
809103-08283 BOLTBOLT
