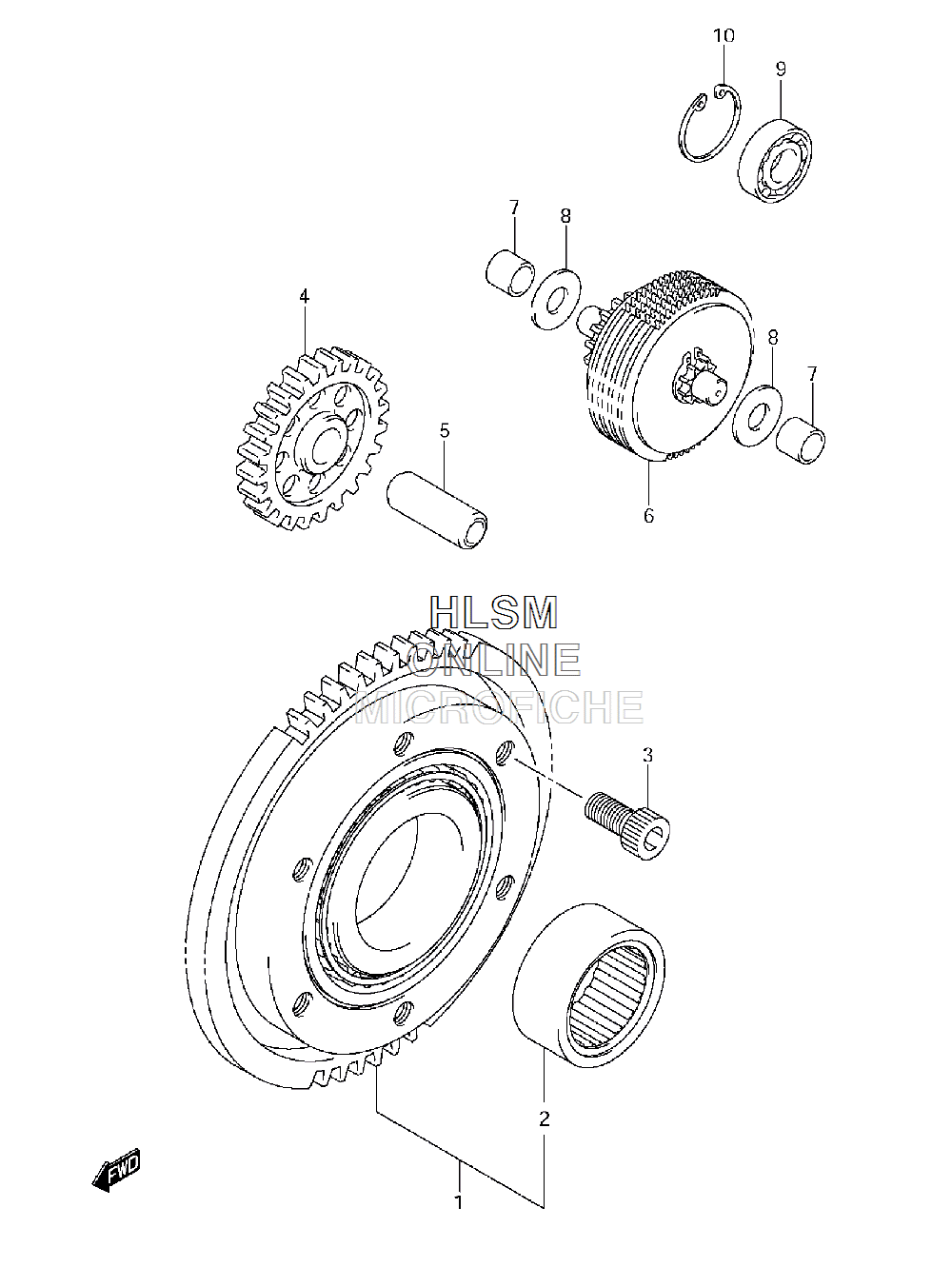

STARTER CLUTCH для Suzuki LT-A750XPZ KingQuad 750AXi Power Steering Limited - 2009 года выпуска
-
№АртикулНазвание
-
112600-31810 CLUTCH SET, STARTER (INC 2)CLUTCH SET, STARTER (INC 2)
-
209263-35042 BEARING, 35X45X20BEARING, 35X45X20
-
309106-08106 BOLT, 8X20BOLT, 8X20
-
412612-31G00 GEAR, STARTER IDLE NO.2GEAR, STARTER IDLE NO.2
-
509206-12007 PIN, STARTER IDLE GEAR NO.2PIN, STARTER IDLE GEAR NO.2
-
612600-31G00 LIMITER ASSY, STARTER IDLE GEARLIMITER ASSY, STARTER IDLE GEAR
-
712618-31G00 BUSH, LIMITER GEAR SHAFTBUSH, LIMITER GEAR SHAFT
-
808211-10221 WASHERWASHER
-
909262-12001 BEARING, 12X28X8BEARING, 12X28X8
-
1008331-4128A CIRCLIPCIRCLIP
