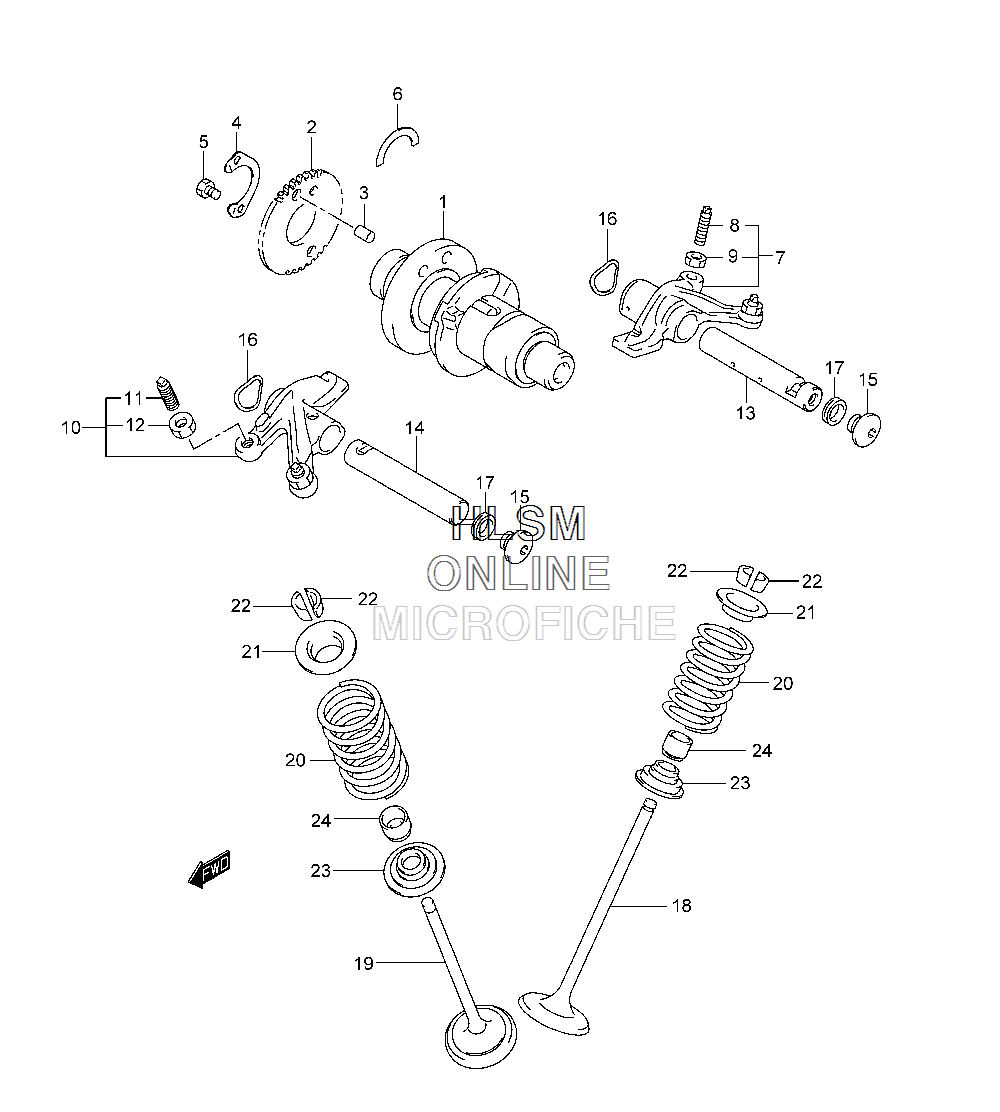

CAM SHAFT - W/ VALVES для Suzuki LT-F400FZ KingQuad 400FSi (CAMO - TRUE TIMBER XD3) - 2013 года выпуска
-
№АртикулНазвание
-
112710-27H10 CAMSHAFTCAMSHAFT
-
212741-38F00 SPROCKET, CAM DRIVE (NT:34)SPROCKET, CAM DRIVE (NT:34)
-
309261-05005 PIN (5X8)PIN (5X8)
-
412747-44B00 WASHERWASHER
-
509100-06166 BOLT (6X10.5)BOLT (6X10.5)
-
609390-22002 C RINGC RING
-
712840-27H00 ARM, VALVE ROCKER INTAKEARM, VALVE ROCKER INTAKE
-
812842-17C50 ...SCREW...SCREW
-
912843-27A00 ...NUT...NUT
-
1012850-27H00 ARM, VALVE ROCKER EXHAUSTARM, VALVE ROCKER EXHAUST
-
1112842-17C50 ...SCREW...SCREW
-
1212843-27A00 ...NUT...NUT
-
1312861-14D50 SHAFT, ROCKER ARM INTAKESHAFT, ROCKER ARM INTAKE
-
1412871-14D50 SHAFT, ROCKER ARM EXHAUSTSHAFT, ROCKER ARM EXHAUST
-
1509248-14012 PLUG (14X12)PLUG (14X12)
-
1609164-12018 WASHERWASHER
-
1709168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
1812911-14D10 VALVE, INTAKEVALVE, INTAKE
-
1912912-14D01 VALVE, EXHAUSTVALVE, EXHAUST
-
2012921-27H00 SPRING VALVESPRING VALVE
-
2112931-27A20 RETAINER, SPRINGRETAINER, SPRING
-
2212932-27A00 COTTER, VALVE SPRINGCOTTER, VALVE SPRING
-
2312933-81400 SEAT, SPRINGSEAT, SPRING
-
2409289-05011 OIL SEAL (5X10X9.7)OIL SEAL (5X10X9.7)
