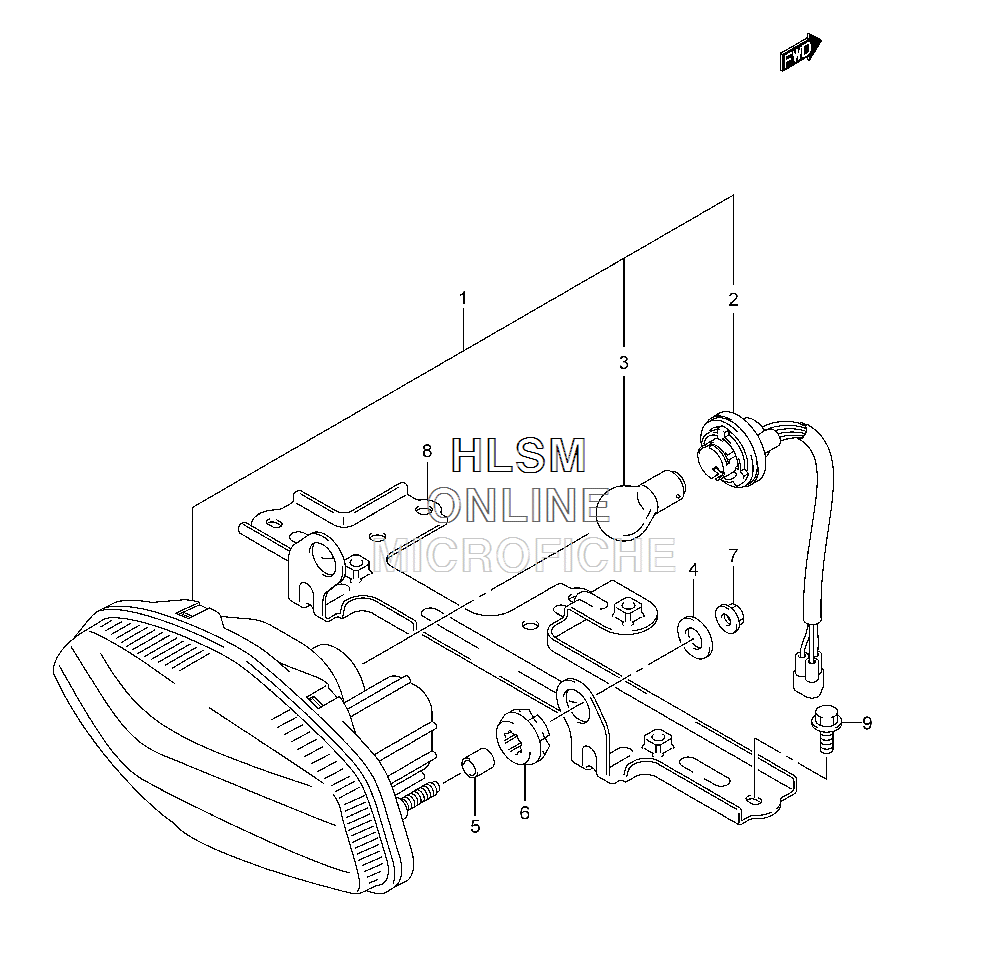

TAILLIGHT ASSY. для Suzuki LT-F400FZ KingQuad 400FSi (CAMO - TRUE TIMBER XD3) - 2013 года выпуска
-
№АртикулНазвание
-
135710-31G00 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
235718-03G30 ...SOCKET & BULB...SOCKET & BULB
-
309471-12128 ...BULB (12V,21/5W)...BULB (12V,21/5W)
-
409160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
509180-06264 SPACER (6.5X9X10.5)SPACER (6.5X9X10.5)
-
609320-09018 CUSHIONCUSHION
-
708316-1006A NUTNUT
-
835720-27H00 BRACKET, REAR COMBINATION LAMPBRACKET, REAR COMBINATION LAMP
-
901550-0612A BOLTBOLT
