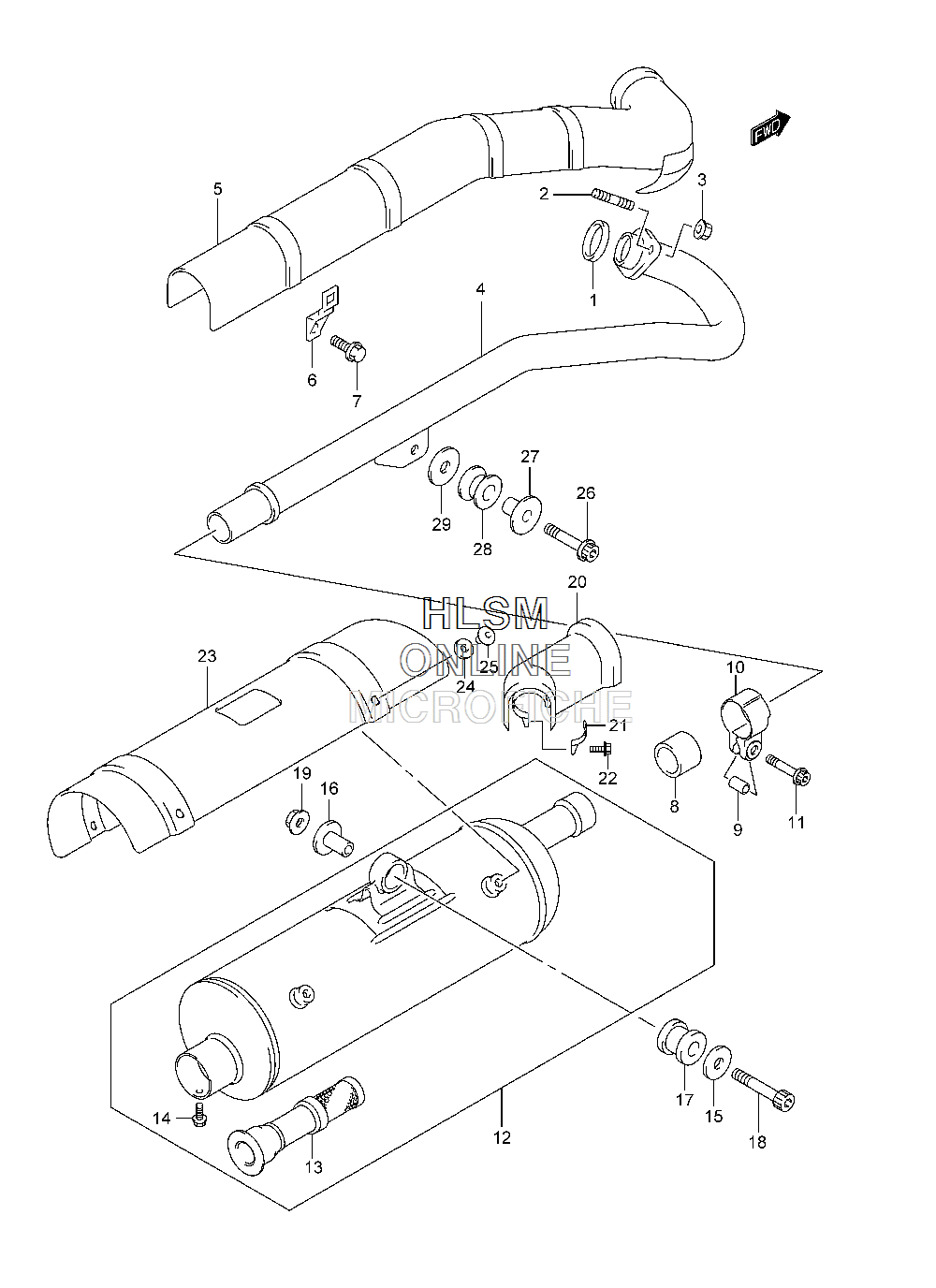

MUFFLER для Suzuki LT-F400FZ KingQuad 400FSi (CAMO - TRUE TIMBER XD3) - 2013 года выпуска
-
№АртикулНазвание
-
114181-18C00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
201421-0825A STUD BOLTSTUD BOLT
-
308319-3108A NUTNUT
-
414150-27H00 PIPE, EXHAUSTPIPE, EXHAUST
-
514180-38F50 COVER, EXHAUST PIPE FRONTCOVER, EXHAUST PIPE FRONT
-
614185-38F10 CLAMPCLAMP
-
701550-0612A BOLTBOLT
-
814771-38F00 CONNECTOR, MUFFLERCONNECTOR, MUFFLER
-
914458-45G01 SPACERSPACER
-
1014459-38F10 CLAMP, CONNECTORCLAMP, CONNECTOR
-
1107120-0840A BOLTBOLT
-
1214310-38F30 BODY, MUFFLERBODY, MUFFLER
-
1314850-38F30 ...ARRESTER...ARRESTER
-
1407120-0508B ...BOLT...BOLT
-
1509160-08503 WASHER (8.5X30X2.3)WASHER (8.5X30X2.3)
-
1609180-08152 SPACER (8.6X12X24.2)SPACER (8.6X12X24.2)
-
1709320-12082 CUSHIONCUSHION
-
1807130-0845A BOLTBOLT
-
1908319-3108A NUTNUT
-
2014790-27H00 COVER, MUFFLER FRONTCOVER, MUFFLER FRONT
-
2114185-38F10 CLAMPCLAMP
-
2201550-0612A BOLTBOLT
-
2314880-38F10 COVER, MUFFLER REARCOVER, MUFFLER REAR
-
2409168-06120 GASKET (5.8X13X1.4)GASKET (5.8X13X1.4)
-
2509139-06076 SCREW (6X10)SCREW (6X10)
-
2609106-08133 BOLT (8X35)BOLT (8X35)
-
2709180-08151 SPACER (8.6X12X17.5)SPACER (8.6X12X17.5)
-
2809320-12043 CUSHIONCUSHION
-
2909160-08135 WASHER (8.5X28X1.6)WASHER (8.5X28X1.6)
