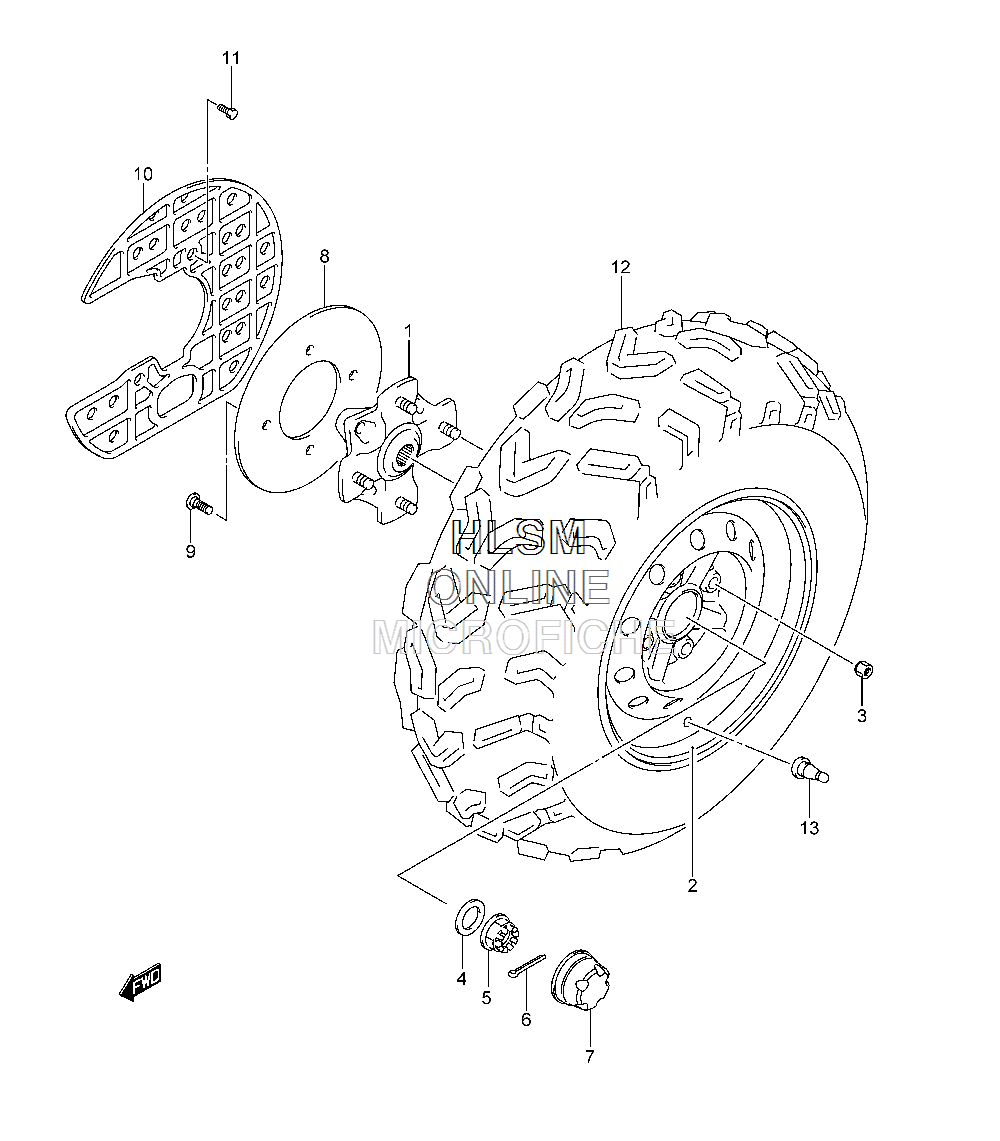

WHEEL - FRONT для Suzuki LT-F400FZ KingQuad 400FSi (CAMO - TRUE TIMBER XD3) - 2013 года выпуска
-
№АртикулНазвание
-
154110-27H00 HUB, FRONT WHEELHUB, FRONT WHEEL
-
255310-38F30-291 RIM, FRONT WHEEL (12X6.0AT) (BLACK)RIM, FRONT WHEEL (12X6.0AT) (BLACK)
-
309140-10021 NUTNUT
-
409164-18004 WASHERWASHER
-
509141-18010 NUTNUT
-
604111-4035A COTTER PINCOTTER PIN
-
754725-09F01 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
859211-38F20 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
909106-08160 BOLT (8X21)BOLT (8X21)
-
1059231-27H00 COVER, FRONT DISCCOVER, FRONT DISC
-
1109139-06158 SCREW (6X16)SCREW (6X16)
-
1255110-38FC0 TIRE, FRONT (AT25X8-12)TIRE, FRONT (AT25X8-12)
-
1343130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
