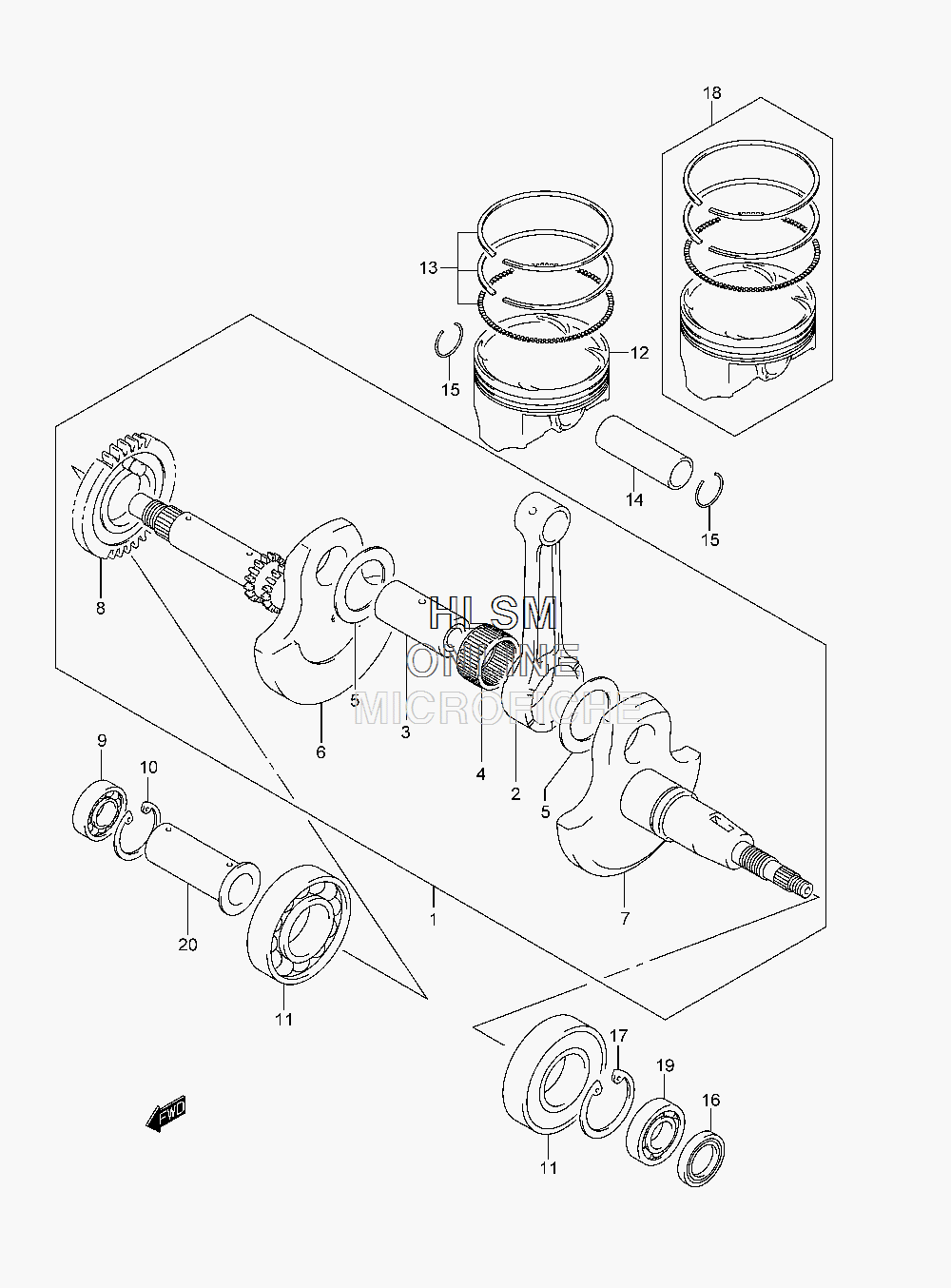

CRANKSHAFT W/ PISTON для Suzuki LT-F400FZ KingQuad 400FSi (CAMO - TRUE TIMBER XD3) - 2013 года выпуска
-
№АртикулНазвание
-
112200-38861 CRANKSHAFT SETCRANKSHAFT SET
-
212161-14D00 ...ROD, CONNECTING...ROD, CONNECTING
-
312210-14D03 ...PIN, CRANK...PIN, CRANK
-
409263-34005 ...BEARING (34X43X22)...BEARING (34X43X22)
-
509160-34003 ...WASHER (34X52X1)...WASHER (34X52X1)
-
612220-38F61 ...CRANKSHAFT, RH (NT:24)...CRANKSHAFT, RH (NT:24)
-
712261-38F60 ...CRANKSHAFT, LH...CRANKSHAFT, LH
-
812661-38F01 ...GEAR, CRANK BALANCER DRIVE (NT:37)...GEAR, CRANK BALANCER DRIVE (NT:37)
-
909262-15014 BEARING (15X35X11)BEARING (15X35X11)
-
1008331-41359 CIRCLIPCIRCLIP
-
1109262-35038 BEARING (35X72X17)BEARING (35X72X17)
-
1212111-38F21-0F0 PISTONPISTON
-
1312140-38F10 RING SET, PISTONRING SET, PISTON
-
1412151-24A00 PIN, PISTONPIN, PISTON
-
1509381-20004 CIRCLIPCIRCLIP
-
1609283-25095 OIL SEAL (25X42X6)OIL SEAL (25X42X6)
-
1708331-41479 CIRCLIPCIRCLIP
-
1812100-38F21-050 PISTON SET (OS:0.5)PISTON SET (OS:0.5)
-
1909262-25006 BEARING (25X47X8)BEARING (25X47X8)
-
2012222-38F50 SPACER, CRANKSHAFT, RHSPACER, CRANKSHAFT, RH
