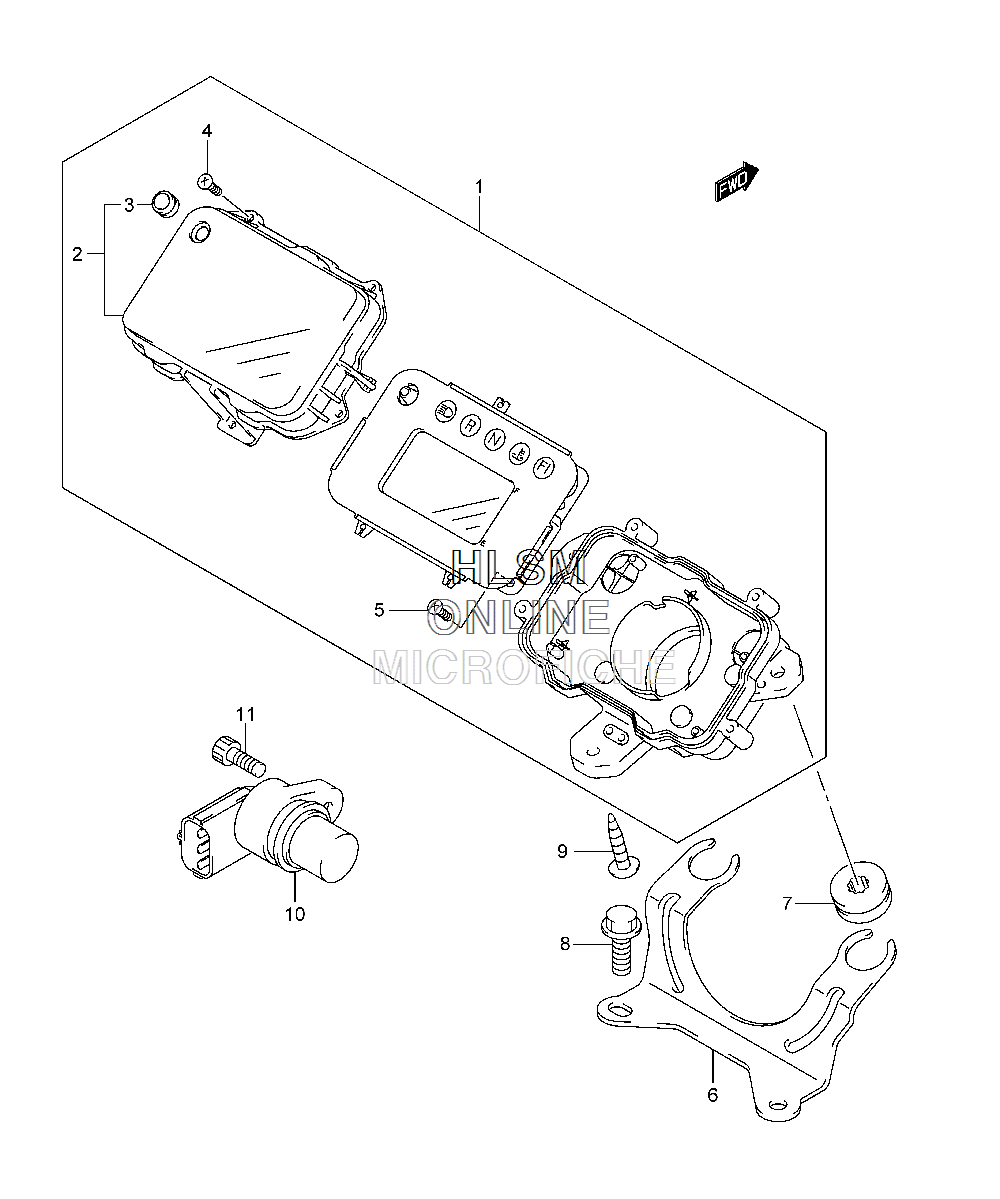

SPEEDOMETER для Suzuki LT-F400FZ KingQuad 400FSi (CAMO - TRUE TIMBER XD3) - 2013 года выпуска
-
№АртикулНазвание
-
134100-27HE0 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
234150-27HA0 ...CASE, UPPER...CASE, UPPER
-
334124-03GE0 ......SWITCH, RUBBER......SWITCH, RUBBER
-
434183-09F00 ...SCREW (3X12)...SCREW (3X12)
-
534184-27EE0 ...SCREW (3X12)...SCREW (3X12)
-
634162-27H00 BRACKET, SPEEDOMETERBRACKET, SPEEDOMETER
-
734955-13E00 CUSHION, METER NO.1CUSHION, METER NO.1
-
801550-0616A BOLTBOLT
-
903541-0516A SCREWSCREW
-
1034990-27H00 SENSOR, SPEEDSENSOR, SPEED
-
1107130-0616A BOLTBOLT
