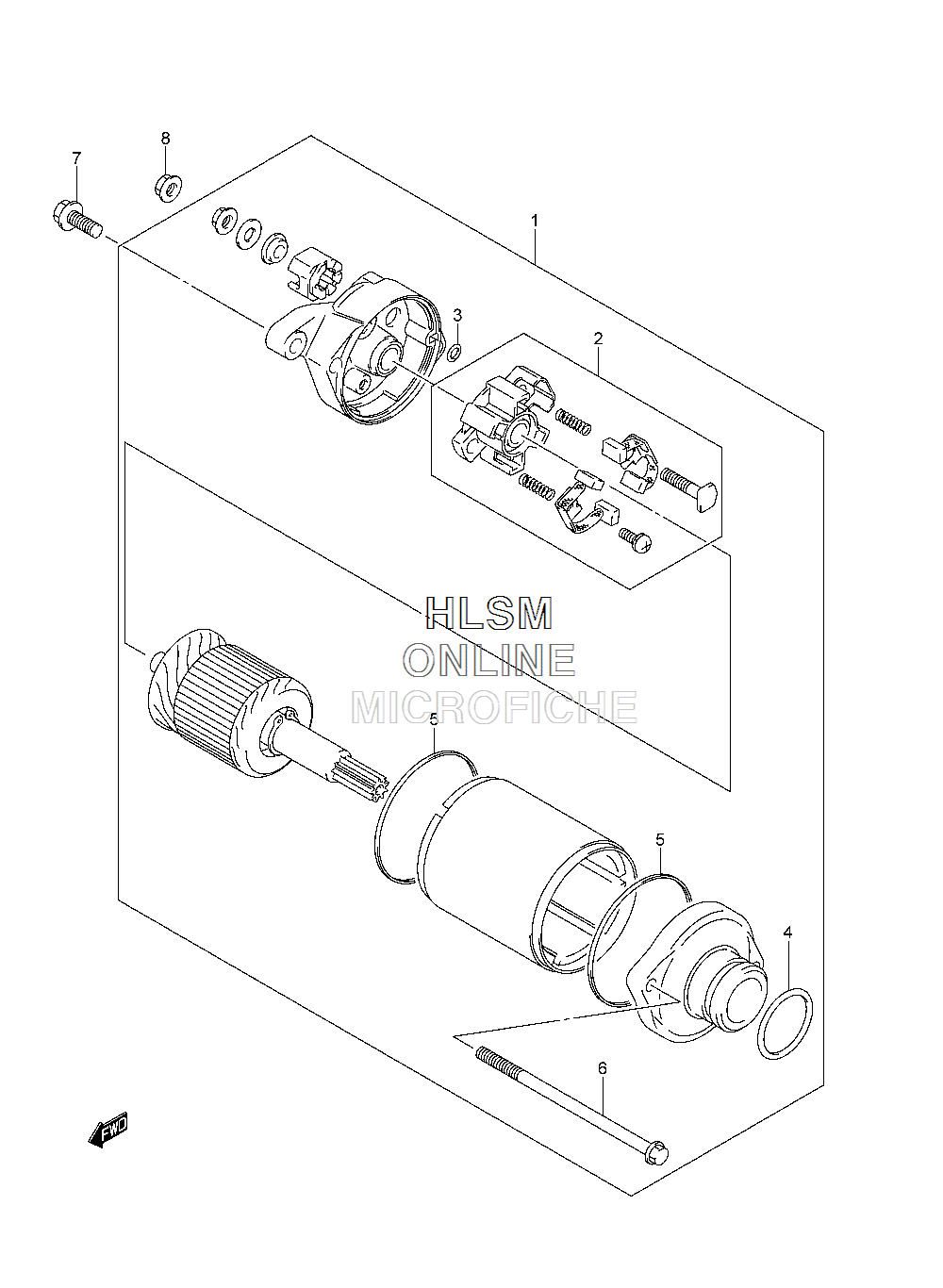

STARTING MOTOR для Suzuki LT-F400FZ KingQuad 400FSi (CAMO - TRUE TIMBER XD3) - 2013 года выпуска
-
№АртикулНазвание
-
131100-38F10 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231132-38F10 ...BRUSH HOLDER SET...BRUSH HOLDER SET
-
331143-49040 ...O-RING...O-RING
-
431156-98E00 ...O-RING...O-RING
-
531264-38F10 ...SQUARE RING...SQUARE RING
-
631280-38F10 ...SET BOLT...SET BOLT
-
701547-0625A BOLTBOLT
-
808361-3506A NUTNUT
Все узлы модели:
- AIR CLEANER
- BATTERY
- BRAKE - FRONT CALIPER
- BRAKE - FRONT HOSE
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR PEDAL
- CAM CHAIN
- CAM SHAFT - W/ VALVES
- CARRIER - FRONT / REAR
- CARRIER - FRONT / REAR (CANADA)
- CLUTCH
- COOLING FAN
- COVER - RECOIL STARTER
- CRANK BALANCER
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- DIFFERENTIAL - FRONT
- DIFFERENTIAL - REAR
- DRIVE SHAFT - FRONT
- DRIVESHAFT - REAR
- ELECTRICAL
- ELECTRICAL - WIRING HARNESS
- ELECTRICAL - WIRING HARNESS (CANADA)
- FENDER - FRONT
- FENDER - FRONT (CANADA)
- FENDER - REAR
- FENDER - REAR (CANADA)
- FOOTREST W/ BUMBER
- FRAME
- FUEL PUMP
- FUEL TANK
- GASKET SET
- GEAR SHIFTING - FORKS
- GEAR SHIFTING - FORKS (CANADA)
- GEAR SHIFTING - SHAFT
- HANDLEBAR - LEVERS / SWITCHES
- HANDLEBAR W/ CABLES
- HEADLAMP
- HEADLAMP (CANADA)
- HEADLIGHT HOUSING - FRONT
- LABELS
- LABELS (CANADA)
- MAGNETO
- MUDGUARD
- MUFFLER
- OIL COOLER
- OIL PUMP
- OPTIONAL
- SEAT
- SHIFT LEVER
- SPEEDOMETER
- SPEEDOMETER (CANADA)
- STARTER CLUTCH
- • STARTING MOTOR
- STEERING KNUCKLE W/ TIE RODS
- STEERING SHAFT
- SUSPENSION - FRONT ARM W/ SHOCK
- SUSPENSION - REAR SWING ARM
- TAILLIGHT ASSY.
- TAILLIGHT ASSY. (CANADA)
- THROTTLE BODY
- TRANSMISSION (1)
- TRANSMISSION (2)
- WHEEL - FRONT
- WHEEL - LEFT REAR
- WHEEL - RIGHT REAR W/ AXLE
