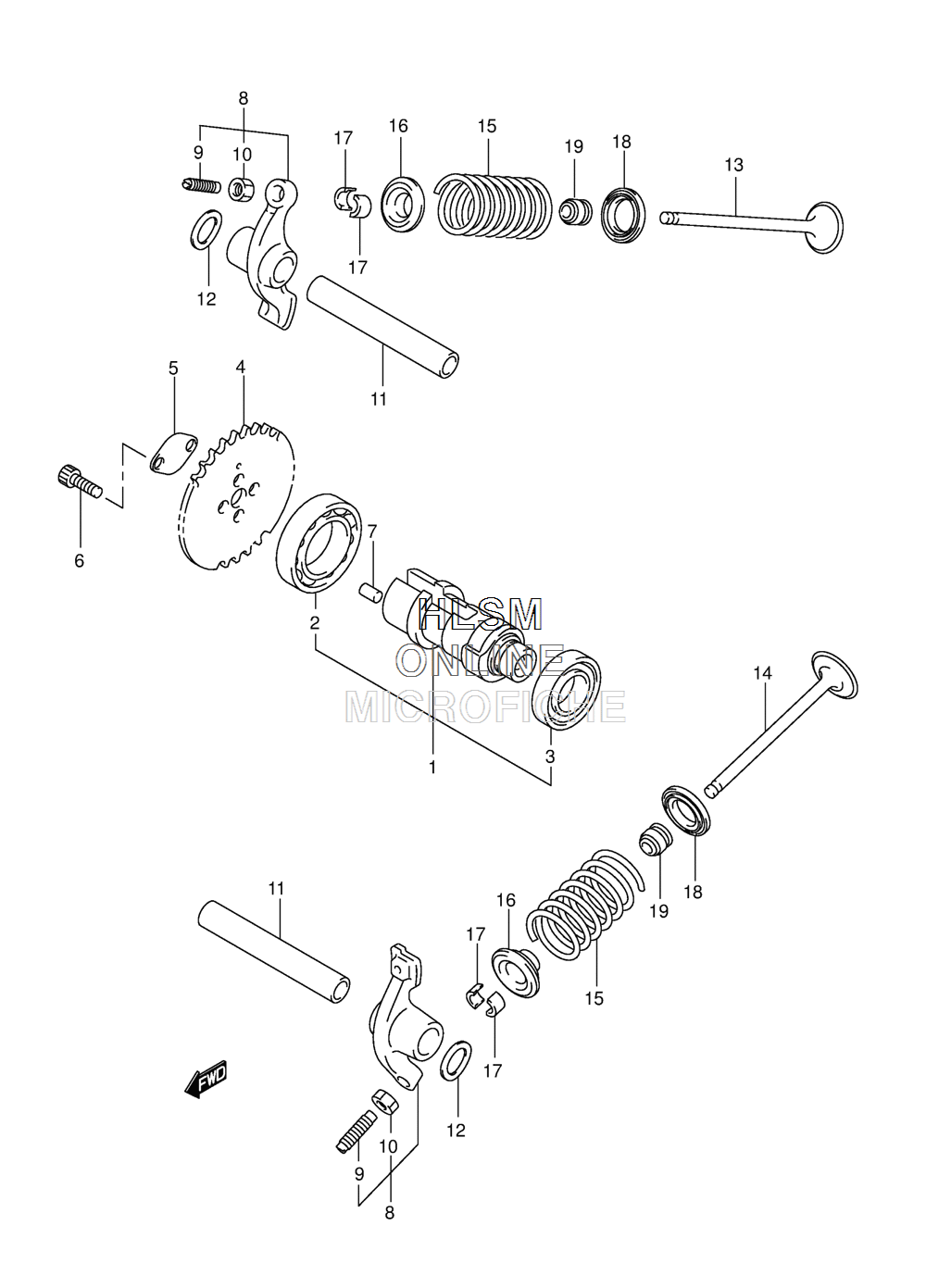

CAM SHAFT - W/ VALVES для Suzuki LT-Z90 Quad Sport 90 - 2014 года выпуска
-
№АртикулНазвание
-
112710-08H00 CAMSHAFTCAMSHAFT
-
209262-15041 BEARINGBEARING
-
308113-69050 BEARING B1 25X42X9BEARING B1 25X42X9
-
412741-33G00 SPROCKET, CAMSHAFTSPROCKET, CAMSHAFT
-
512714-08H00 WASHERWASHER
-
609106-05028 BOLT,5X15BOLT,5X15
-
709261-05005 PIN (5X8)PIN (5X8)
-
812840-33G40 ARM, VALVE ROCKERARM, VALVE ROCKER
-
912842-33G40 SCREWSCREW
-
1012843-33G40 NUTNUT
-
1112861-33G00 SHAFT, VALVE ROCKER ARMSHAFT, VALVE ROCKER ARM
-
1209164-10012 WASHERWASHER
-
1312911-08H00 VALVE, INTAKEVALVE, INTAKE
-
1412912-08H00 VALVE, EXHAUSTVALVE, EXHAUST
-
1512921-28G20 SPRING, VALVESPRING, VALVE
-
1612931-09G10 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
1712932-27A10 COTTER, VALVECOTTER, VALVE
-
1812933-09G10 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
1909289-05008 OIL SEALOIL SEAL
