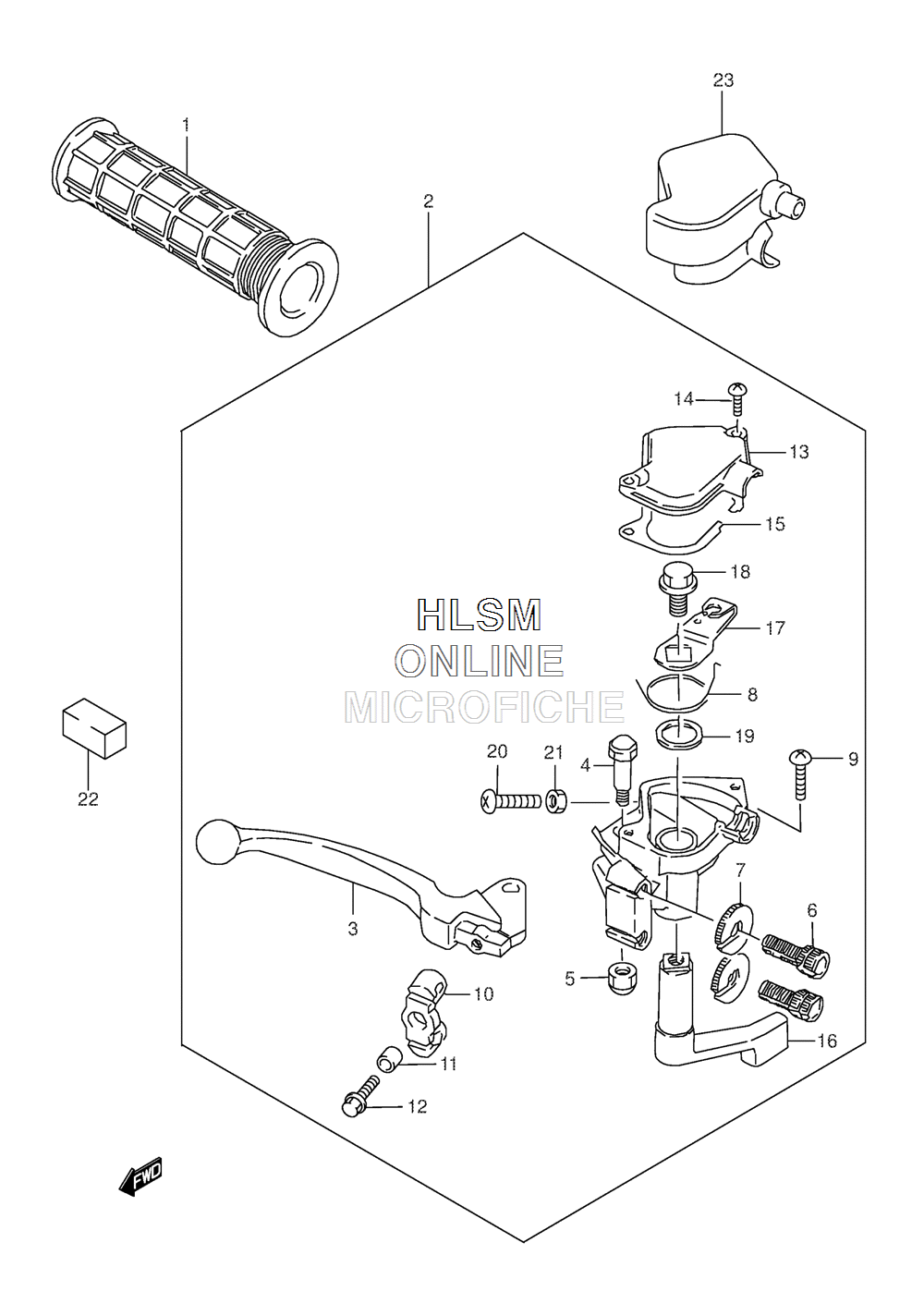

HANDLEBAR - LEVERS / SWITCHES для Suzuki LT-Z90 Quad Sport 90 - 2014 года выпуска
-
№АртикулНазвание
-
157211-21G10 GRIP, HANDLEGRIP, HANDLE
-
257300-40B21 LEVER ASSY, FRONT BRAKELEVER ASSY, FRONT BRAKE
-
357421-40B00 LEVER, FRONT BRAKELEVER, FRONT BRAKE
-
457431-49110 BOLT, BRAKE LEVER PIVOTBOLT, BRAKE LEVER PIVOT
-
508319-2106B NUTNUT
-
657441-26010 ADJUSTER, BRAKE CABLEADJUSTER, BRAKE CABLE
-
757442-44400 NUT, BRAKE CABLE ADJUSTERNUT, BRAKE CABLE ADJUSTER
-
857159-40B00 SPRING.THROTTLE LEVERSPRING.THROTTLE LEVER
-
902112-0620B SCREWSCREW
-
1057396-40B00 EQUALIZER, BRAKE CABLEEQUALIZER, BRAKE CABLE
-
1109180-06194 SPACER (6.2X8.3X6.9)SPACER (6.2X8.3X6.9)
-
1201550-0616B BOLTBOLT
-
1357121-40B00 CAP, THROTTLE CASECAP, THROTTLE CASE
-
1402112-0410B SCREWSCREW
-
1557157-40B01 GASKET, THROTTLE CASEGASKET, THROTTLE CASE
-
1657151-08H00 LEVER, THROTTLELEVER, THROTTLE
-
1757158-40B00 LEVER, THROTTLE CABLELEVER, THROTTLE CABLE
-
1801550-0812B BOLTBOLT
-
1909168-14015 WASHERWASHER
-
2009125-05066 SCREWSCREW
-
2109140-05006 NUTNUT
-
2257338-40B00 SEALSEAL
-
2357339-40B10 COVER, THROTTLE CASECOVER, THROTTLE CASE
