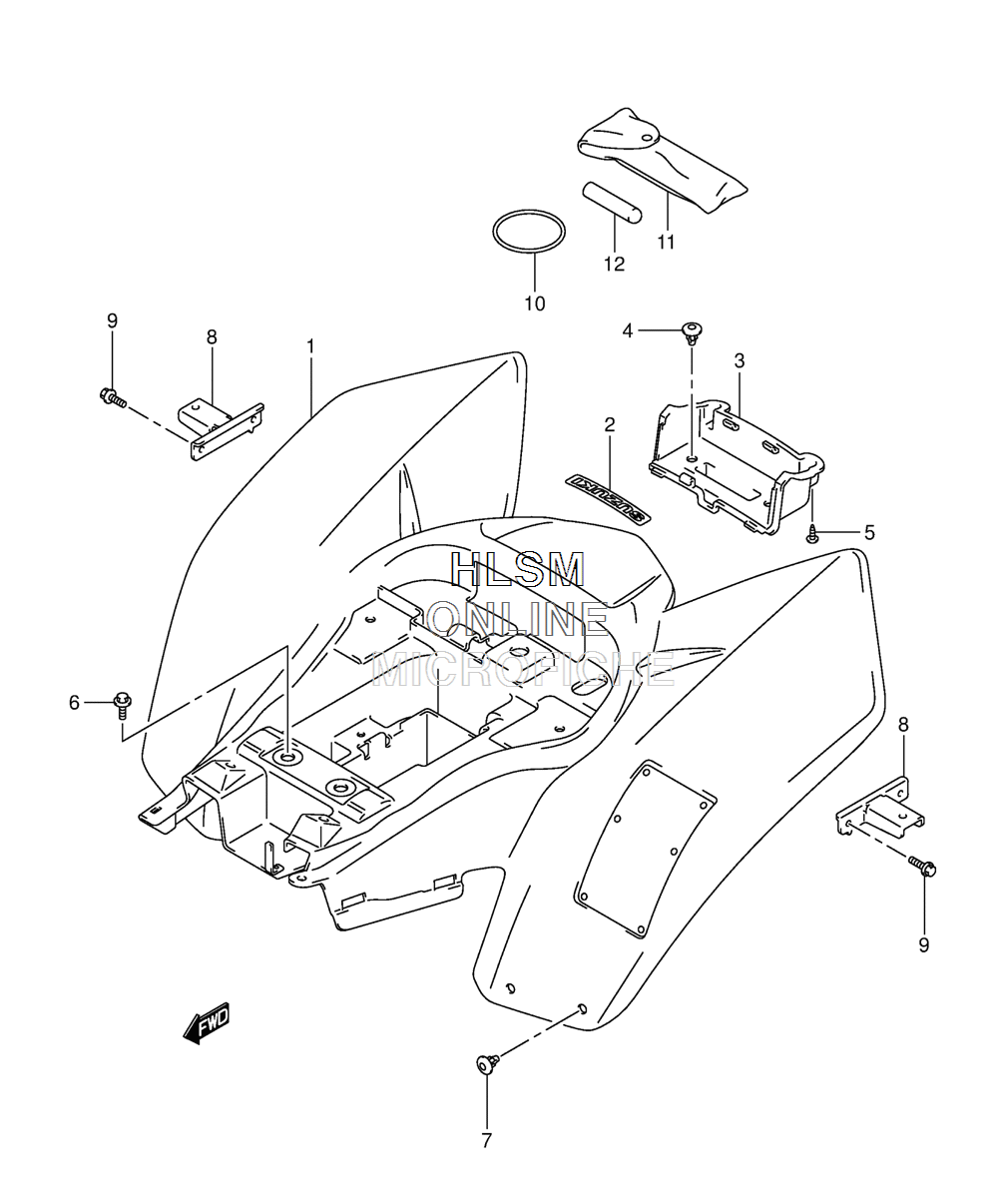

FENDER - REAR для Suzuki LT-Z90 Quad Sport 90 - 2014 года выпуска
-
№АртикулНазвание
-
163111-08H00-30H FENDER, REAR (WHITE)FENDER, REAR (WHITE)
-
268721-09A00-8YM EMBLEM SUZUKIEMBLEM SUZUKI
-
363121-08H00 FENDER, REAR LOWERFENDER, REAR LOWER
-
409409-07333 CLIPCLIP
-
503541-0516A SCREWSCREW
-
609111-06081 BOLT, FRONTBOLT, FRONT
-
709409-08335 CLIPCLIP
-
863130-08H00 BRACKET, REAR FENDERBRACKET, REAR FENDER
-
901550-0620A BOLTBOLT
-
1009280-70004 BAND, TOOLBAND, TOOL
-
1196510-08H00 TOOL ASSYTOOL ASSY
-
1296200-18A02 GAUGE, AIRGAUGE, AIR
