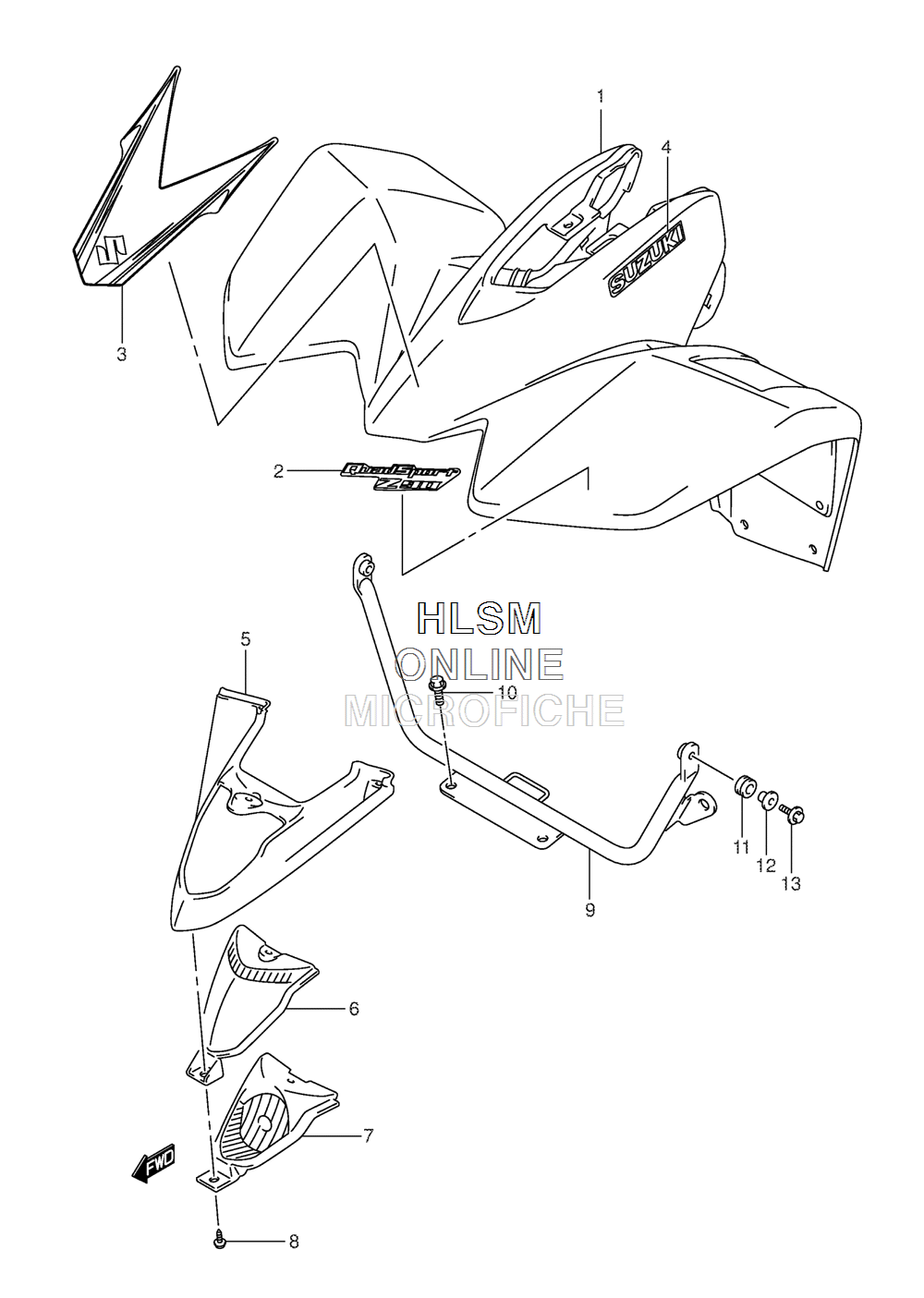

FENDER - FRONT для Suzuki LT-Z90 Quad Sport 90 - 2014 года выпуска
-
№АртикулНазвание
-
153111-08H00-30H FENDER FRONT (WHITE)FENDER FRONT (WHITE)
-
268151-08H00-HEU EMBLEMEMBLEM
-
368155-08H30-HBT TAPE, FRONTTAPE, FRONT
-
468131-43G10-8YM EMBLEM, ''SUZUKI''EMBLEM, ''SUZUKI''
-
553118-08H00-YPW COVER, CENTER (BLUE)COVER, CENTER (BLUE)
-
653119-08H00 COVER, LENSCOVER, LENS
-
753117-08H00 HOLDER, LENSHOLDER, LENS
-
803241-0516B SCREWSCREW
-
953210-08H00 BRACE, FRONT FENDERBRACE, FRONT FENDER
-
1001550-0812B BOLTBOLT
-
1109320-09016 CUSHIONCUSHION
-
1209169-06062 WASHERWASHER
-
1301550-0620A BOLTBOLT
