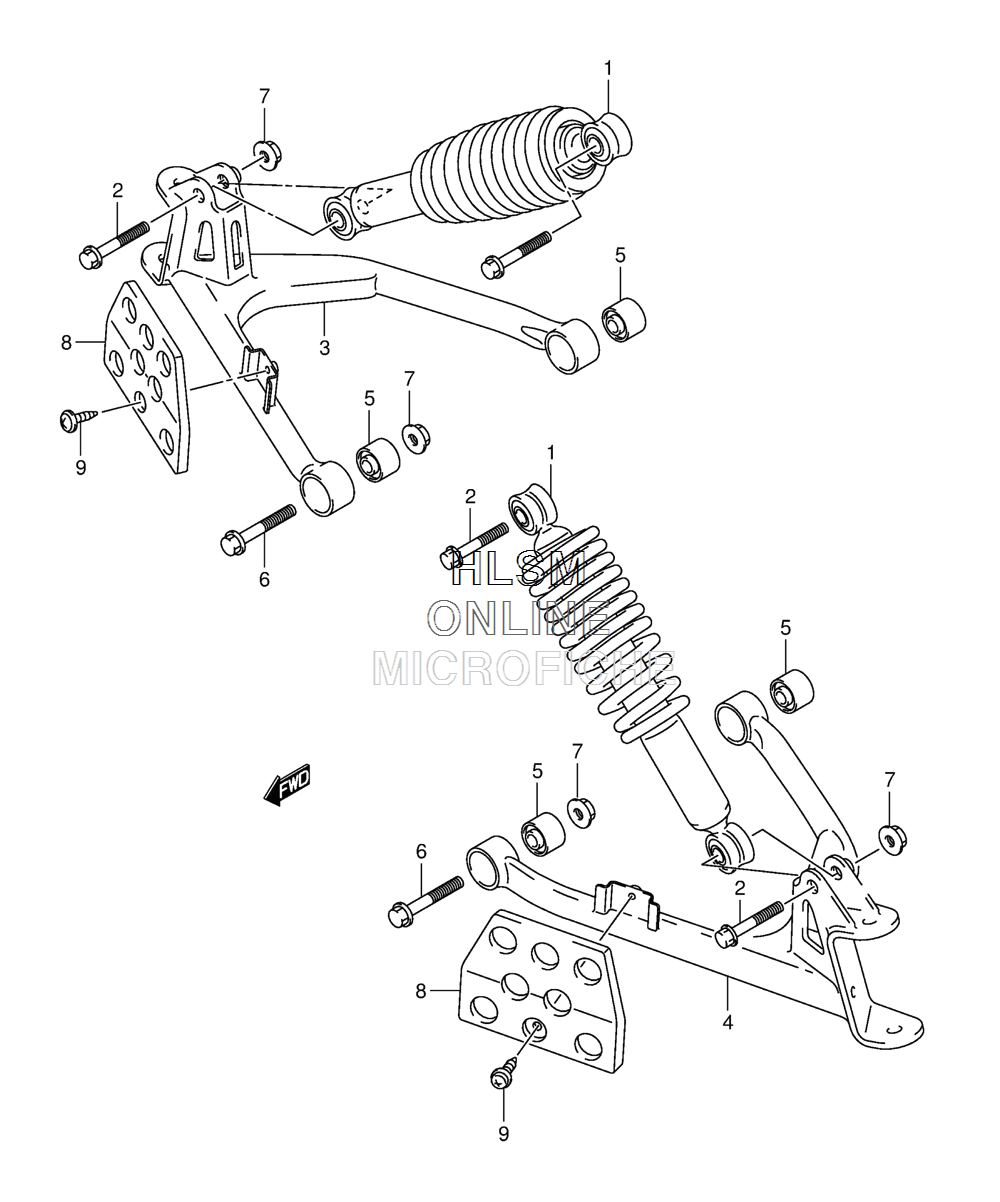

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT-Z90 Quad Sport 90 - 2014 года выпуска
-
№АртикулНазвание
-
152100-08H00-YKS ABSORBER ASSY, FRONT (RED)ABSORBER ASSY, FRONT (RED)
-
209103-10351 BOLT, (10X38)BOLT, (10X38)
-
352410-08H00-019 ARM, SUSPENSION RIGHT HAND (BLACK)ARM, SUSPENSION RIGHT HAND (BLACK)
-
452420-08H00-019 ARM, SUSPENSION LEFT HAND (BLACK)ARM, SUSPENSION LEFT HAND (BLACK)
-
509319-10049 BUSH, ARM (10X28.1X28)BUSH, ARM (10X28.1X28)
-
609103-10218 BOLT, SUSPENSION ARM (10X45)BOLT, SUSPENSION ARM (10X45)
-
708319-3110A NUT, SUSPENSION ARMNUT, SUSPENSION ARM
-
854903-08H00 PROTECTOR, SUSPENSION ARMPROTECTOR, SUSPENSION ARM
-
909111-06065 BOLT, PROTECTOR (6X16)BOLT, PROTECTOR (6X16)
