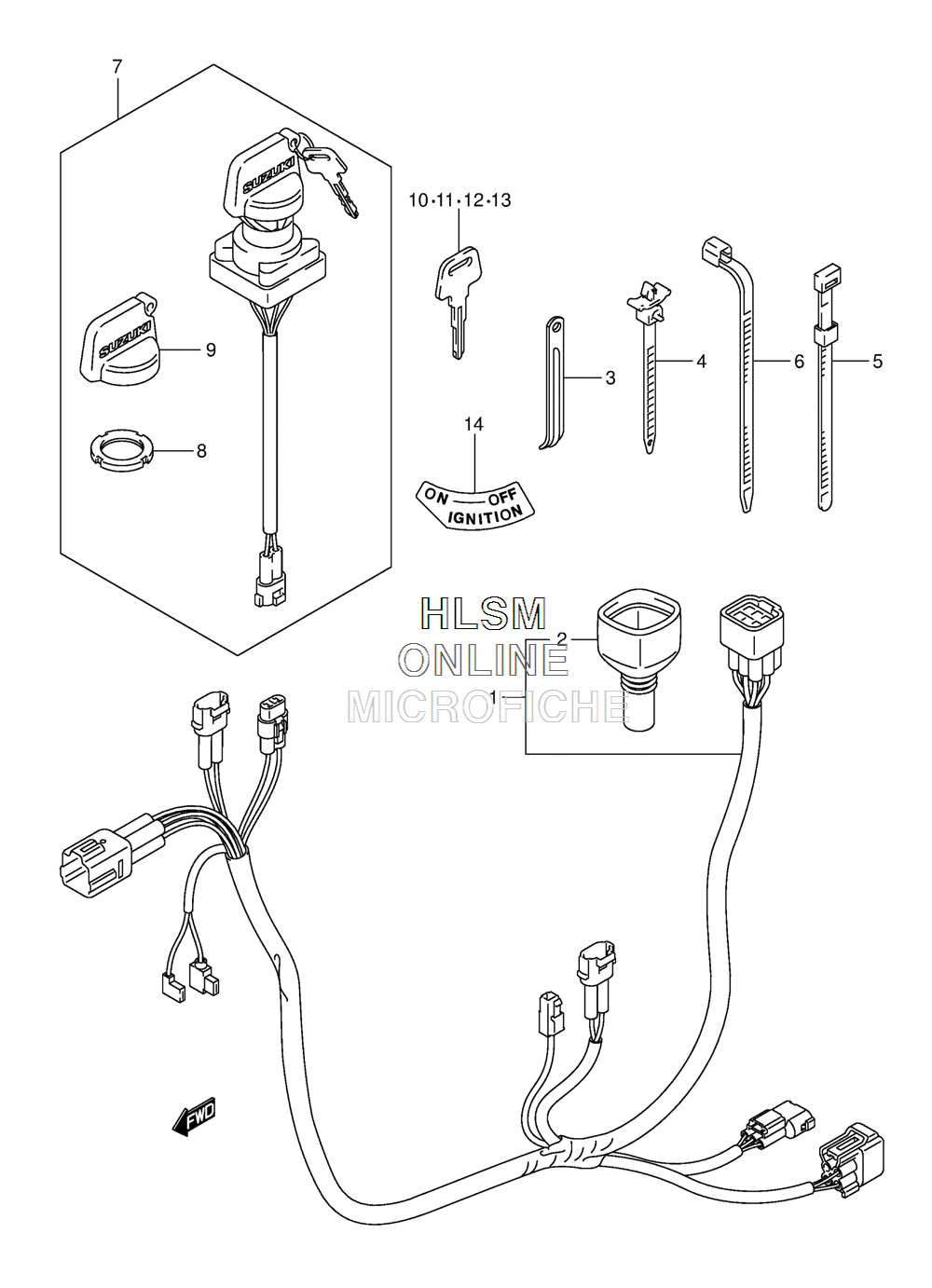

ELECTRICAL - WIRING HARNESS для Suzuki LT-Z90 Quad Sport 90 - 2014 года выпуска
-
№АртикулНазвание
-
136610-08H00 HARNESS, WIRINGHARNESS, WIRING
-
236618-33E00 COVER SPEEDOMETER COUPLERCOVER SPEEDOMETER COUPLER
-
309404-06432 CLAMP (L:65)CLAMP (L:65)
-
409407-11402 CLAMP (L:90)CLAMP (L:90)
-
509407-12402 CLAMP (L:120)CLAMP (L:120)
-
609407-14403 CLAMP (L:125)CLAMP (L:125)
-
737110-08H00 SWITCH ASSY, IGNITIONSWITCH ASSY, IGNITION
-
837112-24500 NUT, IGNITIONNUT, IGNITION
-
937142-19B00 MASCOT, KEYMASCOT, KEY
-
1037146-19B00 KEY, BLANK (TYPE:C)KEY, BLANK (TYPE:C)
-
1137146-19B10 KEY, BLANK (TYPE:D)KEY, BLANK (TYPE:D)
-
1237146-19B20 KEY, BLANK (TYPE:E)KEY, BLANK (TYPE:E)
-
1337146-19B30 KEY, BLANK (TYPE:F)KEY, BLANK (TYPE:F)
-
1437139-40B03 PLATE, CONTROLPLATE, CONTROL
