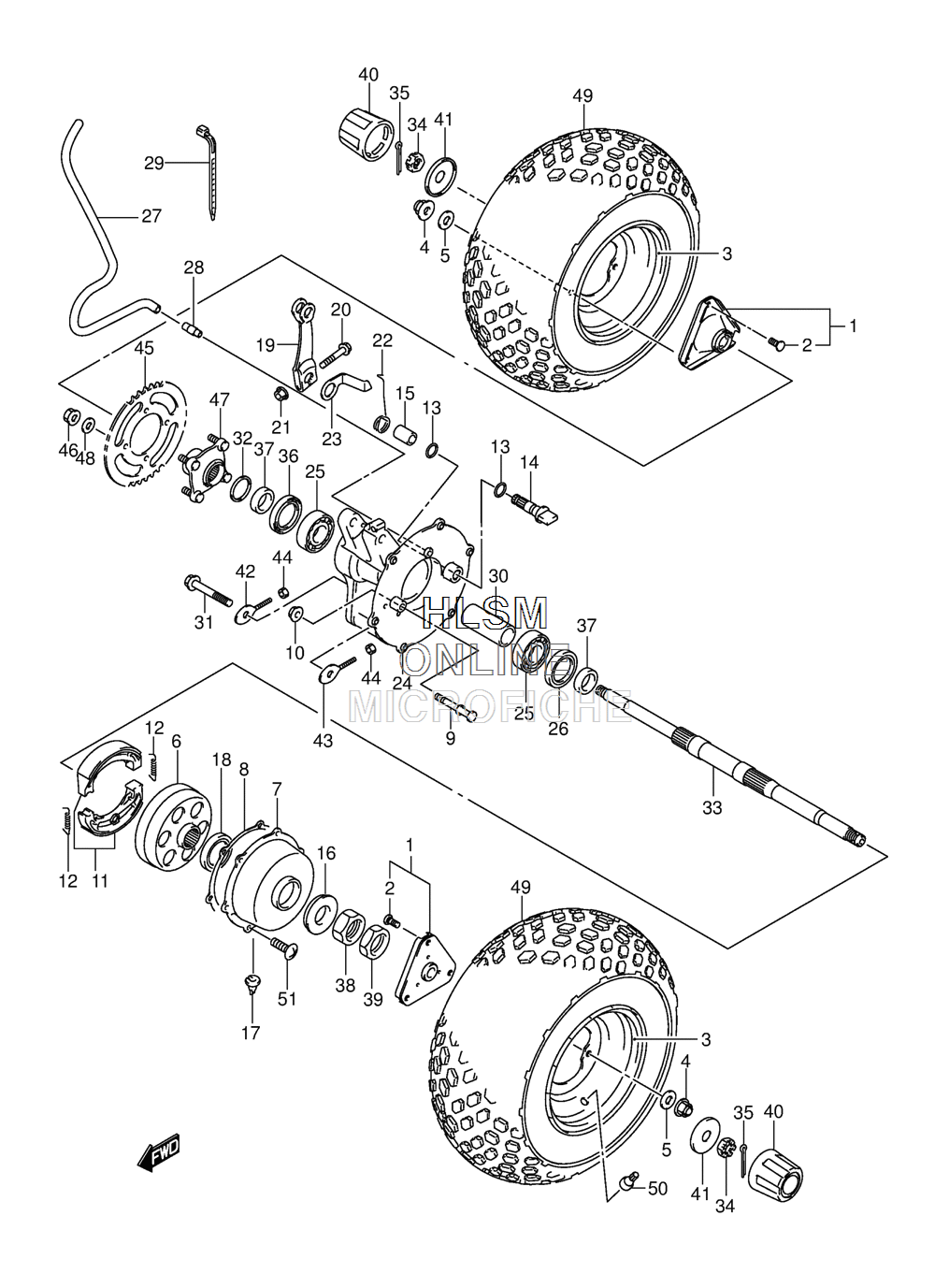

WHEEL - REAR для Suzuki LT-Z90 Quad Sport 90 - 2014 года выпуска
-
№АртикулНазвание
-
164110-40B50 HUB, REAR WHEELHUB, REAR WHEEL
-
209119-10048 BOLTBOLT
-
355310-40B00-13L RIM, REAR WHEEL (8X5.5AT) (SILVER)RIM, REAR WHEEL (8X5.5AT) (SILVER)
-
408316-1010B NUTNUT
-
509160-10142 WASHER, 10X20X2.WASHER, 10X20X2.
-
664120-40B10 DRUM, REAR BRAKEDRUM, REAR BRAKE
-
764130-40B10 COVER, REAR BRAKECOVER, REAR BRAKE
-
864125-40B00 PACKING, REAR BRAKE DRUM COVERPACKING, REAR BRAKE DRUM COVER
-
964231-40B00 PIN, REAR BRAKE ANCHORPIN, REAR BRAKE ANCHOR
-
1008316-1008B NUT, REAR BRAKE ANCHOR PINNUT, REAR BRAKE ANCHOR PIN
-
1164400-08810 SHOE SET, BRAKESHOE SET, BRAKE
-
1264430-14600 SPRINGSPRING
-
1309280-14004 O RING (D:1.9,ID:13.8)O RING (D:1.9,ID:13.8)
-
1464441-40B00 CAM, BRAKECAM, BRAKE
-
1564454-40B00 SPACER, BRAKE CAM LEVERSPACER, BRAKE CAM LEVER
-
1664729-08H00 SEAL, BRAKE DRUM OUTERSEAL, BRAKE DRUM OUTER
-
1709250-11002 PLUG, DRAINPLUG, DRAIN
-
1809282-42001 SEAL, BRAKE DRUM INNERSEAL, BRAKE DRUM INNER
-
1964451-08H00 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
2001550-0630B BOLTBOLT
-
2108316-1006B NUTNUT
-
2264444-40B00 SPRING, BRAKE CAM LEVERSPRING, BRAKE CAM LEVER
-
2364492-08H00 PLATEPLATE
-
2464721-08H00 HOUSING, AXLE BEARINGHOUSING, AXLE BEARING
-
2509262-32022 BEARING (32X65X17)BEARING (32X65X17)
-
2609283-42015 DUST, LDUST, L
-
2709352-50823-00B HOSE, REAR BRAKE BREATHERHOSE, REAR BRAKE BREATHER
-
2809364-06004 JOINT, BREATHER HOSEJOINT, BREATHER HOSE
-
2909407-14403 CLAMP, BRAKE BREATHR HOSECLAMP, BRAKE BREATHR HOSE
-
3064731-08H00 SPACER, AXLE BEARINGSPACER, AXLE BEARING
-
3109103-14033 BOLT, AXLE BEARING HOUSING (14X105)BOLT, AXLE BEARING HOUSING (14X105)
-
3209286-42001 SEAL, DUST, R OUTERSEAL, DUST, R OUTER
-
3364711-08H00 AXLE, REARAXLE, REAR
-
3409141-16004 NUTNUT
-
3504111-4035A COTTER PINCOTTER PIN
-
3609283-42016 SEAL, DUST, R INNERSEAL, DUST, R INNER
-
3764741-08H00 SPACER AXLE OUTERSPACER AXLE OUTER
-
3864871-08H00 NUT, REAR AXLENUT, REAR AXLE
-
3964872-08H00 NUT, REAR AXLE ROCKNUT, REAR AXLE ROCK
-
4054725-18A00 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
4164726-08H00 HOLDER, CAPHOLDER, CAP
-
4261411-08H00 ADJUSTER, CHAIN, RIGHTADJUSTER, CHAIN, RIGHT
-
4361421-08H00 ADJUSTER, CHAIN, LEFTADJUSTER, CHAIN, LEFT
-
4408319-3108A NUTNUT
-
4564511-08H00 SPROCKET, REAR (NT:24)SPROCKET, REAR (NT:24)
-
4608319-3108A NUT, REAR SPROCKETNUT, REAR SPROCKET
-
4764610-08H00 FLANGE, REAR SPROCKET MOUNTINGFLANGE, REAR SPROCKET MOUNTING
-
4808322-0108B WASHERWASHER
-
4965100-40B60 TIRE (AT19X7-8,DI-K549)TIRE (AT19X7-8,DI-K549)
-
5043130-24A00 VALVE ASSY, WHEEL RIMVALVE ASSY, WHEEL RIM
-
5102142-0608B BOLT, RR BRAKE DRUM COVERBOLT, RR BRAKE DRUM COVER
