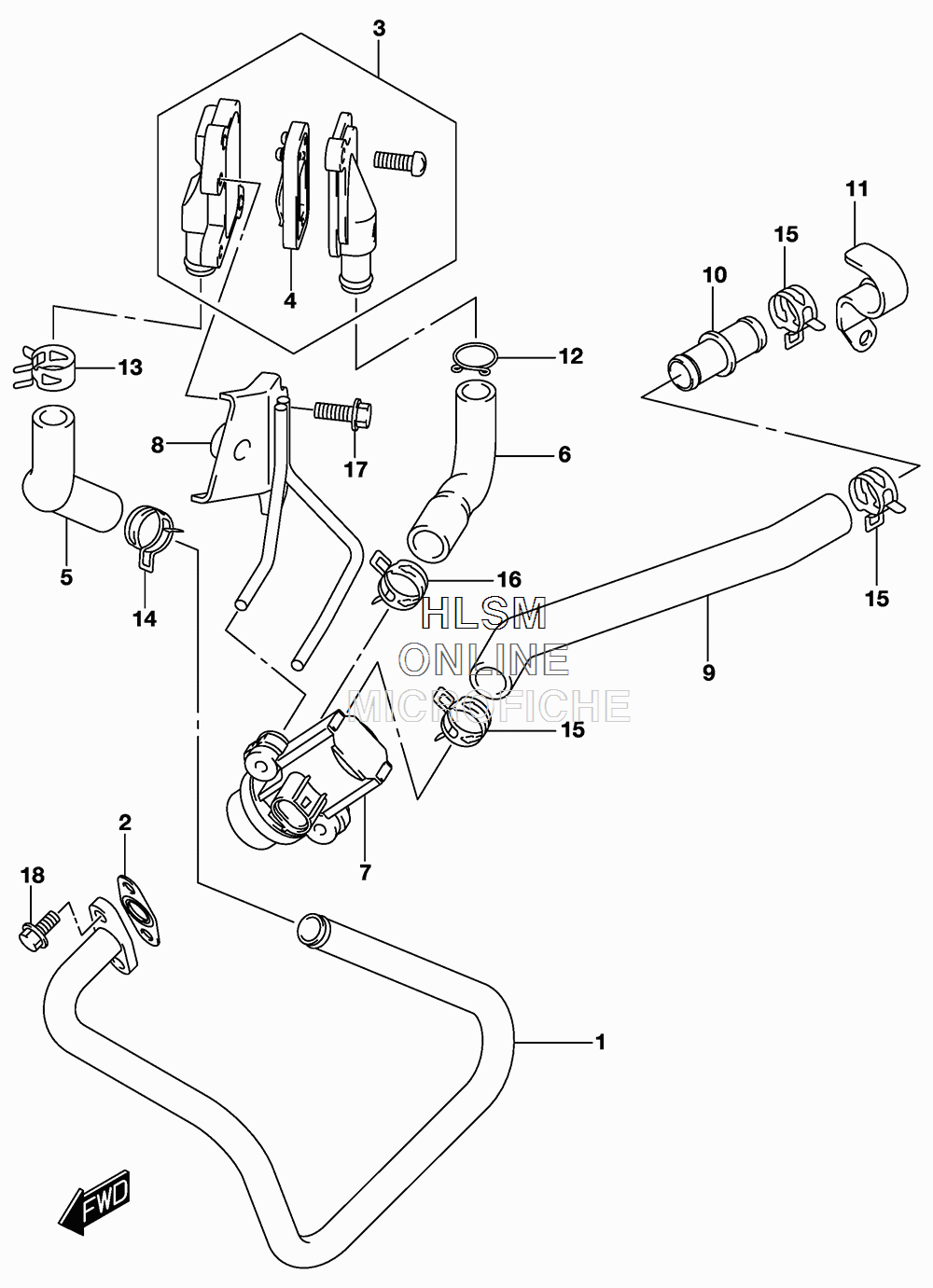

2ND AIR для Suzuki KINGQUAD 400 ASI (CAMO) [LTA400FZL6] - 2016 года выпуска
-
№АртикулНазвание
-
118410-27H00 PIPE COMP, 2ND AIRPIPE COMP, 2ND AIR
-
218441-27H00 GASKET, 2ND AIR PIPEGASKET, 2ND AIR PIPE
-
318450-27H00 VALVE ASSY, 2ND AIRVALVE ASSY, 2ND AIR
-
418450-06G00 ...VALVE ASSY, 2ND AIR REED...VALVE ASSY, 2ND AIR REED
-
518461-27H00 HOSE, 2ND AIR VALVEHOSE, 2ND AIR VALVE
-
618481-27H00 HOSE, 2ND AIR SWITCHING VALVEHOSE, 2ND AIR SWITCHING VALVE
-
718510-29G50 VALVE ASSY, AIR CUTVALVE ASSY, AIR CUT
-
818610-27H00 BRACKET COMP, 2ND AIR VALVEBRACKET COMP, 2ND AIR VALVE
-
918711-27H00 HOSE, 2ND AIR CLEANERHOSE, 2ND AIR CLEANER
-
1018713-39G00 JOINT, 2ND AIR CLEANER HOSEJOINT, 2ND AIR CLEANER HOSE
-
1118715-27H00 GUIDE, 2ND AIR CLEANER HOSEGUIDE, 2ND AIR CLEANER HOSE
-
1209401-15101 CLIPCLIP
-
1309401-16403 CLIPCLIP
-
1409401-16407 CLIPCLIP
-
1509401-16407 CLIPCLIP
-
1609401-16407 CLIPCLIP
-
1701547-0612A BOLTBOLT
-
1801547-0616A BOLTBOLT
