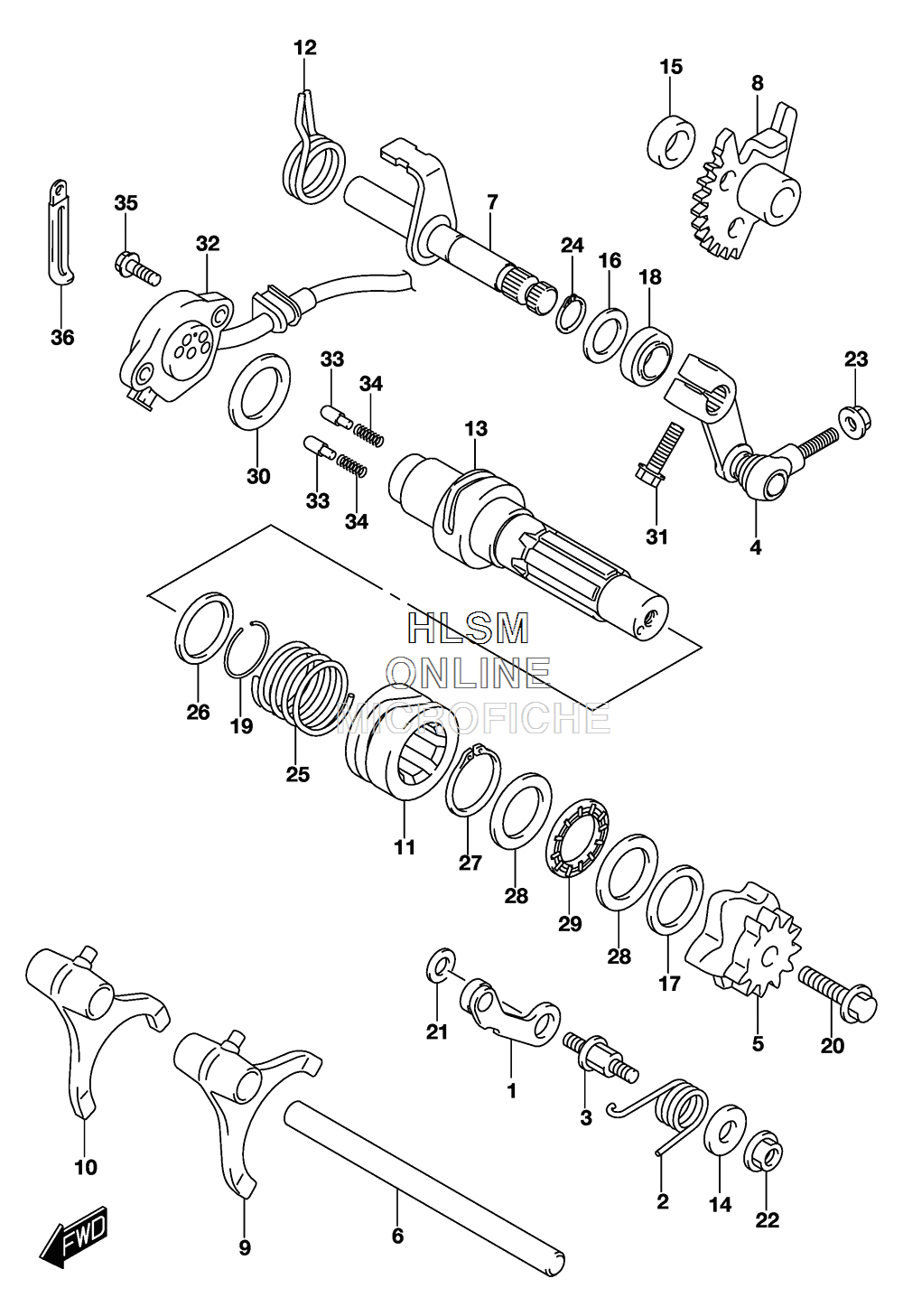

GEAR SHIFTING для Suzuki KINGQUAD 400 ASI (CAMO) [LTA400FZL6] - 2016 года выпуска
-
№АртикулНазвание
-
125350-26D01 STOPPER, SHIFT CAMSTOPPER, SHIFT CAM
-
225355-38F00 SPRING, GEAR SHIFT CAM STOPPERSPRING, GEAR SHIFT CAM STOPPER
-
325356-12C00 SUPPORT, CAM STOPPERSUPPORT, CAM STOPPER
-
425360-11H10 ARM, SELEDTARM, SELEDT
-
525381-38F10 PLATE, GEAR SHIFT CAM STOPPER (NT:12)PLATE, GEAR SHIFT CAM STOPPER (NT:12)
-
625411-18900 SHAFT, SUB T/M GEAR SHIFT FORKSHAFT, SUB T/M GEAR SHIFT FORK
-
725510-27H00 SHAFT, SUB T/M GEAR SHIFTSHAFT, SUB T/M GEAR SHIFT
-
825540-27H00 GEAR, SUB T/M SHAFT (NT:28)GEAR, SUB T/M SHAFT (NT:28)
-
929511-44D00 FORK, SUB T/M GEAR SHIFTFORK, SUB T/M GEAR SHIFT
-
1029511-44D00 FORK, GEAR SHIFT REVERSEFORK, GEAR SHIFT REVERSE
-
1129611-27H00 CAM, SUB T/M GEAR SHIFTCAM, SUB T/M GEAR SHIFT
-
1229613-31G00 SPRING, SHIFT ARM RETURNSPRING, SHIFT ARM RETURN
-
1329620-27H01 SHAFT, SUB T/M GEAR SHIFTSHAFT, SUB T/M GEAR SHIFT
-
1409160-06022 WASHER (6.5X16X2.3)WASHER (6.5X16X2.3)
-
1509180-12100 SPACER (12X22X8.0)SPACER (12X22X8.0)
-
1609181-12167 SHIM (12X20X1)SHIM (12X20X1)
-
1709181-20158 SHIM (20X28X0.5)SHIM (20X28X0.5)
-
1809285-12006 OIL SEAL (12X22X9)OIL SEAL (12X22X9)
-
1909380-25012 CIRCLIPCIRCLIP
-
2001550-0625A BOLTBOLT
-
2108211-06141 WASHERWASHER
-
2208316-1006A NUTNUT
-
2308310-0006A NUTNUT
-
2408331-3112A CIRCLIPCIRCLIP
-
2529612-38F00 SPRING, SUB T/M SHIFT CAMSPRING, SUB T/M SHIFT CAM
-
2609181-25139 SHIM (25X32X1)SHIM (25X32X1)
-
2708331-31259 CIRCLIPCIRCLIP
-
2809181-20251 SHIM (20X34X1)SHIM (20X34X1)
-
2909263-20014 BEARING (20X35X2)BEARING (20X35X2)
-
3009181-25167 SHIM (25X34X1)SHIM (25X34X1)
-
3101550-0620A BOLTBOLT
-
3237720-27H00 BASE ASSY, GEAR SHIFT TERMBASE ASSY, GEAR SHIFT TERM
-
3309209-05011 PIN (5X15.5)PIN (5X15.5)
-
3409440-04010 SPRINGSPRING
-
3507120-0516A BOLTBOLT
-
3609404-06429 CLAMP (L:45)CLAMP (L:45)
