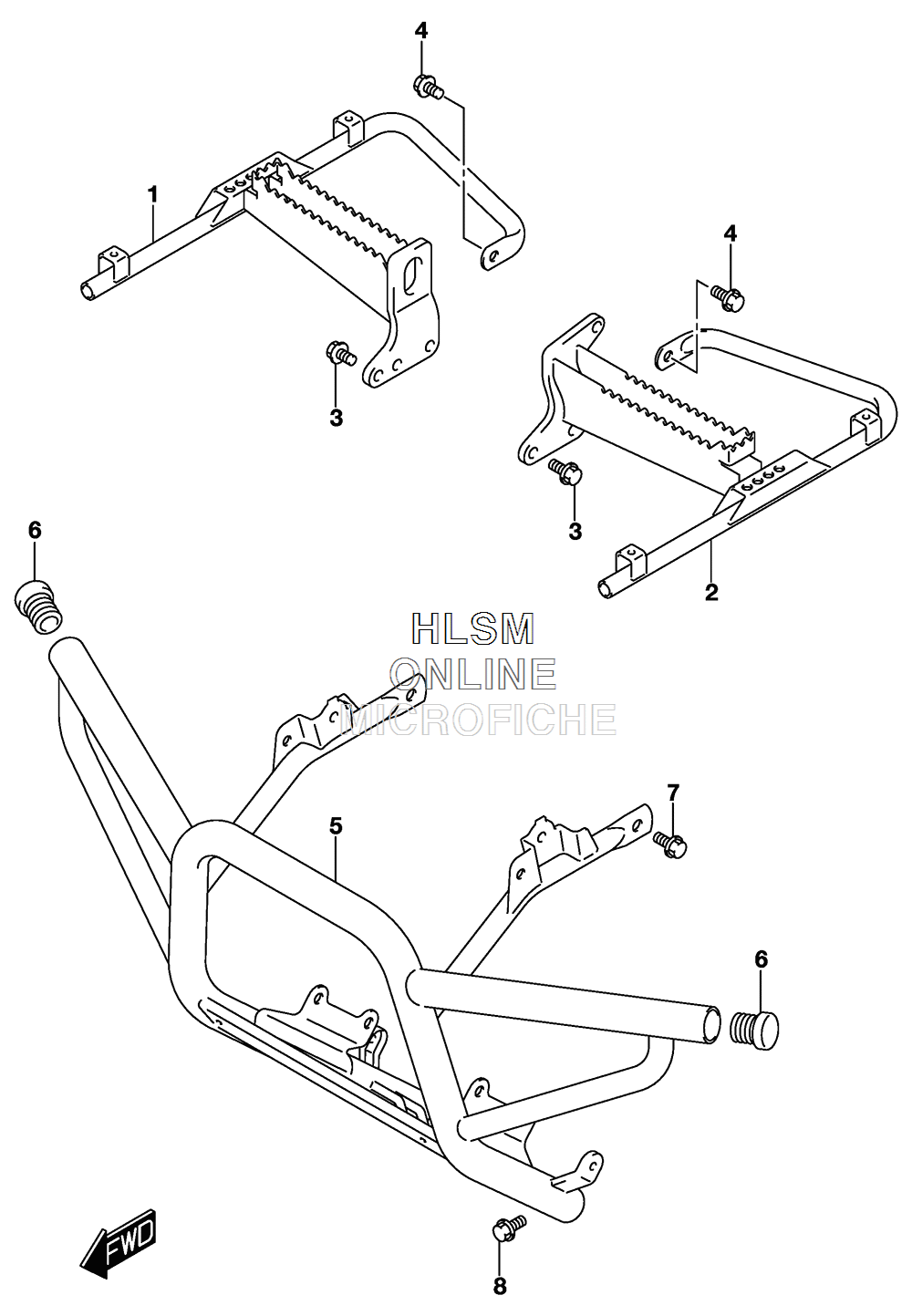

FOOTREST W/ BUMPER для Suzuki KINGQUAD 400 ASI (CAMO) [LTA400FZL6] - 2016 года выпуска
-
№АртикулНазвание
-
143510-27HA0 FOOTREST, RHFOOTREST, RH
-
243520-27HB0 FOOTREST, LHFOOTREST, LH
-
309103-10378 BOLT (10X25)BOLT (10X25)
-
401550-0816A BOLTBOLT
-
546710-27H00-YSN GRIP, FRONT (BLACK)GRIP, FRONT (BLACK)
-
643978-38F00 CAPCAP
-
701550-0816A BOLTBOLT
-
809103-08441 BOLT (8X16)BOLT (8X16)
