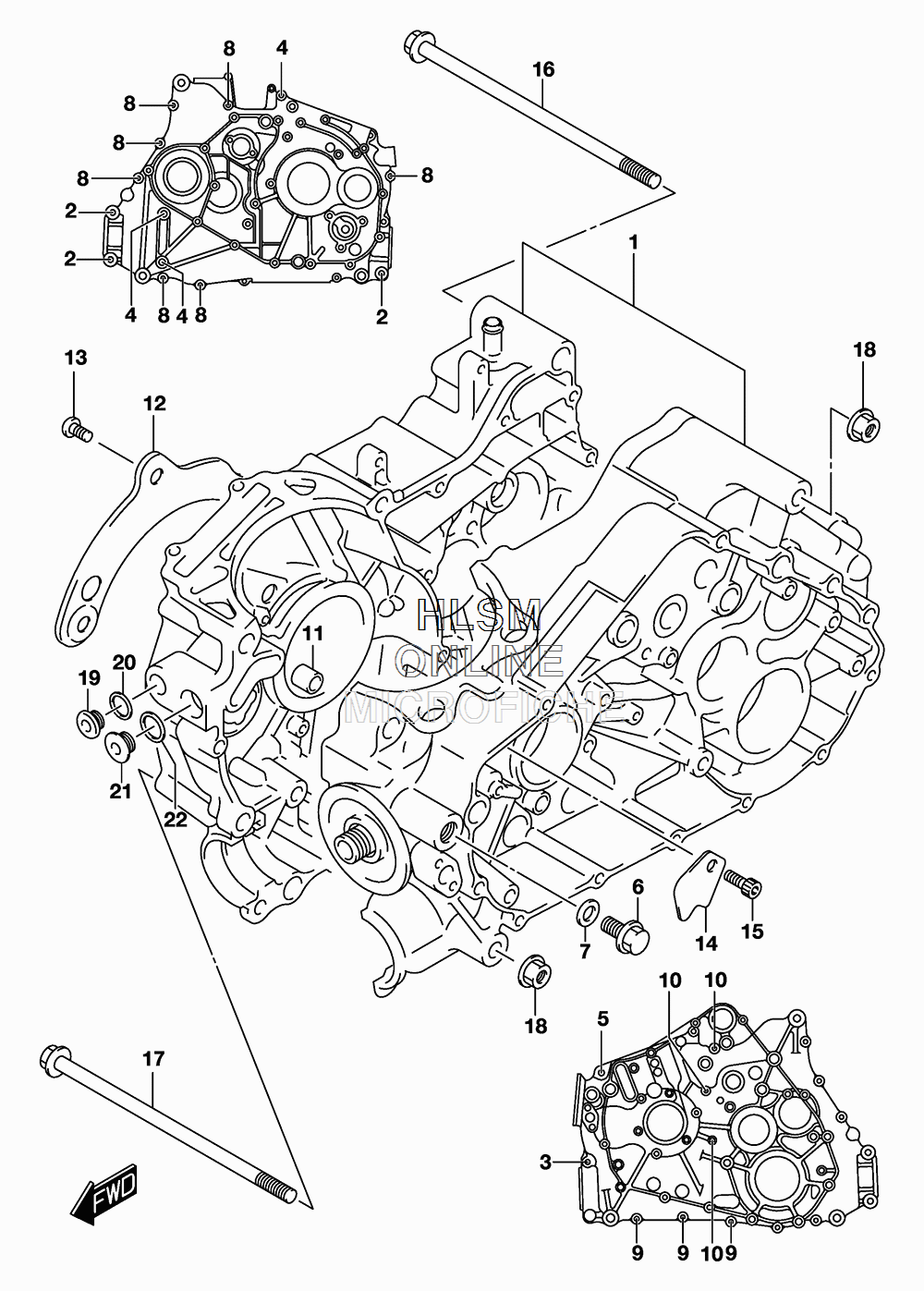

CRANKCASE для Suzuki KINGQUAD 400 ASI (CAMO) [LTA400FZL6] - 2016 года выпуска
-
№АртикулНазвание
-
111302-38812 CRANKCASE SETCRANKCASE SET
-
209103-08081 ...BOLT (8X50)...BOLT (8X50)
-
309103-08081 ...BOLT (8X50)...BOLT (8X50)
-
409103-08300 ...BOLT (8X85)...BOLT (8X85)
-
509103-08217 ...BOLT (8X60)...BOLT (8X60)
-
609247-14015 ...PLUG (14X12)...PLUG (14X12)
-
709168-14002 ...GASKET (13.8X18.8X4.8)...GASKET (13.8X18.8X4.8)
-
801547-0645A ...BOLT...BOLT
-
901547-0645A ...BOLT...BOLT
-
1001547-0670A ...BOLT...BOLT
-
1104211-13189 ...PIN...PIN
-
1211317-38F20 PLATE, OIL GUIDEPLATE, OIL GUIDE
-
1302112-0612A SCREWSCREW
-
1411323-38F00 PLATE, OIL GUIDE LHPLATE, OIL GUIDE LH
-
1502112-0612A SCREWSCREW
-
1609103-10118 BOLT (10X195)BOLT (10X195)
-
1711611-03G00 BOLT (10X180)BOLT (10X180)
-
1809159-10115 NUTNUT
-
1909248-16012 PLUG (16X8)PLUG (16X8)
-
2009168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
2109248-18011 PLUG (18X8)PLUG (18X8)
-
2209168-18009 GASKET (18X24X2)GASKET (18X24X2)
