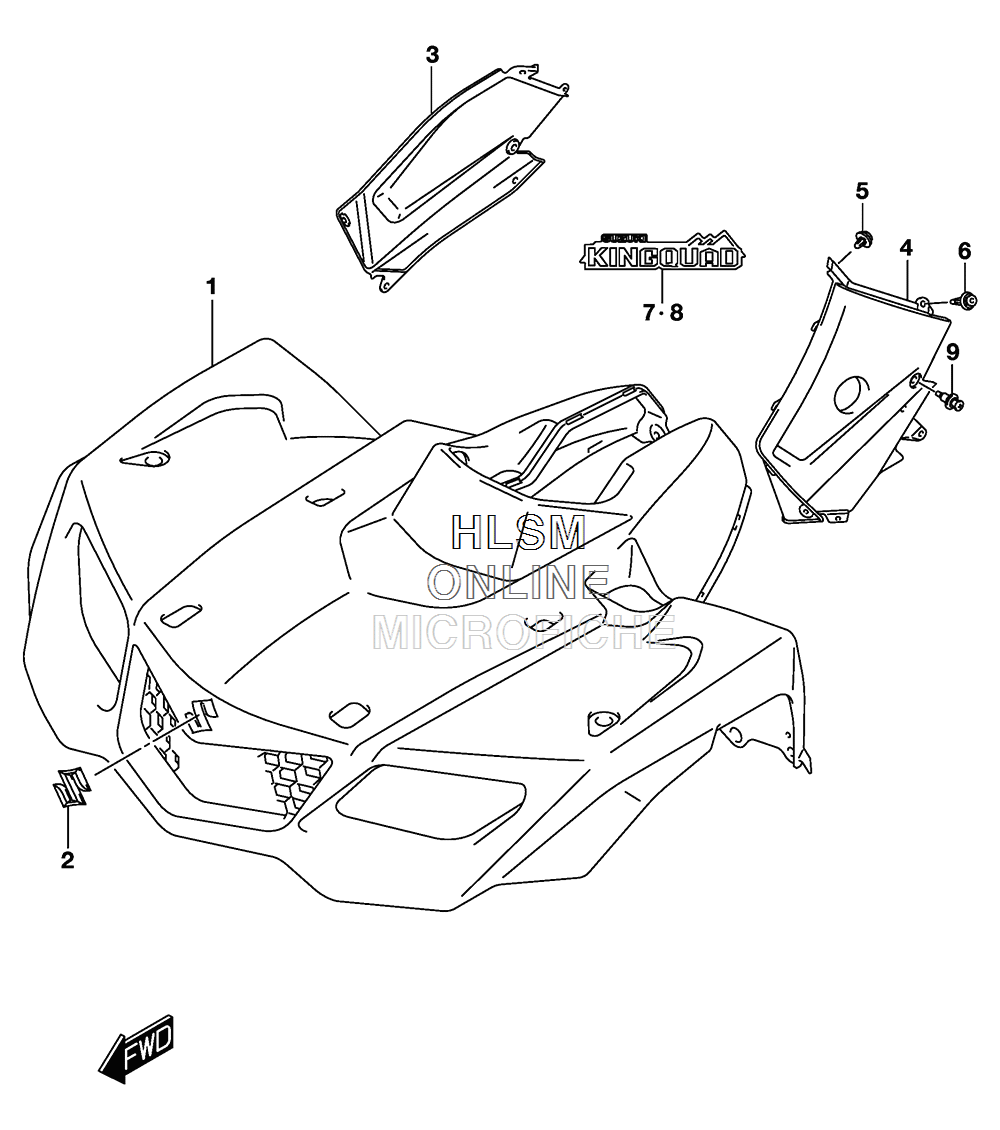

FENDER - FRONT для Suzuki KINGQUAD 400 ASI (CAMO) [LTA400FZL6] - 2016 года выпуска
-
№АртикулНазвание
-
153111-27H11-PHW FENDER, FRONT (CAMOUFLAGE)FENDER, FRONT (CAMOUFLAGE)
-
153111-27H01-YLG FENDER, FRONT (GREEN)FENDER, FRONT (GREEN)
-
268151-03G40 EMBLEM, ''S''EMBLEM, ''S''
-
353112-27H02-291 COVER, SIDE RH (BLACK)COVER, SIDE RH (BLACK)
-
453122-27H11-291 COVER, SIDE LH (BLACK)COVER, SIDE LH (BLACK)
-
509409-07333 CLIPCLIP
-
609409-08335 CLIPCLIP
-
768151-27HA0-EFG EMBLEM, FRONT FENDER, RHEMBLEM, FRONT FENDER, RH
-
868152-27HA0-EFG EMBLEM, FRONT FENDER, LHEMBLEM, FRONT FENDER, LH
-
909409-10306 CLIPCLIP
