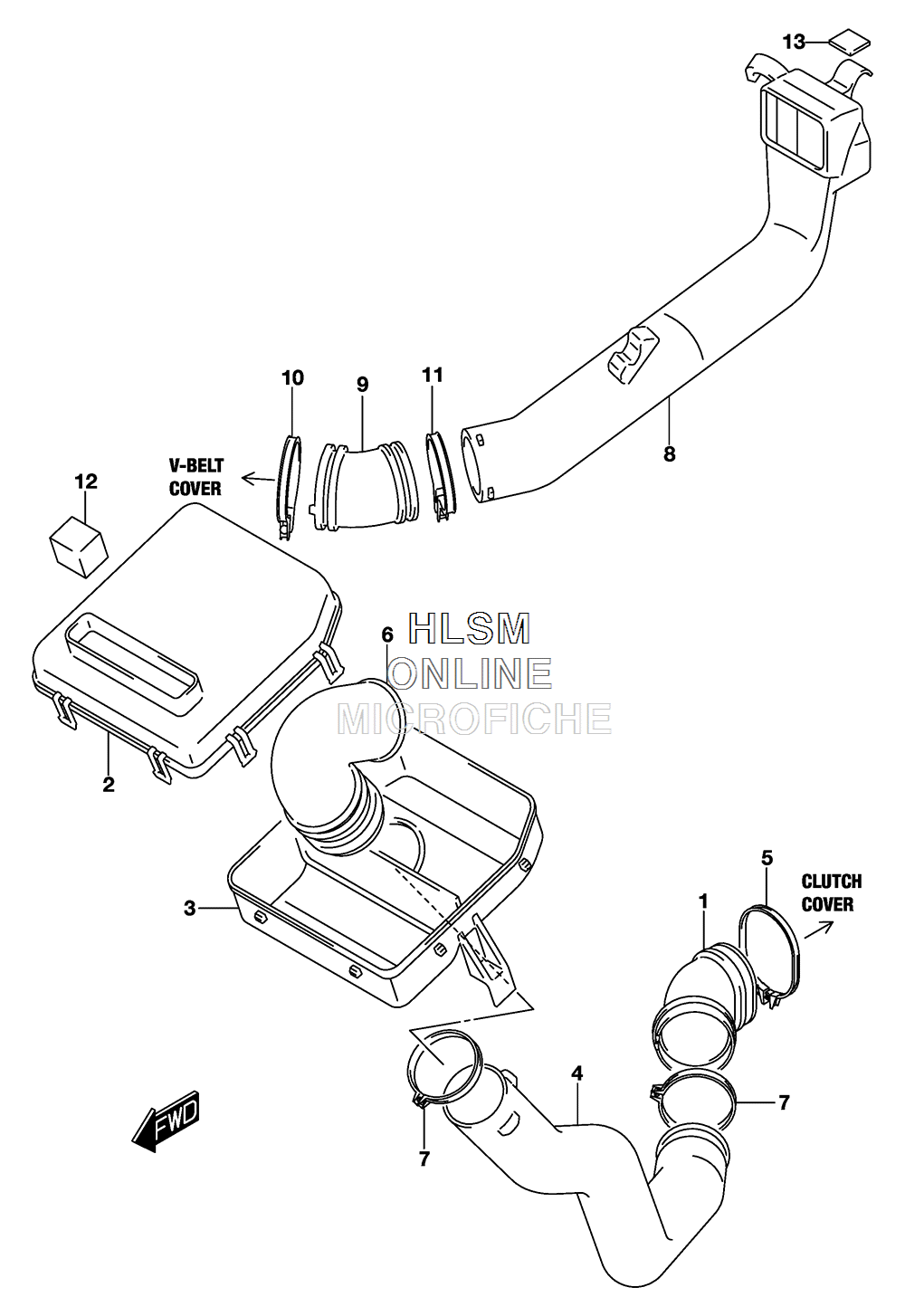

BELT COOLING DUCT для Suzuki KINGQUAD 400 ASI (CAMO) [LTA400FZL6] - 2016 года выпуска
-
№АртикулНазвание
-
111386-38F00 CONNECTOR, COOLING DUCT FRONTCONNECTOR, COOLING DUCT FRONT
-
211393-27H00 BOX, INDUCTION UPPERBOX, INDUCTION UPPER
-
311391-38F00 BOX, INDUCTION LOWERBOX, INDUCTION LOWER
-
411387-38F00 DUCT, BELT COOLING FRONT NO.1DUCT, BELT COOLING FRONT NO.1
-
511389-09F50 CLAMPCLAMP
-
611388-38F00 DUCT, BELT COOLING FRONT NO.2DUCT, BELT COOLING FRONT NO.2
-
709402-76208 CLAMPCLAMP
-
811398-27H00 DUCT, BELT COOLING DUCT REARDUCT, BELT COOLING DUCT REAR
-
911397-38F00 CONNECTOR, COOLING DUCT REARCONNECTOR, COOLING DUCT REAR
-
1011389-09F50 CLAMP BELT CLG DUCT RR NO.1CLAMP BELT CLG DUCT RR NO.1
-
1109402-76208 CLAMPCLAMP
-
1211394-27H00 CUSHION, INDUCTION BOXCUSHION, INDUCTION BOX
-
1311395-27H00 CUSHION, BELT COOLING DUCT RRCUSHION, BELT COOLING DUCT RR
