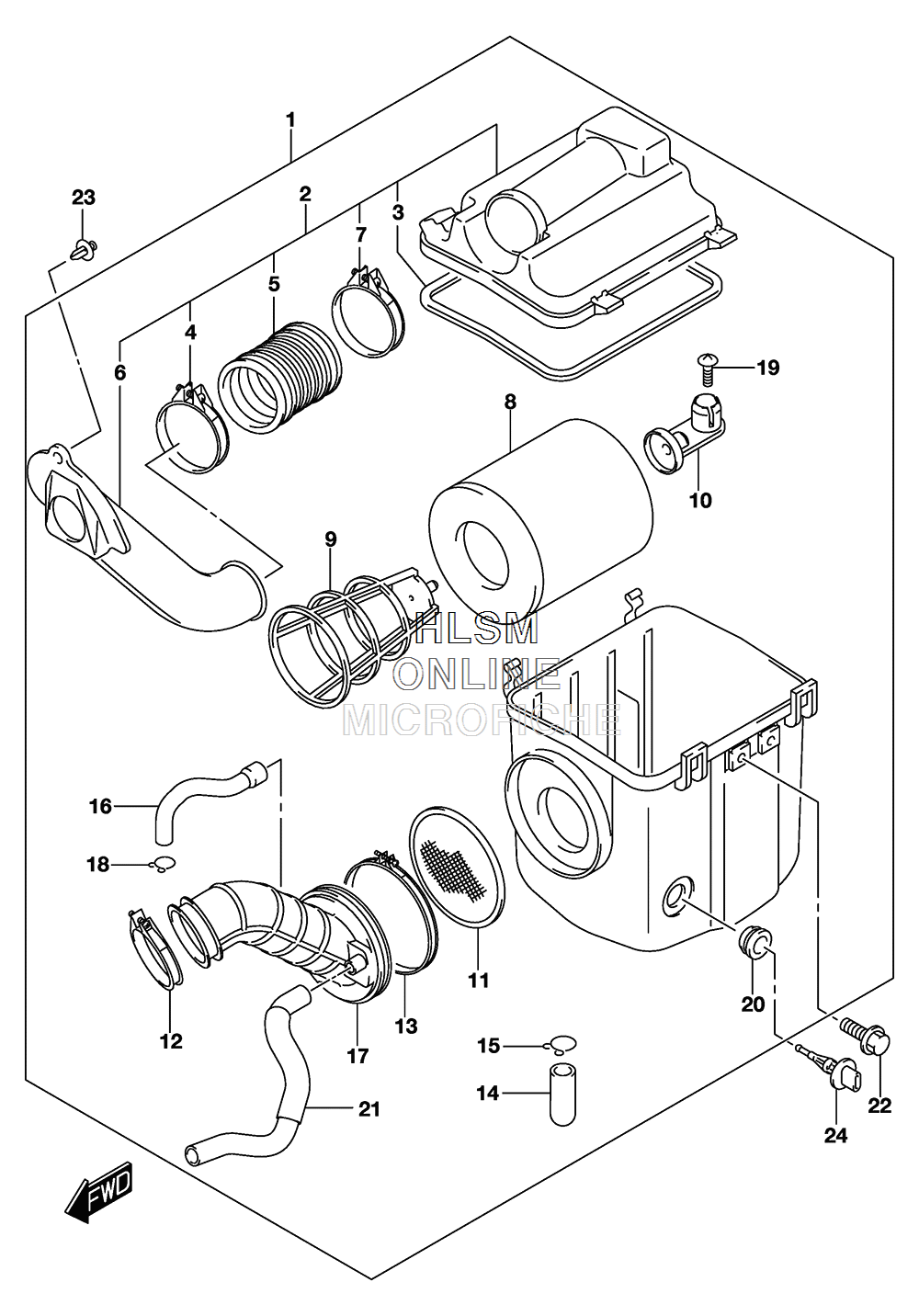

AIR CLEANER для Suzuki KINGQUAD 400 ASI (CAMO) [LTA400FZL6] - 2016 года выпуска
-
№АртикулНазвание
-
113700-27H40 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213890-27H00 ...INLET, AIR CLEANER...INLET, AIR CLEANER
-
313746-03G00 ......GASKET......GASKET
-
413826-38F20 ......CLAMP......CLAMP
-
513891-03G00 ......JOINT, INLET......JOINT, INLET
-
613896-27H00 ......DUCT, INLET......DUCT, INLET
-
709402-60208 ......CLAMP......CLAMP
-
813780-03G00 ...FILTER...FILTER
-
913791-03G00 ...HOLDER...HOLDER
-
1013792-03G00 ...STOPPER, HOLDER...STOPPER, HOLDER
-
1113810-03G00 ...TRAP, FLAME...TRAP, FLAME
-
1213826-27H20 ...CLAMP...CLAMP
-
1313826-38F10 ...CLAMP, OUTLET TUBE...CLAMP, OUTLET TUBE
-
1413878-09F00 ...PLUG, DRAIN...PLUG, DRAIN
-
1509401-14101 ...CLIP...CLIP
-
1613853-27H20 ...TUBE, BREATHER...TUBE, BREATHER
-
1713881-27H40 ...TUBE, OUTLET...TUBE, OUTLET
-
1809401-14101 ...CLIP...CLIP
-
1902142-0616A ...SCREW...SCREW
-
2013655-77E00 ...GROMMET, AIR TEMP SENSOR...GROMMET, AIR TEMP SENSOR
-
2113857-27H40 ...TUBE, 2ND AIR...TUBE, 2ND AIR
-
2209103-06285 BOLT (6X12)BOLT (6X12)
-
2309409-07333 CLIPCLIP
-
2413650-52G00 SENSOR, AIR TEMPSENSOR, AIR TEMP
