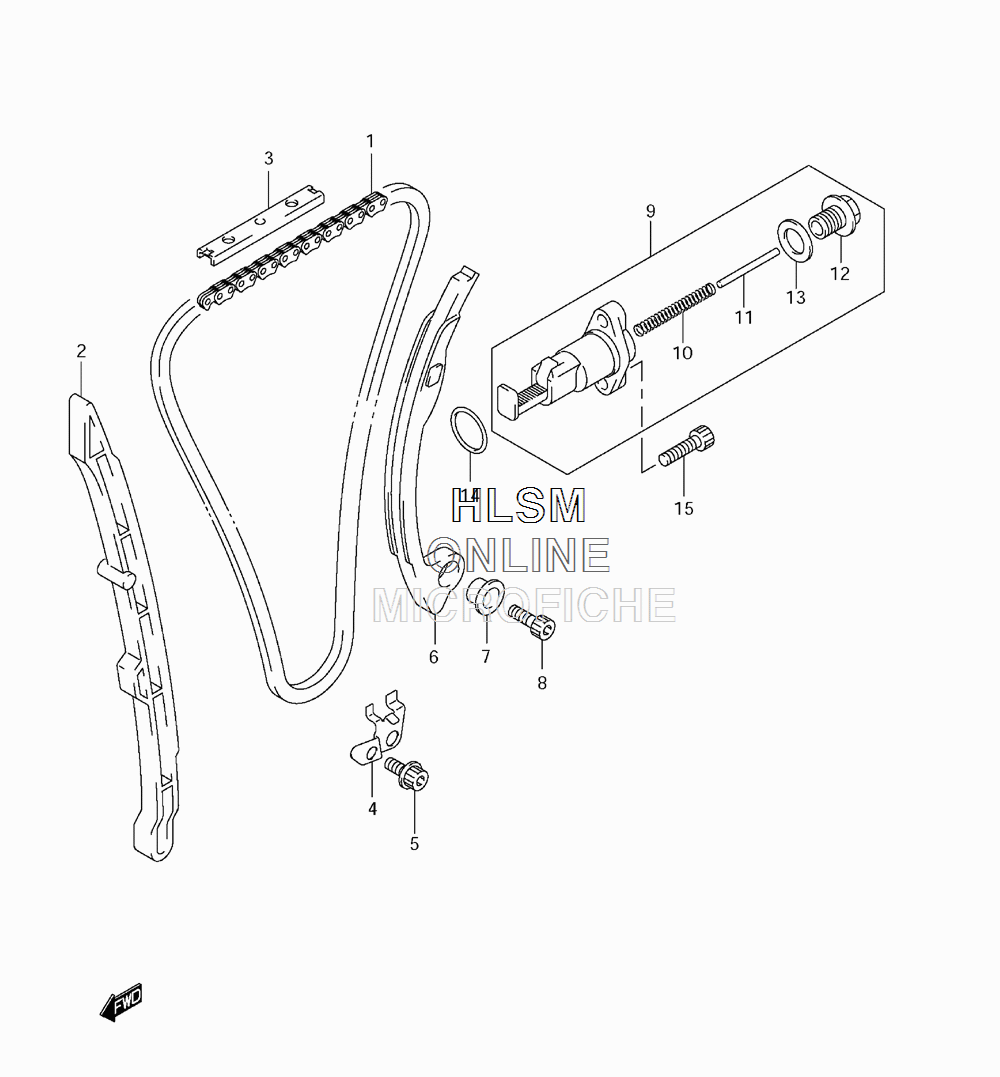

CAM CHAIN ASSY. W/ TENSIONER для Suzuki RM-Z250L3 - 2013 года выпуска
-
№АртикулНазвание
-
112760-10H00 CHAIN, CAM SHAFT DRIVECHAIN, CAM SHAFT DRIVE
-
212771-49H00 GUIDE, CAM CHAIN NO.1GUIDE, CAM CHAIN NO.1
-
312782-35G00 GUIDE, CAM CHAIN NO.2GUIDE, CAM CHAIN NO.2
-
412773-49H00 RETAINER, CAM CHAIN GUIDERETAINER, CAM CHAIN GUIDE
-
507120-0610A BOLTBOLT
-
612811-10H00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
712812-35G00 SPACERSPACER
-
807130-0616A BOLTBOLT
-
912830-10H00 ADJUSTER ASSY, TENSIONERADJUSTER ASSY, TENSIONER
-
1012831-10H00 ...SPRING...SPRING
-
1112836-10H00 ...BAR...BAR
-
1212833-10H00 ...PLUG...PLUG
-
1312837-24F10 ...GASKET...GASKET
-
1409280-19001 O-RING (D:1.9,ID:18.8)O-RING (D:1.9,ID:18.8)
-
1507130-0625A BOLTBOLT
