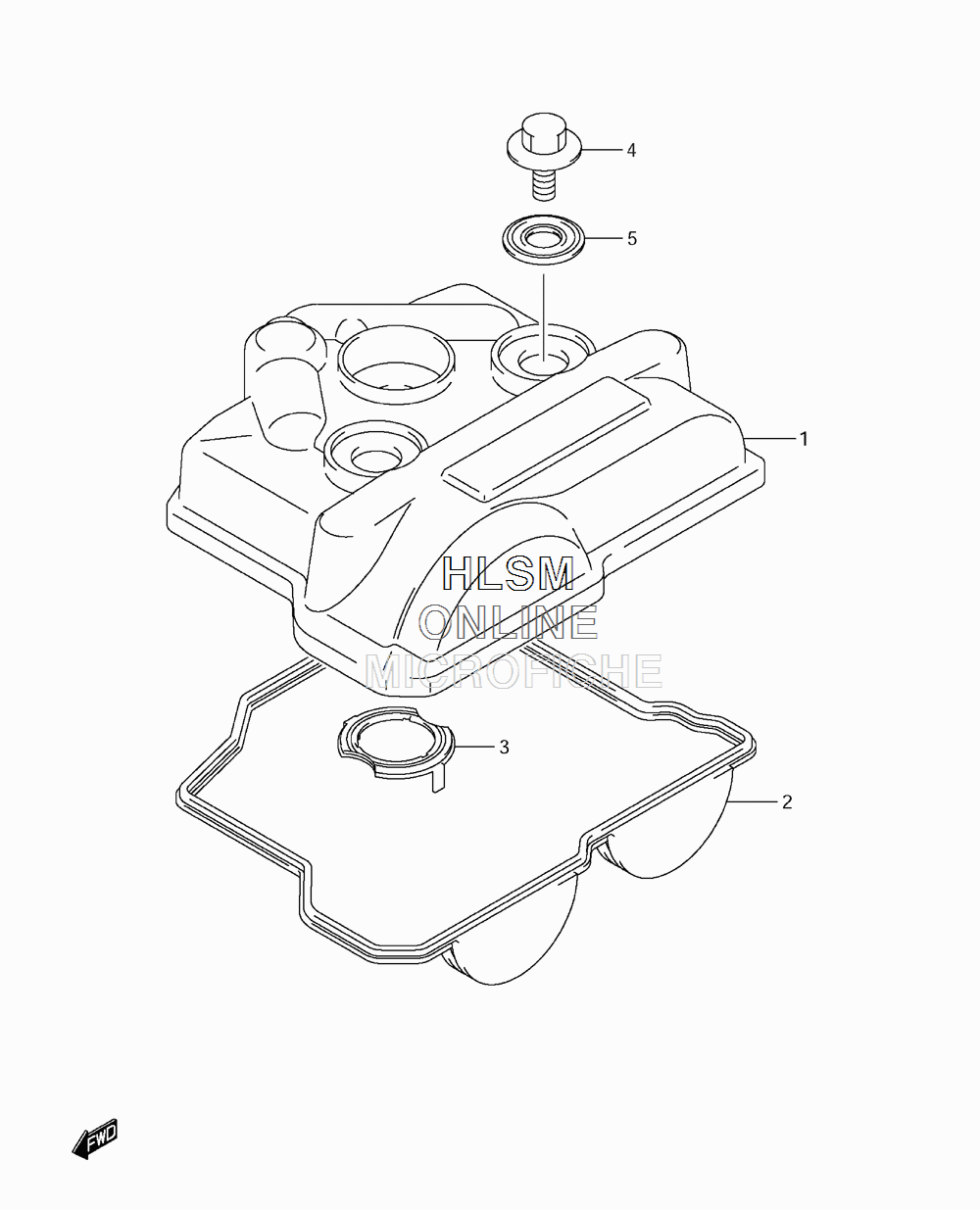

CYLINDER HEAD COVER для Suzuki RM-Z250L3 - 2013 года выпуска
-
№АртикулНазвание
-
111171-49H00 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
211173-49H00 GASKET, HEAD COVER NO.1GASKET, HEAD COVER NO.1
-
311178-49H00 GASKET, HEAD COVER NO.2GASKET, HEAD COVER NO.2
-
411176-49H00 BOLT (7X17.5)BOLT (7X17.5)
-
511191-27E00 WASHER, CYLINDER HEADWASHER, CYLINDER HEAD
