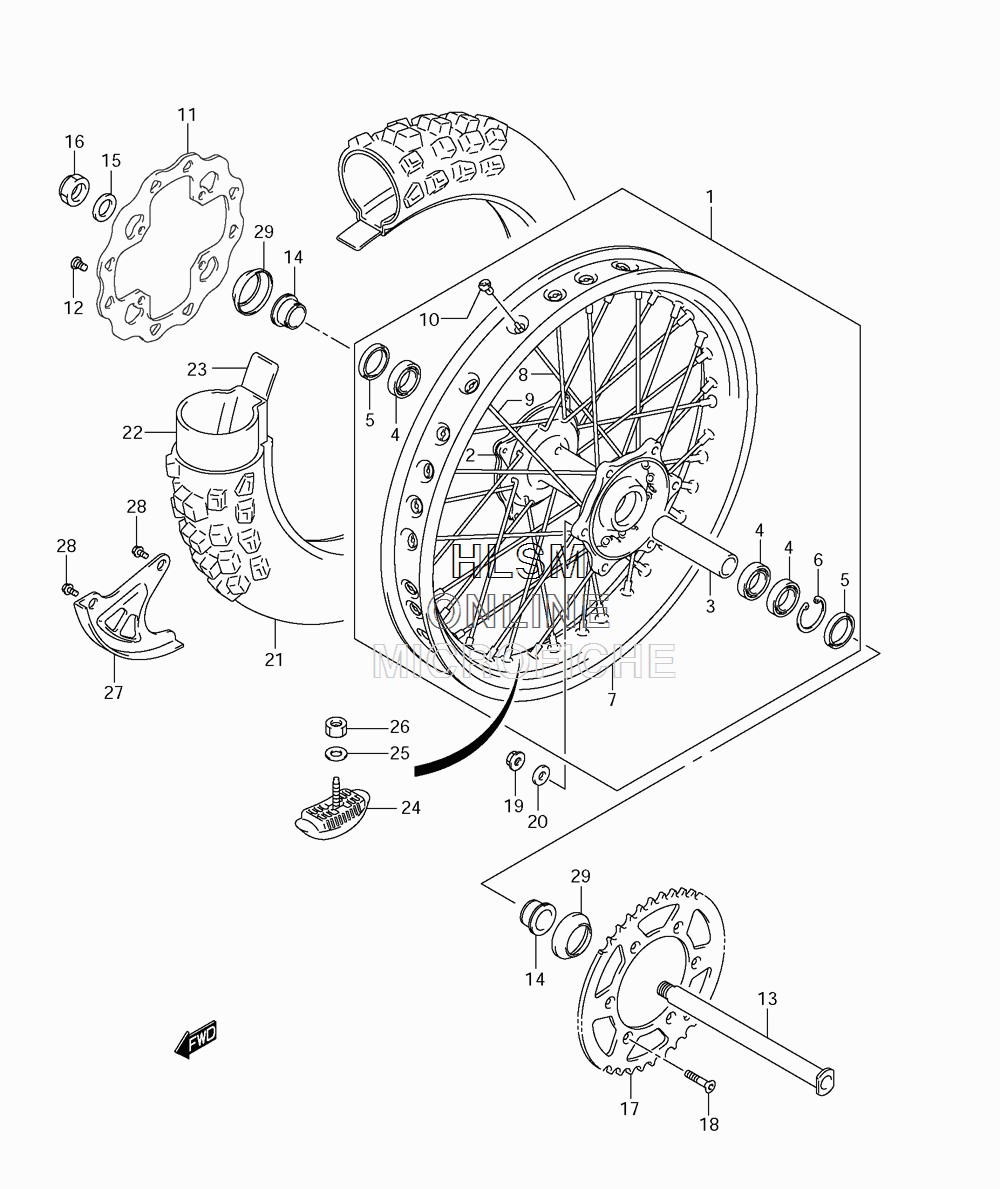

WHEEL - REAR для Suzuki RM-Z250L3 - 2013 года выпуска
-
№АртикулНазвание
-
164100-10H00 WHEEL ASSY, REARWHEEL ASSY, REAR
-
264111-35G20 ...HUB, REAR WHEEL...HUB, REAR WHEEL
-
364731-35G01 ...SPACER, REAR HUB BEARING...SPACER, REAR HUB BEARING
-
409262-25139 ...BEARING (25X42X9)...BEARING (25X42X9)
-
509283-32045 ...OIL SEAL (32X43X7)...OIL SEAL (32X43X7)
-
608331-41429 ...CIRCLIP...CIRCLIP
-
765311-10H00 ...RIM, REAR WHEEL (19X1.85)...RIM, REAR WHEEL (19X1.85)
-
865321-35G10 ...SPOKE, REAR WHEEL INNER...SPOKE, REAR WHEEL INNER
-
965322-35G10 ...SPOKE, REAR WHEEL OUTER...SPOKE, REAR WHEEL OUTER
-
1065325-35G10 ...NIPPLE, WHEEL...NIPPLE, WHEEL
-
1169211-28H10 DISC, REAR BRAKEDISC, REAR BRAKE
-
1209139-08022 SCREW (8X15)SCREW (8X15)
-
1364711-35G10 AXLE, REARAXLE, REAR
-
1464751-28H00 SPACER, REAR AXLESPACER, REAR AXLE
-
1509160-22081 WASHER (22X35X2)WASHER (22X35X2)
-
1609159-22007 NUTNUT
-
1764511-28E00 SPROCKET, REAR (NT:49)SPROCKET, REAR (NT:49)
-
1764511-29F00 SPROCKET, REAR (NT:47)SPROCKET, REAR (NT:47)
-
1764511-36E00 SPROCKET, REAR (NT:50)SPROCKET, REAR (NT:50)
-
1764511-37E00 SPROCKET, REAR (NT:48)SPROCKET, REAR (NT:48)
-
1764511-40261 SPROCKET, REAR (NT:51)SPROCKET, REAR (NT:51)
-
1809120-08017 BOLT (8X28)BOLT (8X28)
-
1909159-08133 NUTNUT
-
2009160-08082 WASHER (8.5X16X1.2)WASHER (8.5X16X1.2)
-
2165110-49H00 TIRE, REAR (100/90-19 57M)TIRE, REAR (100/90-19 57M)
-
2255200-44610 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
2365261-01B30 PROTECTOR, WHEEL INNER TUBEPROTECTOR, WHEEL INNER TUBE
-
2465270-43D00 STOPPER, BEAD (1.85)STOPPER, BEAD (1.85)
-
2508322-0108A WASHERWASHER
-
2608310-0008A NUTNUT
-
2769231-37F12 COVER, REAR DISCCOVER, REAR DISC
-
2809116-06197 BOLT (6X12)BOLT (6X12)
-
2964752-28H00 COVER,REAR AXLE SPACERCOVER,REAR AXLE SPACER
