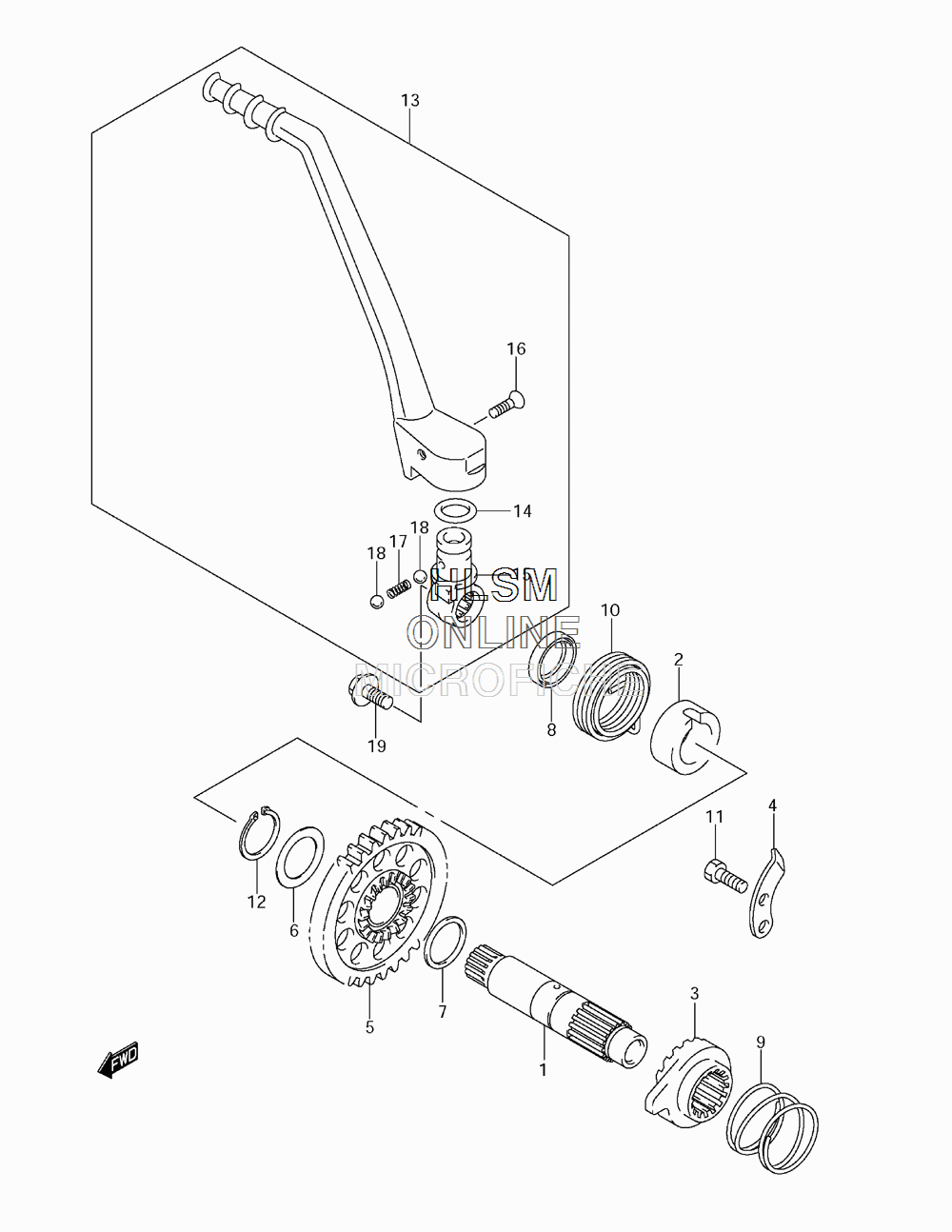

KICK STARTER для Suzuki RM-Z250L3 - 2013 года выпуска
-
№АртикулНазвание
-
126211-10H00 SHAFT, KICK STARTERSHAFT, KICK STARTER
-
226221-10H00 GUIDE, SHAFT SPRINGGUIDE, SHAFT SPRING
-
326231-10H00 STARTER, KICKSTARTER, KICK
-
426232-49H00 GUIDE, KICK STARTERGUIDE, KICK STARTER
-
526240-10H00 GEAR, KICK STARTER DRIVE (NT:28)GEAR, KICK STARTER DRIVE (NT:28)
-
609181-18005 SHIM (18X26X0.5)SHIM (18X26X0.5)
-
709181-18004 SHIM (18X22X1)SHIM (18X22X1)
-
809283-18004 OIL SEAL (18X30X8)OIL SEAL (18X30X8)
-
909440-31002 SPRINGSPRING
-
1009448-45014 SPRINGSPRING
-
1101500-0612A BOLTBOLT
-
1208331-3118A CIRCLIPCIRCLIP
-
1326300-49H00 LEVER ASSY, KICK STARTERLEVER ASSY, KICK STARTER
-
1426313-28E20 ...O RING...O RING
-
1526331-10H00 ...JOINT...JOINT
-
1609127-06024 ...SCREW (6X27.5)...SCREW (6X27.5)
-
1709440-05031 ...SPRING...SPRING
-
1806111-07004 ...BALL...BALL
-
1909103-08522 BOLT (8X14)BOLT (8X14)
