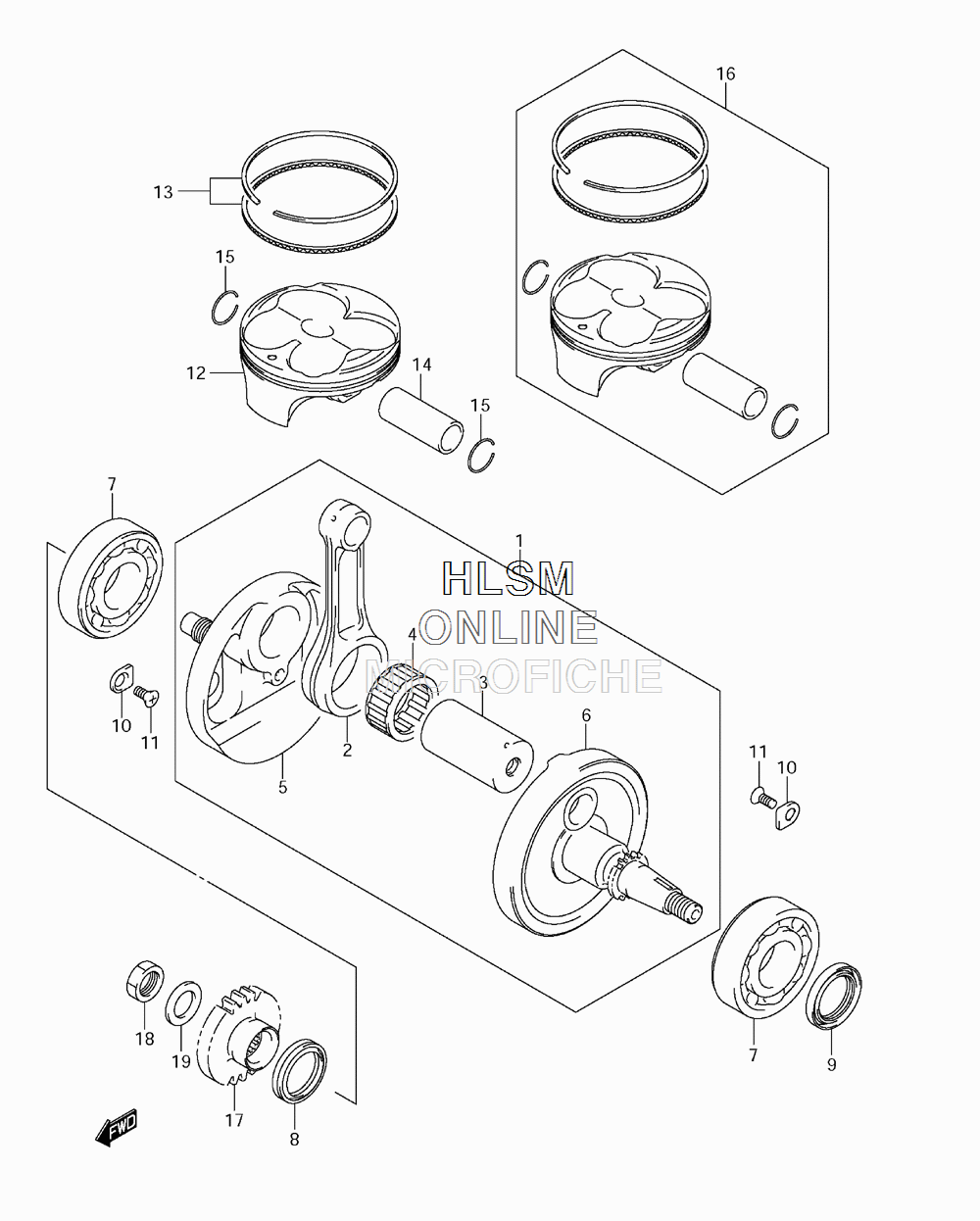

CRANKSHAFT W/ PISTON для Suzuki RM-Z250L3 - 2013 года выпуска
-
№АртикулНазвание
-
112200-49H10 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
212161-49H00-0B0 ...ROD, CONNECTING...ROD, CONNECTING
-
312210-49H00 ...PIN...PIN
-
409263-30060-0B0 ...BEARING (30X38X18)...BEARING (30X38X18)
-
512220-49H00 ...CRANKSHAFT, RIGHT...CRANKSHAFT, RIGHT
-
612261-49H00 ...CRANKSHAFT, LEFT...CRANKSHAFT, LEFT
-
709262-30122 BEARING (30X63X16)BEARING (30X63X16)
-
809283-30061 OIL SEAL (30X40X7)OIL SEAL (30X40X7)
-
909283-30069 OIL SEAL (30X40X6)OIL SEAL (30X40X6)
-
1024741-37F00 RETAINERRETAINER
-
1109126-06011 SCREW (6X12)SCREW (6X12)
-
1212111-49H10-0F0 PISTONPISTON
-
1312140-10810 RING SET, PISTONRING SET, PISTON
-
1412151-49H00 PIN, PISTONPIN, PISTON
-
1509381-16001 CIRCLIPCIRCLIP
-
1612110-49820 PISTON KITPISTON KIT
-
1721111-49H00 GEAR, PRIMARY DRIVE (NT:19)GEAR, PRIMARY DRIVE (NT:19)
-
1809140-16037 NUTNUT
-
1909164-16002 WASHERWASHER
