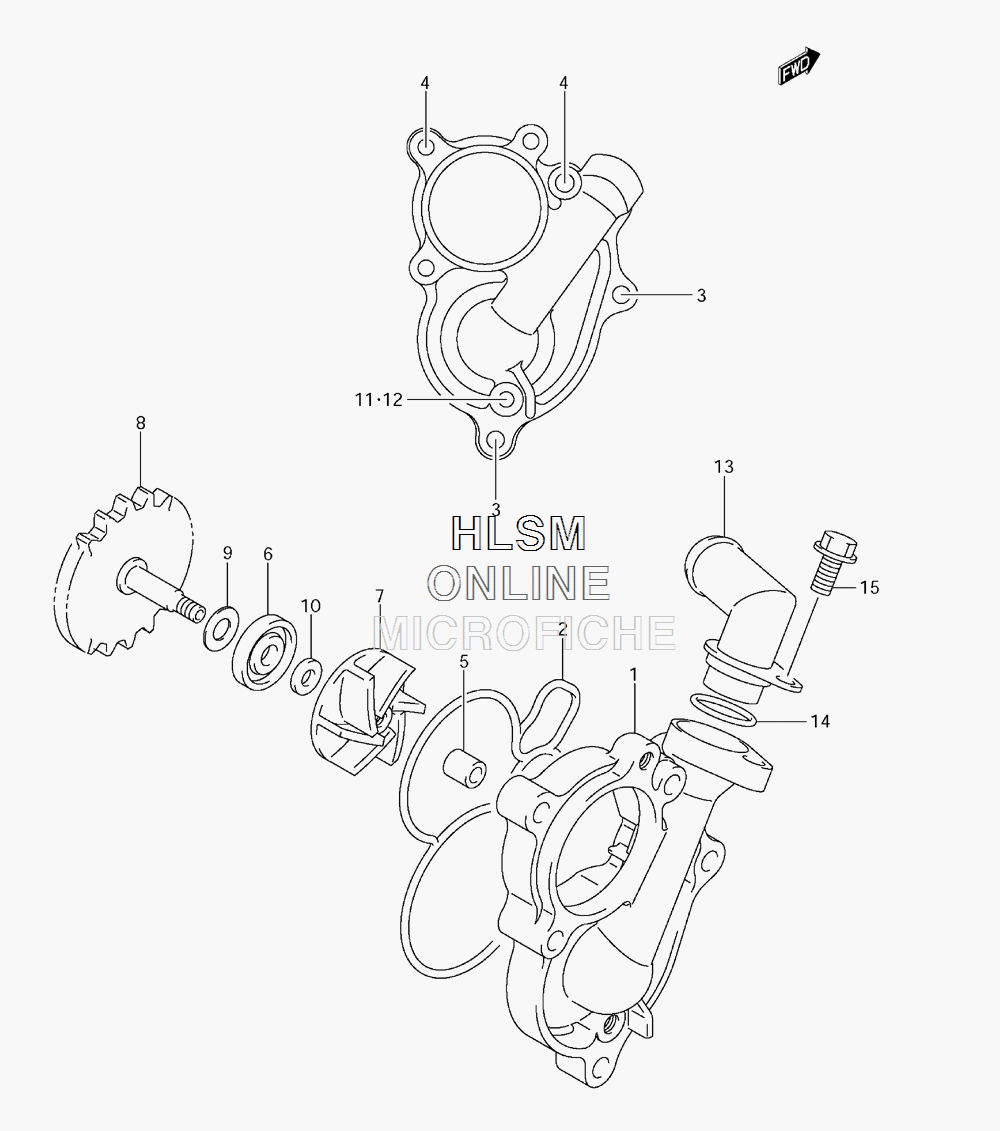

WATER PUMP для Suzuki RM-Z250L3 - 2013 года выпуска
-
№АртикулНазвание
-
117411-10H10 CASE, WATER PUMPCASE, WATER PUMP
-
217431-10H00 O RING, WATER PUMP CASEO RING, WATER PUMP CASE
-
301547-0660A BOLTBOLT
-
401547-0665A BOLTBOLT
-
504211-09109 PINPIN
-
617461-37F00 SEAL, WATER PUMP OILSEAL, WATER PUMP OIL
-
717491-10H00 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
817510-10H10 SHAFT, WATER PUMP (NT:22)SHAFT, WATER PUMP (NT:22)
-
909181-08186 SHIM (8X18X0.5)SHIM (8X18X0.5)
-
1009181-06003 SHIM (6X14X1)SHIM (6X14X1)
-
1107120-0610A BOLTBOLT
-
1209168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1317857-49H00 JOINT, WATER PUMPJOINT, WATER PUMP
-
1409280-17010 O RING (D:2.4,ID:16.8)O RING (D:2.4,ID:16.8)
-
1501547-0612A BOLTBOLT
