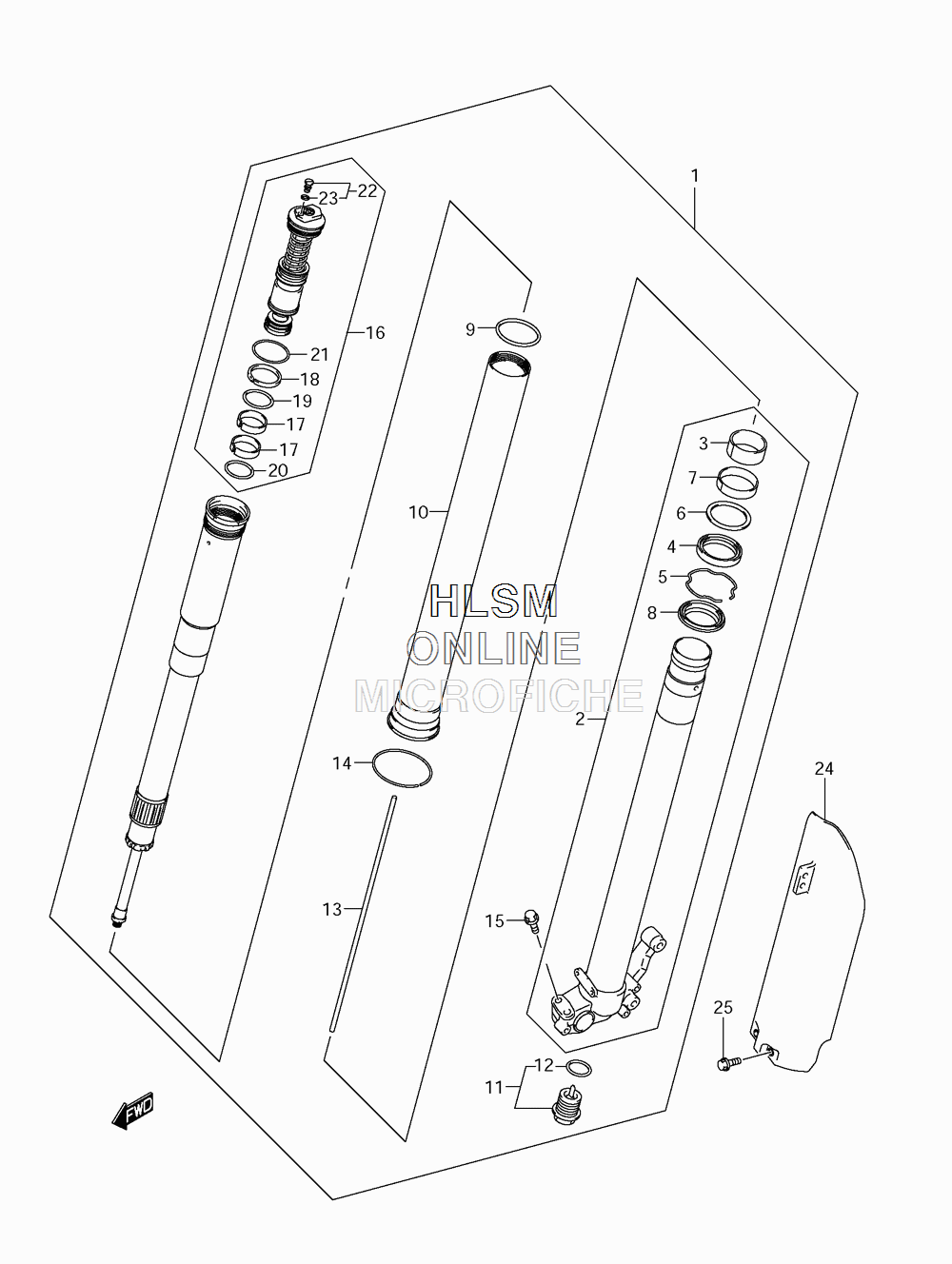

SUSPENSION - FRONT FORK (LEFT HAND) для Suzuki RM-Z250L3 - 2013 года выпуска
-
№АртикулНазвание
-
151104-49H20 DAMPER ASSY, FRONT FORK LEFTDAMPER ASSY, FRONT FORK LEFT
-
251120-49H20 ...TUBE, INNER LEFT...TUBE, INNER LEFT
-
351121-28H30 ......BUSH, SLIDE......BUSH, SLIDE
-
451153-28H30 ......SEAL, OIL......SEAL, OIL
-
551156-28H30 ......RING, OIL SEAL STOPPER......RING, OIL SEAL STOPPER
-
651158-28H30 ......SPACER, SEAL......SPACER, SEAL
-
751167-28H30 ......BUSH, GUIDE......BUSH, GUIDE
-
851173-28H30 ......SEAL, DUST......SEAL, DUST
-
951118-28H30 ...O-RING...O-RING
-
1051130-49H20 ...TUBE, OUTER...TUBE, OUTER
-
1151170-28H30 ...BOLT, CENTER...BOLT, CENTER
-
1262131-27C40 ......O-RING......O-RING
-
1351191-28H30 ...ROD, PUSH...ROD, PUSH
-
1451211-37FC0 ...STOPPER RING...STOPPER RING
-
1551328-37F80 ...BOLT...BOLT
-
1651350-49H20 ...BOLT, FORK...BOLT, FORK
-
1751123-28H30 ......BUSH, SLIDE......BUSH, SLIDE
-
1851124-28H30 ......RING......RING
-
1951174-28H30 ......O-RING......O-RING
-
2051175-28H30 ......O-RING......O-RING
-
2151187-01H00 ......O-RING......O-RING
-
2251357-36F20 ......BOLT,PLUG......BOLT,PLUG
-
2351358-28E30 .........O-RING.........O-RING
-
2451510-28H30 PROTECTOR, FRONT FORK LEFTPROTECTOR, FRONT FORK LEFT
-
2509111-06098 BOLTBOLT
