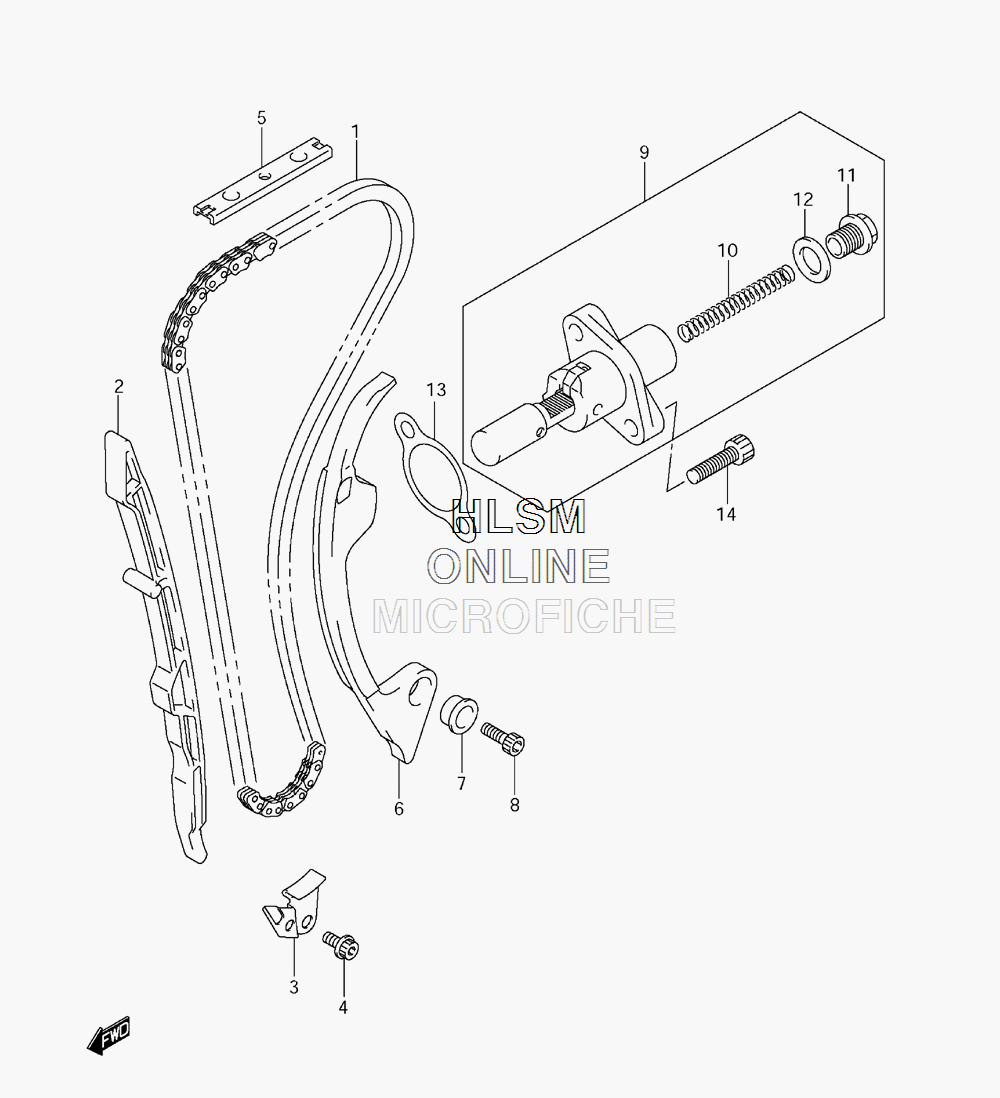

CAM CHAIN ASSY. W/ TENSIONER для Suzuki RM-Z450L3 - 2013 года выпуска
-
№АртикулНазвание
-
112760-35G00 CHAIN, CAM SHAFT DRIVECHAIN, CAM SHAFT DRIVE
-
212771-28H10 GUIDE, CAM CHAIN NO...1GUIDE, CAM CHAIN NO...1
-
312773-28H10 RETAINER, CAM CHAIN GUIDERETAINER, CAM CHAIN GUIDE
-
407120-0610A BOLTBOLT
-
512782-35G00 GUIDE, CAM CHAIN NO...2GUIDE, CAM CHAIN NO...2
-
612811-28H10 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
712812-35G00 SPACERSPACER
-
807130-0616A BOLTBOLT
-
912830-35G20 ADJUSTER ASSY, TENSIONERADJUSTER ASSY, TENSIONER
-
1012831-35F00 ...SPRING...SPRING
-
1112833-05A00 ...PLUG...PLUG
-
1212837-24F10 ...GASKET...GASKET
-
1312837-24A10 GASKET, TENSIONER ADJUSTERGASKET, TENSIONER ADJUSTER
-
1407130-0625A BOLTBOLT
