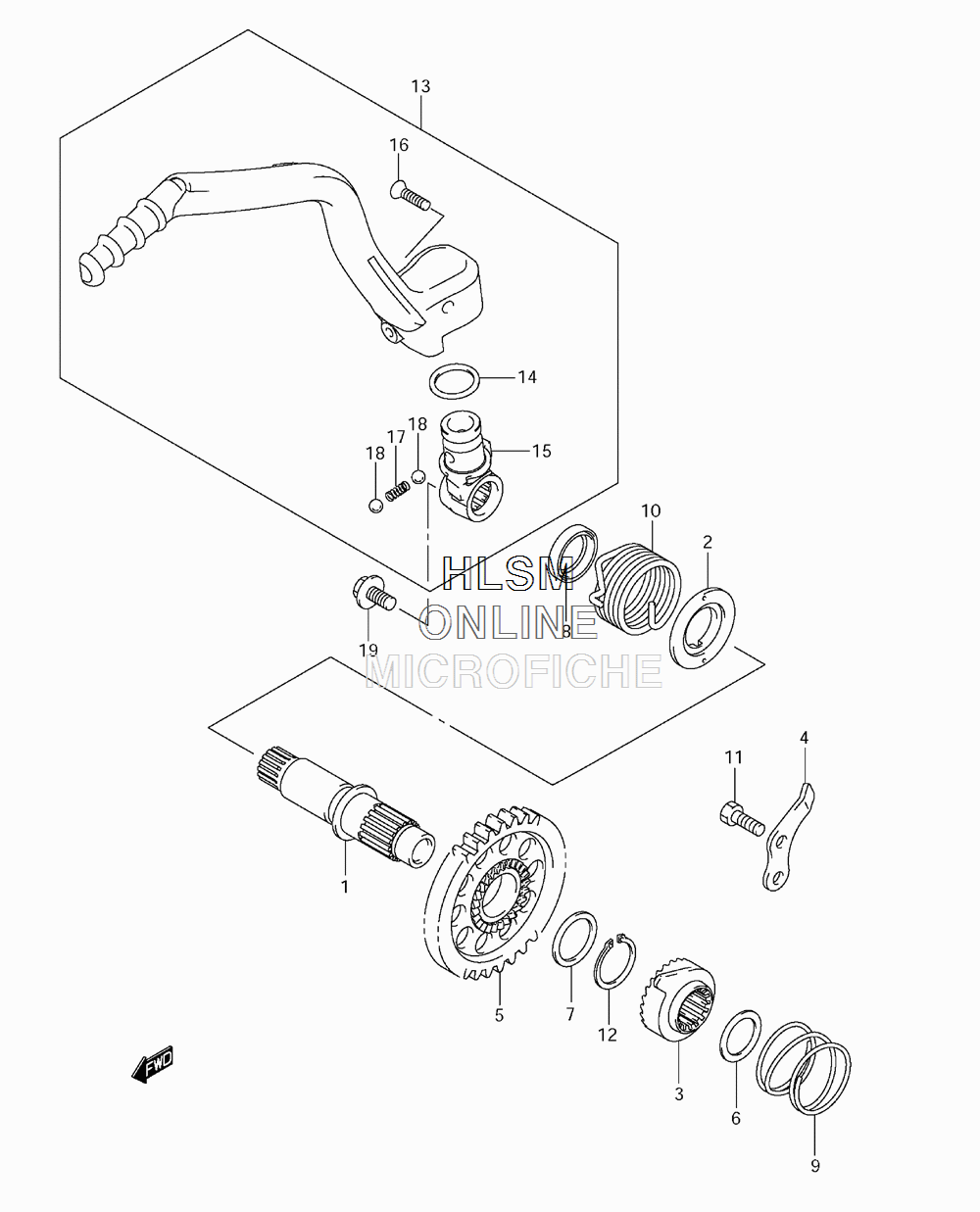

KICK STARTER для Suzuki RM-Z450L3 - 2013 года выпуска
-
№АртикулНазвание
-
126211-28H00 SHAFT, KICK STARTERSHAFT, KICK STARTER
-
226221-35G00 GUIDE, SHAFT SPRINGGUIDE, SHAFT SPRING
-
326231-28H00 STARTER, KICKSTARTER, KICK
-
426232-28H00 GUIDE, KICK STARTERGUIDE, KICK STARTER
-
526240-35G00 GEAR, KICK STARTER DRIVE (NT:32)GEAR, KICK STARTER DRIVE (NT:32)
-
609181-17130 SHIM (17X24X0.5)SHIM (17X24X0.5)
-
709181-20139 SHIM (20X26X1)SHIM (20X26X1)
-
809283-20031 OIL SEAL (20X27X5)OIL SEAL (20X27X5)
-
909440-32002 SPRINGSPRING
-
1009448-38007 SPRINGSPRING
-
1101500-0612A BOLTBOLT
-
1208331-3120A CIRCLIPCIRCLIP
-
1326300-28H20 LEVER ASSY, KICK STARTERLEVER ASSY, KICK STARTER
-
1426313-28E20 ...O-RING...O-RING
-
1526331-28H20 ...JOINT...JOINT
-
1609127-06016 ...SCREW (6X27.5)...SCREW (6X27.5)
-
1709440-05031 ...SPRING...SPRING
-
1806111-07004 ...BALL...BALL
-
1909103-08522 BOLT (8X14)BOLT (8X14)
