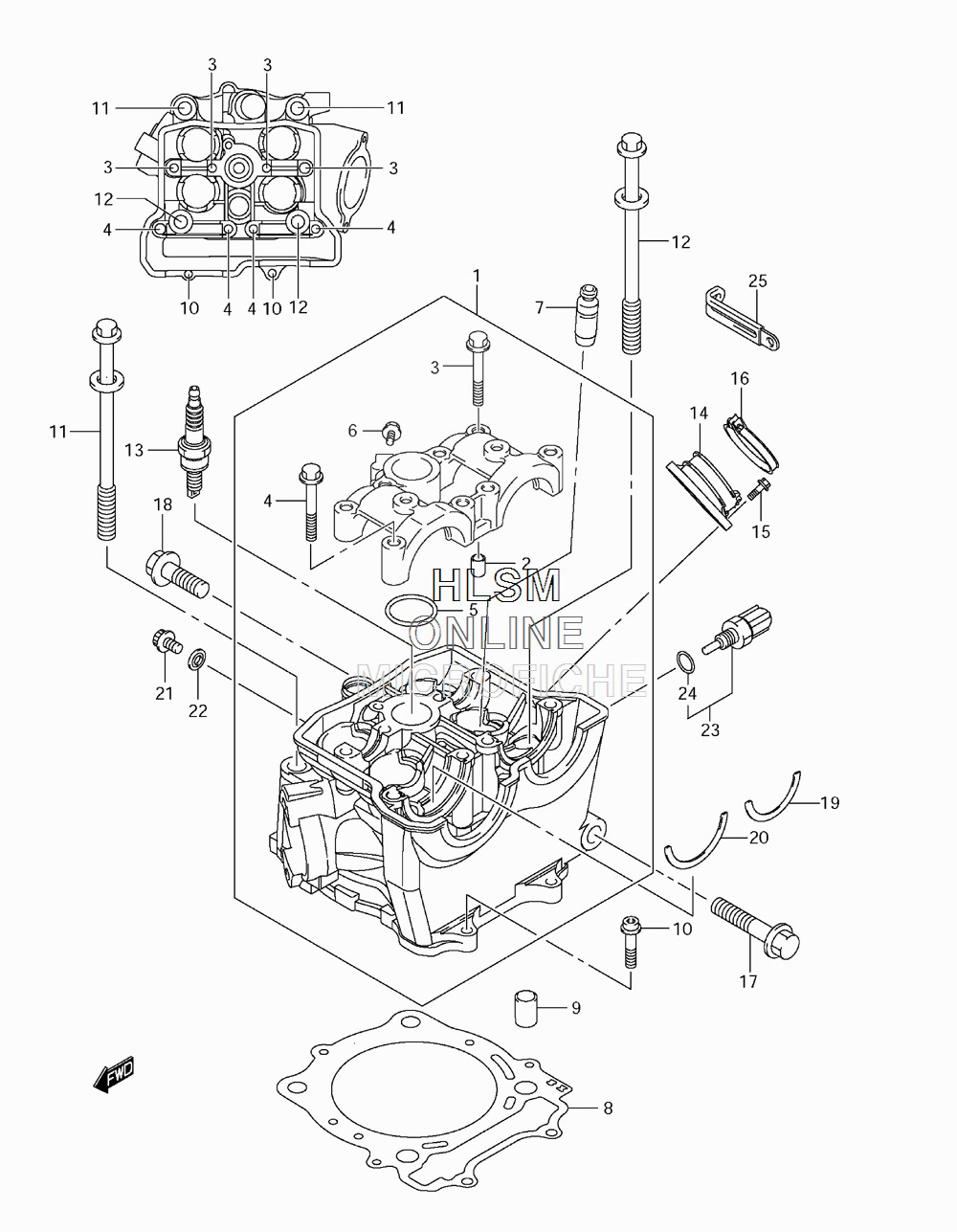

CYLINDER HEAD для Suzuki RM-Z450L3 - 2013 года выпуска
-
№АртикулНазвание
-
111100-28H11 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209206-08001 ...PIN (8X11)...PIN (8X11)
-
309103-06266 ...BOLT (6X40)...BOLT (6X40)
-
409103-06293 ...BOLT (6X45)...BOLT (6X45)
-
509280-26007 ...O RING (D:2.4,ID:25.7)...O RING (D:2.4,ID:25.7)
-
609103-06188 ...BOLT (6X10)...BOLT (6X10)
-
711115-45G70 GUIDE, VALVE (OS.0.3)GUIDE, VALVE (OS.0.3)
-
811141-28H00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
904211-13189 PINPIN
-
1007120-0625A BOLTBOLT
-
1111117-28H00 BOLT, CYLINDER HEAD (L:140)BOLT, CYLINDER HEAD (L:140)
-
1211161-45G00 BOLT, CYLINDER HEAD (L:120)BOLT, CYLINDER HEAD (L:120)
-
1309482-00600 SPARK PLUG (NGK, DIMR8A10)SPARK PLUG (NGK, DIMR8A10)
-
1413101-28H00 PIPE ASSY, INTAKEPIPE ASSY, INTAKE
-
1501547-0620A BOLTBOLT
-
1613170-35G00 CLAMP, INTAKE PIPECLAMP, INTAKE PIPE
-
1709103-10116 BOLT (10X43)BOLT (10X43)
-
1809103-10229 BOLT (10X32)BOLT (10X32)
-
1912749-49H00 C RING, CAM SHAFT INTAKEC RING, CAM SHAFT INTAKE
-
2012749-49H10 C RING, CAM SHAFT EXHAUSTC RING, CAM SHAFT EXHAUST
-
2107120-0610A BOLTBOLT
-
2209168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
2313650-14G00 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
2413655-14G00 ...O RING...O RING
-
2509404-06429 CLAMP (L:45)CLAMP (L:45)
